Robot Vacuum PCBA – Main Control Board with Motor Drivers, Cliff Sensors, LiDAR Interface & Battery Management for Smart Robotic Vacuums
- Full Motion Control – Dual or Tri‑Channel DC Motor Drivers (Max 2A Per Channel) for Left/Right Drive Wheels, Side Brush, and Rolling Brush. Supports PWM Speed Control, Forward/Reverse, and Soft Start/Stop. Optional Mop Pump Driver (Peristaltic or Diaphragm).
- Navigation & Sensor Fusion – Interface for LiDAR (T6/LDS) Via UART, Gyroscope (I²C) for Angular Correction, and Optical/Magnetic Cliff Sensors (4‑6 pcs) for Drop Prevention. Supports IR Wall‑Following and Bump Sensors.
- Comprehensive Cleaning Management – Dustbin Auto‑Emptying Control (Motorized Door + Vacuum Station Communication), Water Tank Flow Control for Mopping (Peristaltic Pump with 2‑5 Levels, or Solenoid Valve), and Filter Cleaning Mechanism.
- Smart Battery & Power – Li‑ion Battery Management (4S–6S, 14.4V–21.6V) with High‑Current Charging (Up to 4A via DC Jack or Docking Contacts). Over‑Charge, Over‑Discharge, Short‑Circuit, and Thermal Protection. Low‑Power Sleep (Charging Base Trickle Mode).
- User Interface & Connectivity – 1‑3 Mechanical Buttons (Power, Home, Spot Clean). Multi‑Color LED Indicator. Optional 0.96″–2.4″ LCD for Status. WiFi (ESP32 or Similar) for App Control, Scheduling, Map Viewing, and Firmware OTA. Buzzer for Alerts.
Product Overview

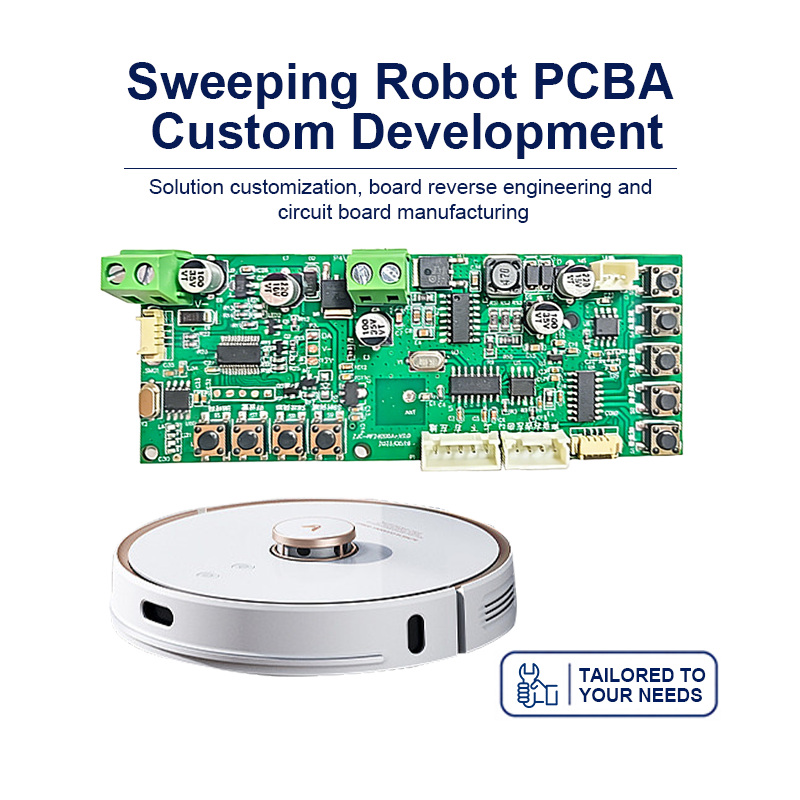

The Robot Vacuum PCBA is a fully integrated main control board designed for modern robotic vacuum cleaners (robot vacs). It consolidates motor drivers (drive wheels, side/rolling brushes), navigation sensors (LiDAR, gyro, cliff, bumper), cleaning actuators (dustbin auto‑empty, water pump for mopping), battery management, and wireless connectivity onto a single compact PCBA. This board enables manufacturers to build smart, autonomous vacuum cleaners with mapping, mopping, obstacle avoidance, and app‑based control.
The global robot vacuum market has grown significantly, driven by increasing adoption of smart home automation and demand for hands‑free floor cleaning. Our PCBA provides a scalable platform for entry‑level to premium robot vacs, supporting both LiDAR navigation (for systematic mapping) and gyro/optical sensor navigation (for budget‑friendly random/patterned cleaning).
