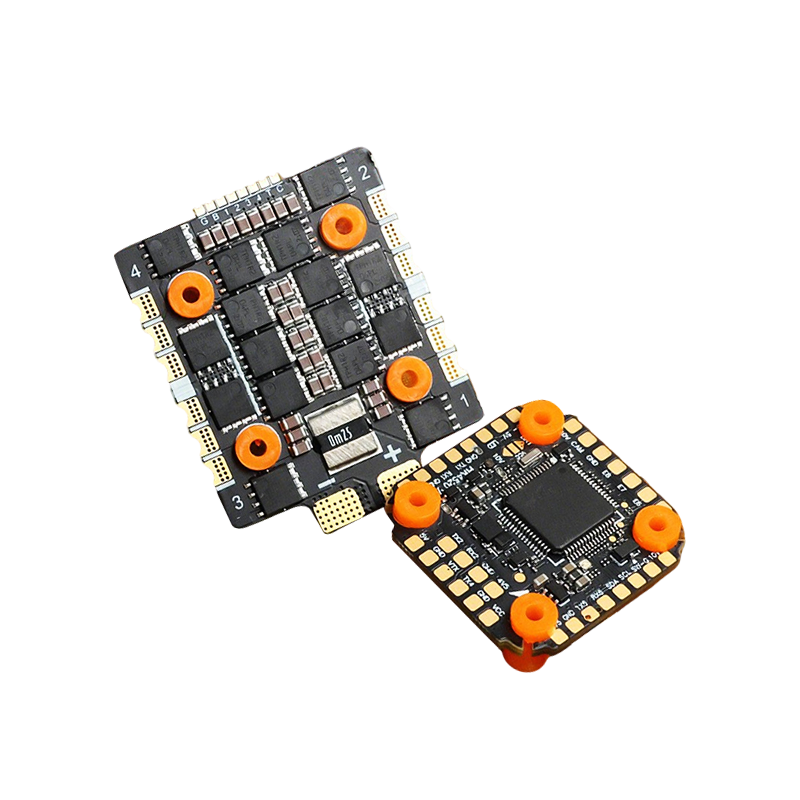

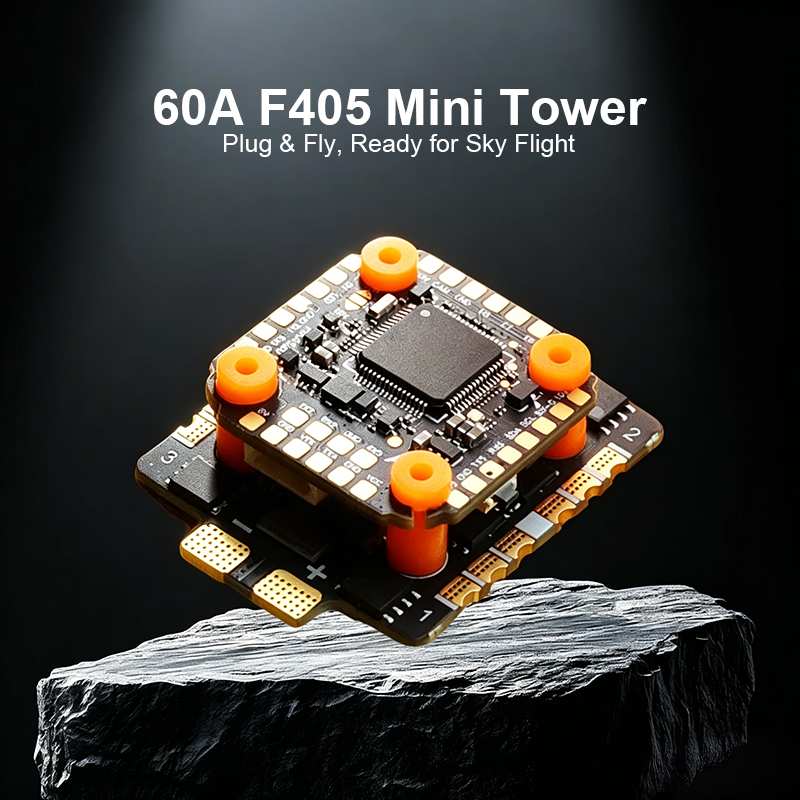

Mini Flight Controller Stack F405 Flight Controller with Integrating 5V/10V Dual BEC 60A 4in1 ESC Brushless ESC for FPV Racing Drones Parts
No.YQHK050
- The Flight Controller Stack Features a High-Performance Processor that Operates at a Frequency of Up to 128MHz, Enabling Real-Time Response to Flight Commands, Which Ensures Unparalleled Flight Stability and Responsiveness.
- The Flight Controller Drone Parts Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The Flight Controller for Drones Integrates a 5V/10V Dual BEC, with the 10V BEC Providing Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation, While the 4in1 ESC Brushless ESC Adopt Imported 40V High Current Resistance MOS, Offering a Long Lifespan and Strong Load Capacity.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to Us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

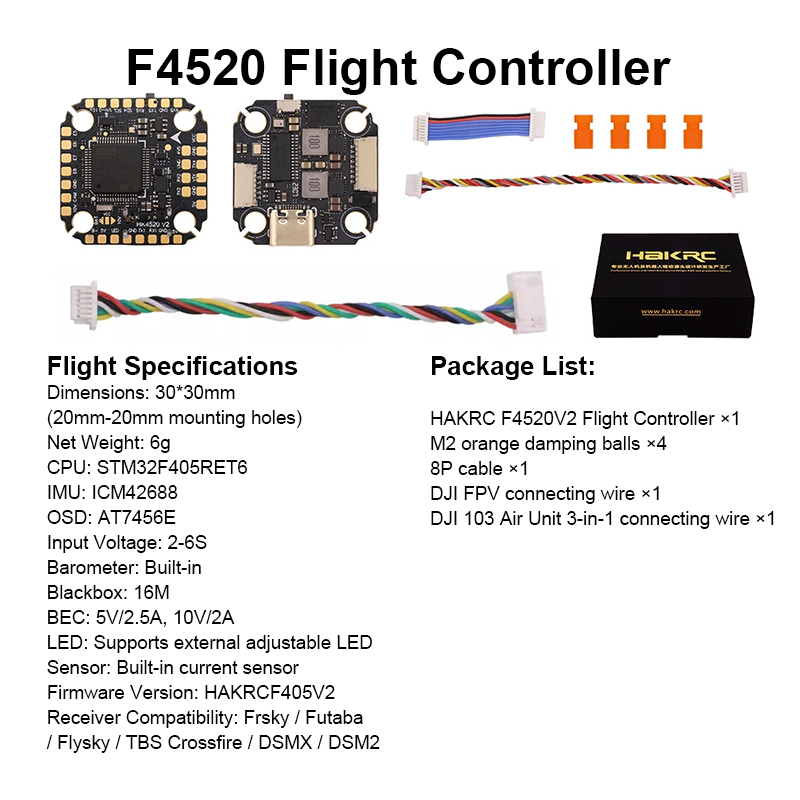

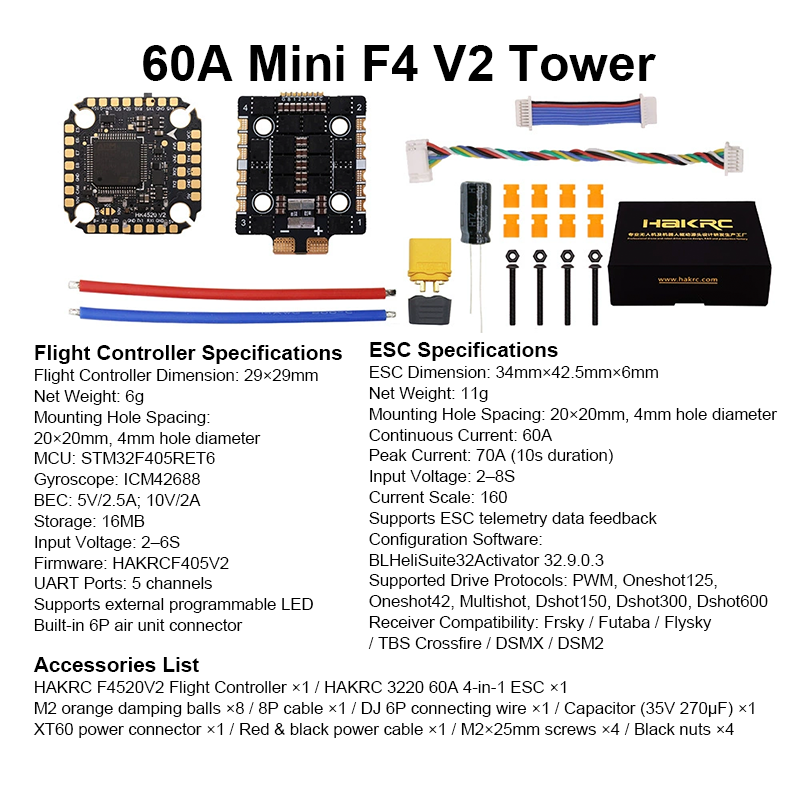

F405 Flight Controller Parameters：
Size: 30*30mm
Mounting Holes: 20*20mm
Weight: 6g
CPU: STM32F405RET6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/2.5A; 10V/2A
Input Voltage: 2-6S Lipo
Flight Controller Firmware: F405V2

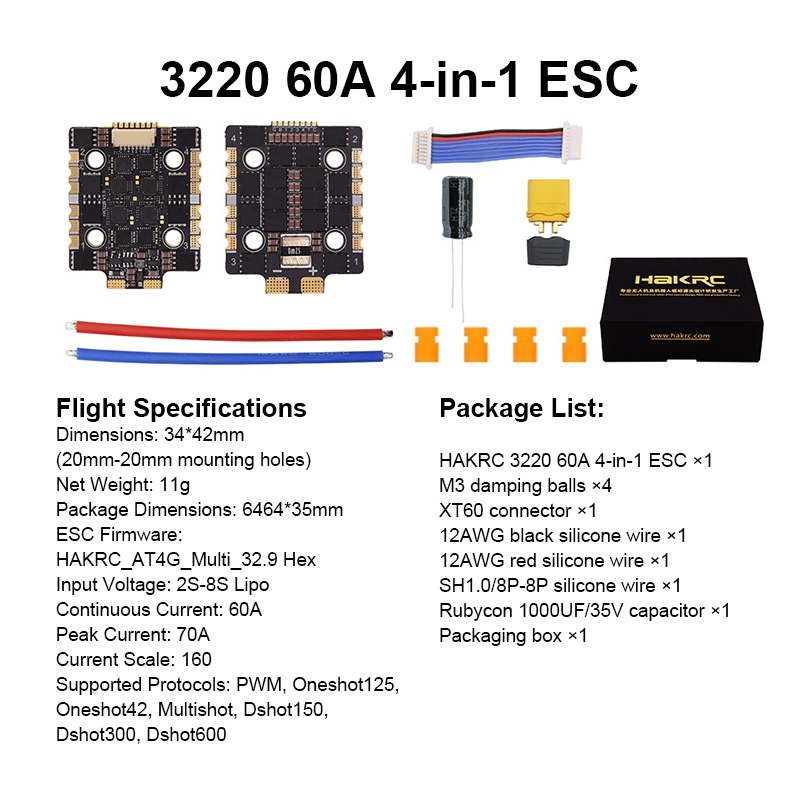

60A 4in1 ESC Parameters：
Size: 34*42mm
Mounting Holes: 20*20mm
Weight: 11g
Input Voltage: 2-8S Lipo
Continuous Current: 60A
Peak Current: 70A
Brushless ESC Firmware: AT4G_Multi_32.9 Hex
