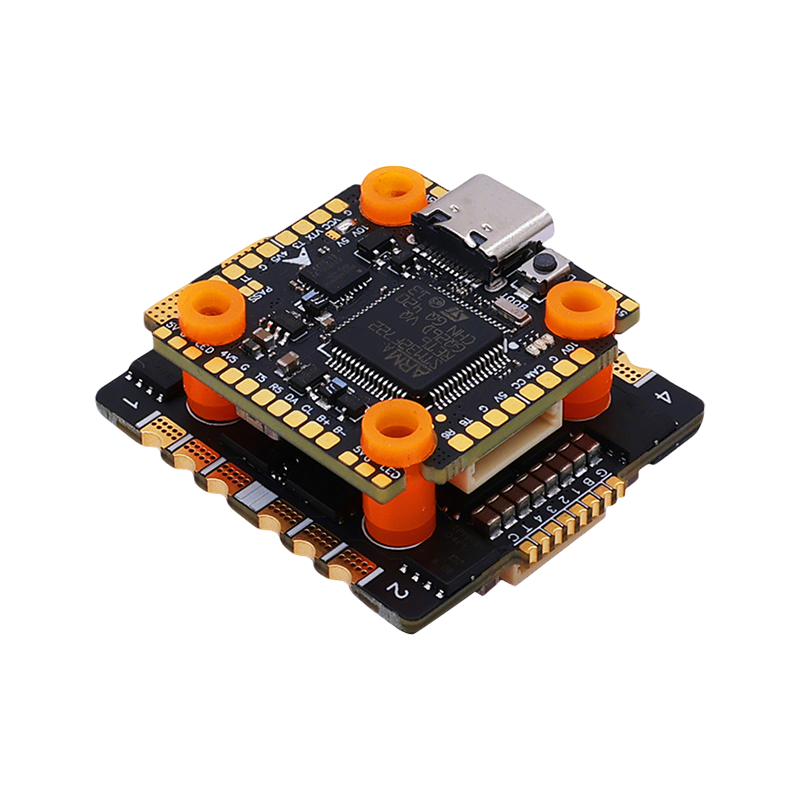

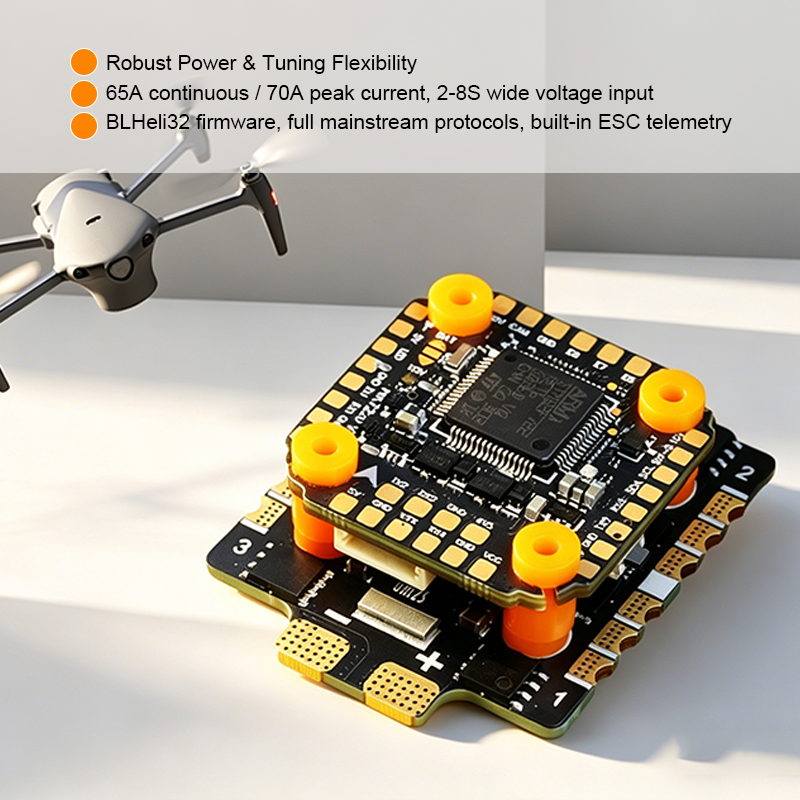

Mini Flight Controller Stack 65A 8S 4in1 ESC F7220 Flight Controller with Integrating 5V/10V Dual BEC Flight Controller Drone Parts for FPV Racing Drones Freestyle
No.YQHK042
- High Performance Flight Controller Stack Features a High-Performance Processor with an Operating Frequency of Up to 128MHz, Enabling Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- The Flight Controller for Drone Integrating 5V/10V Dual BEC, 10VBEC can Provide Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
- The Flight Controller Drone Parts Adopts Imported 40V High Current Resistance MOS, Offering a Long Lifespan and Strong Load Capacity.
- High Performance Flight Controller Stack Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
(0 Reviews)
0 Sold

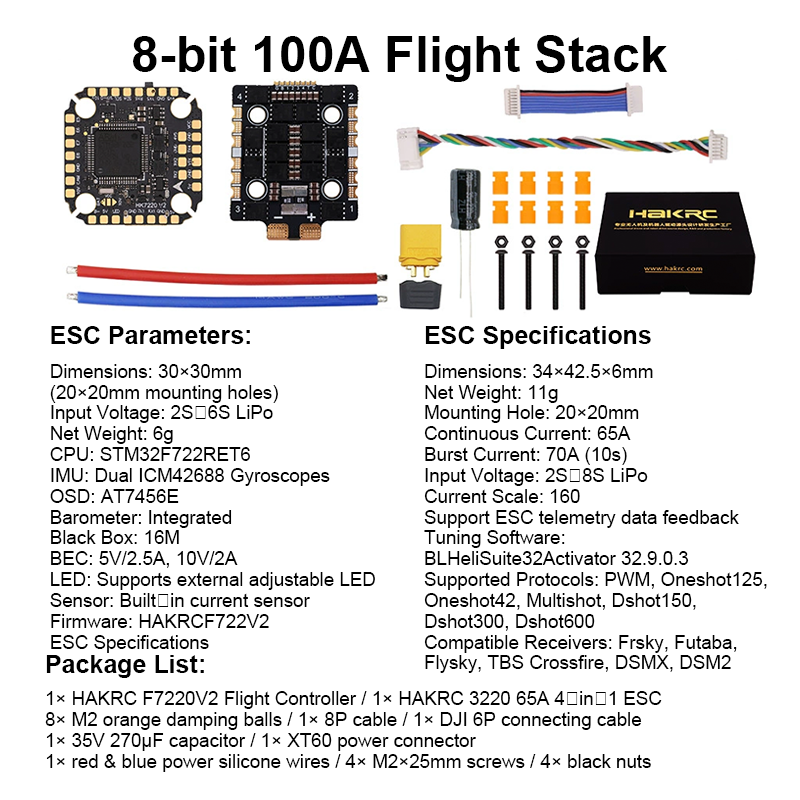

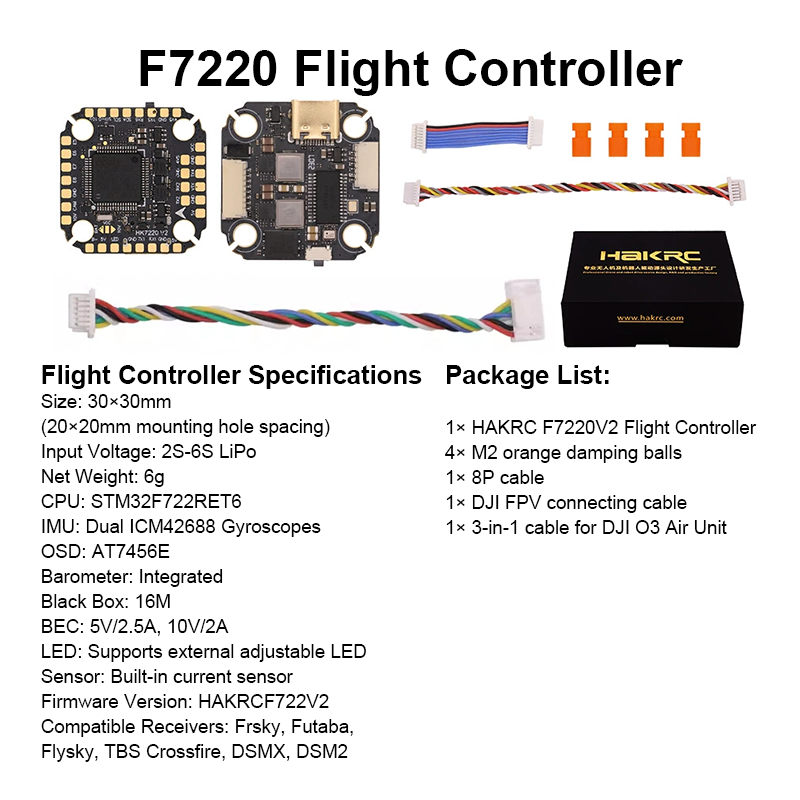

F7220 V2 Flight Controller Parameters：
Size: 30*30mm
Mounting Holes: 20*20mm
Weight: 6g
CPU: STM32F722RET6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/2.5A; 10V/2A
Input Voltage: 2-6S Lipo
Flight Controller Firmware: F722V2

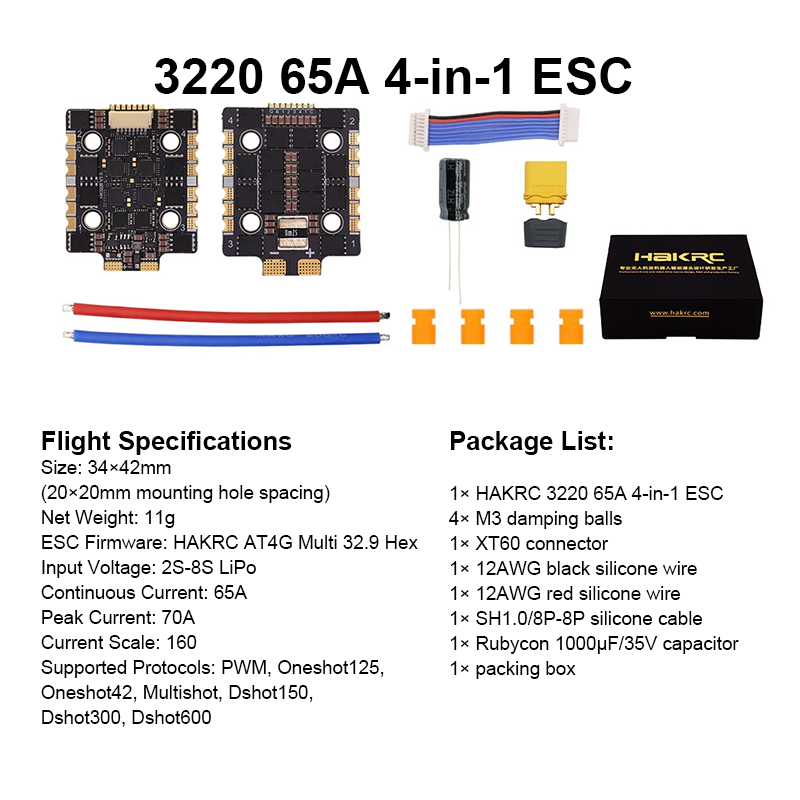

3220 65A 4in1 ESC Parameters：
Size: 34*42mm
Mounting Holes: 20*20mm
Weight: 11g
Input Voltage: 2-8S Lipo
Continuous Current: 65A
Peak Current: 70A
Brushless ESC Firmware: AT4G_Multi_32.9 Hex
