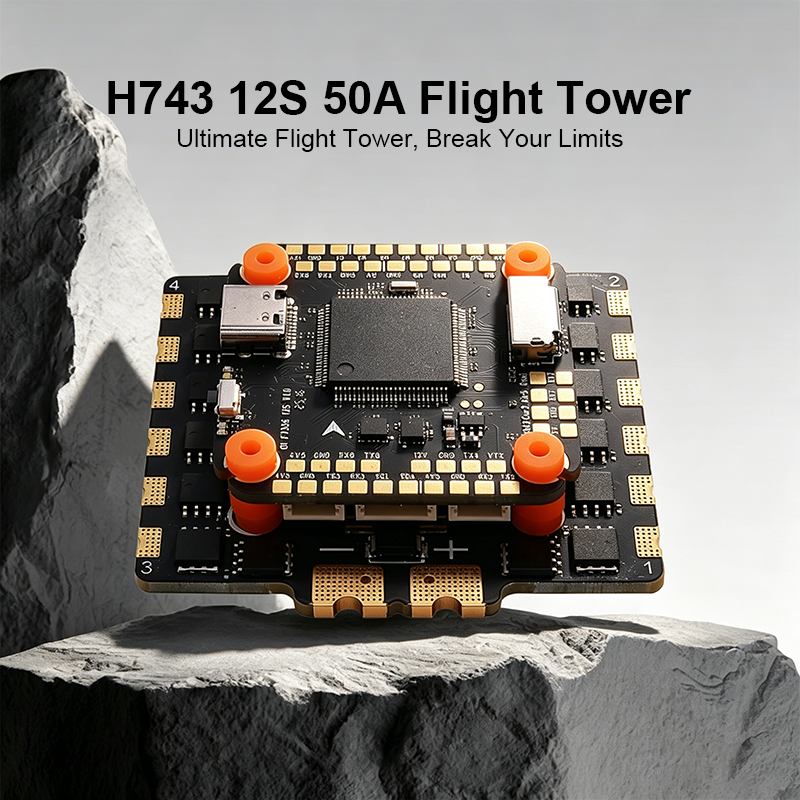

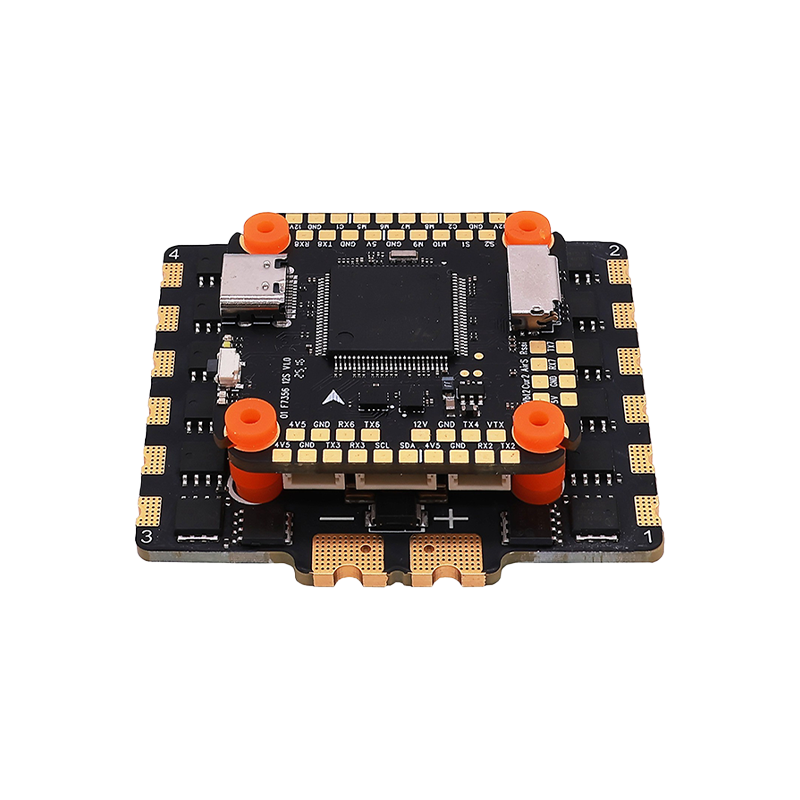

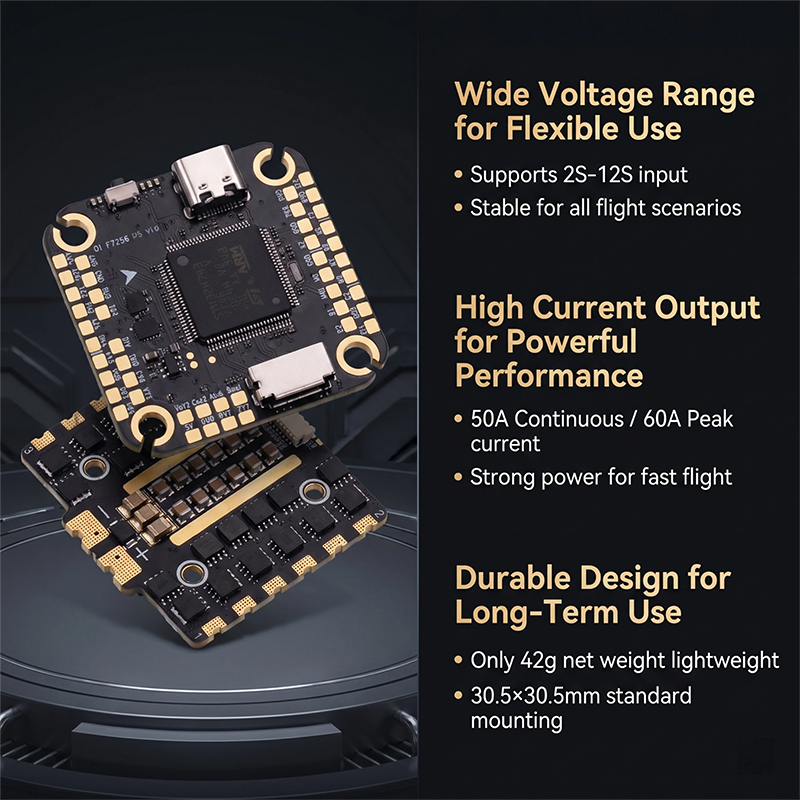

Mini Flight Controller Stack 50A 12S 4in1 ESC Brushless ESC H743 Flight Controller with Integrating 5V/12V Dual BEC for FPV Racing Drones Parts
No.YQHK046

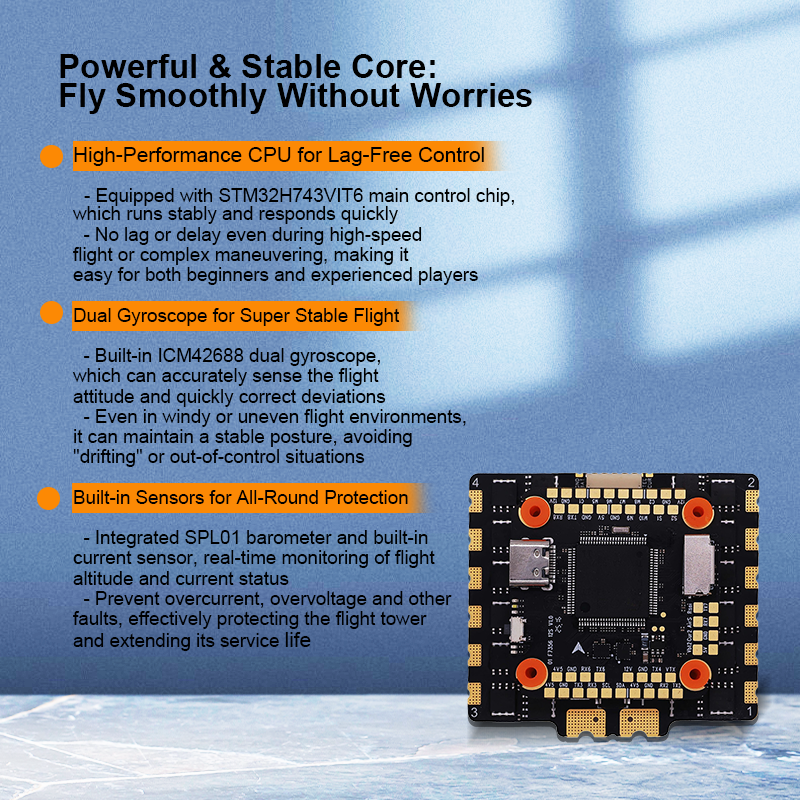

- The Flight Controller Stack Features a High-Performance Processor that Operates at a Frequency of Up to 120MHz, Enabling Real-Time Response to Flight Commands, Which Ensures Unparalleled Flight Stability and Responsiveness.
- The Flight Controller for Drones Integrates a 5V/12V Dual BEC, with the 12V BEC Providing Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation, While the 4in1 ESC Brushless ESC Adopt Imported 80V High Current Resistance MOS, Offering a Long Lifespan and Strong Load Capacity.
- High Performance Flight Controller Drone Parts Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to Us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

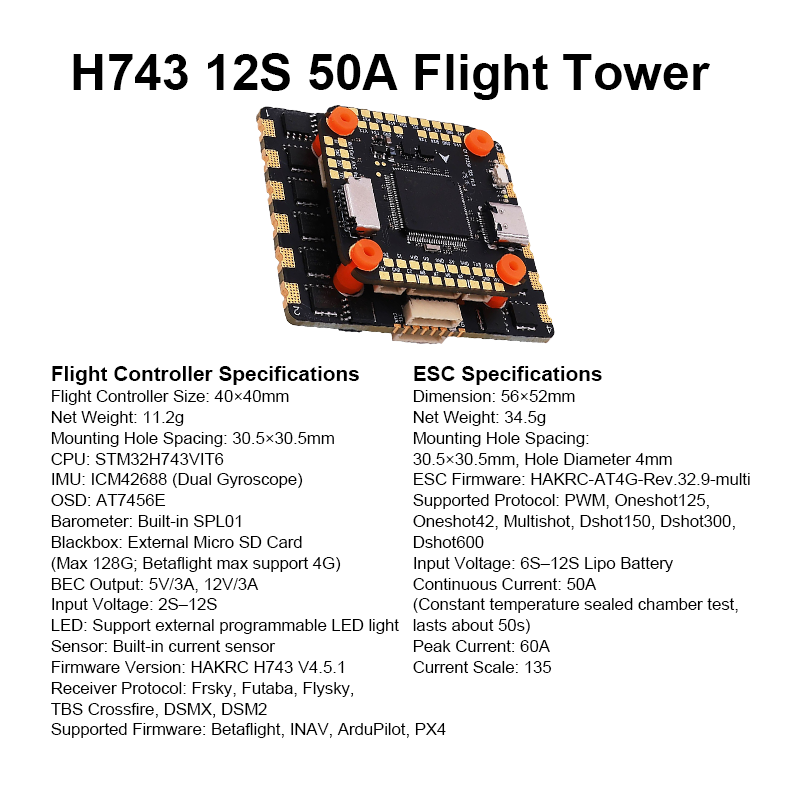

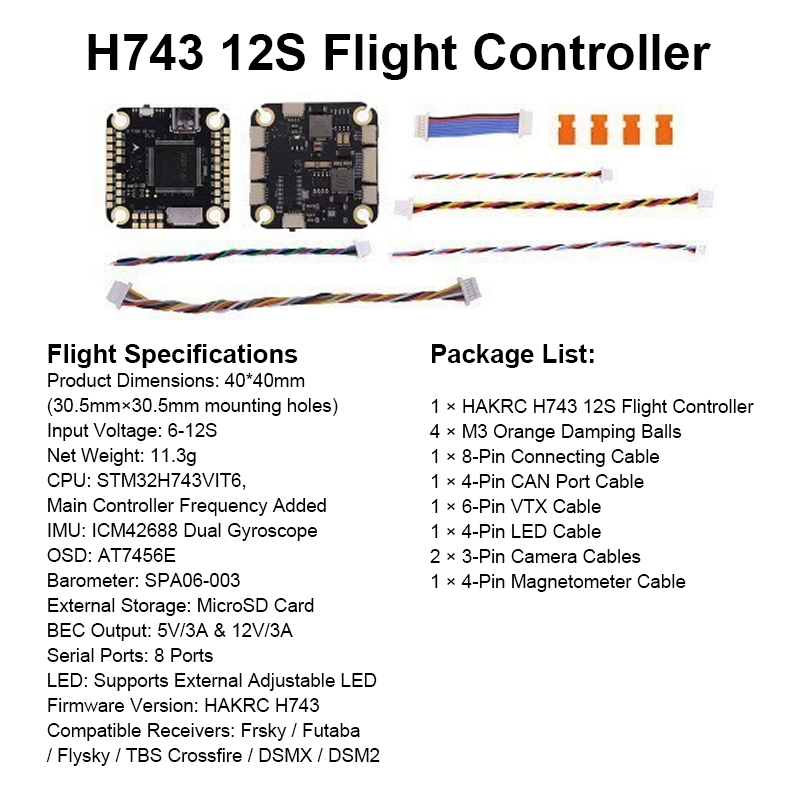

H743 Flight Controller Parameters：
Size: 40*40mm
Mounting Holes: 30.5*30.5mm
Weight: 11.3g
CPU: STM32H743VIT6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/3.5A; 12V/3A
Input Voltage: 6-12S Lipo
Flight Controller Firmware: H743
50A 4in1 ESC Parameters：

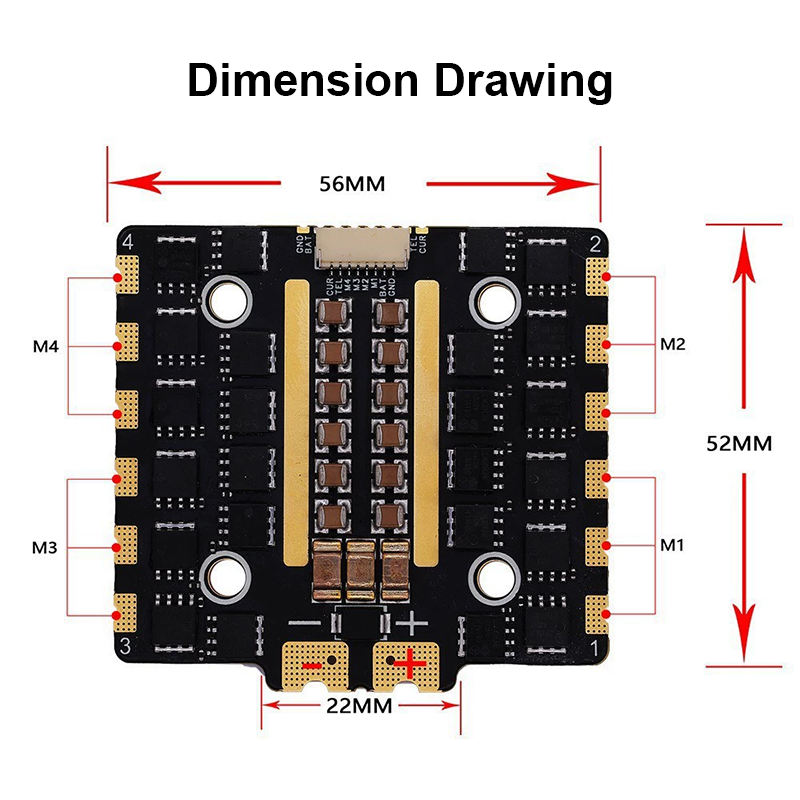

Size: 56*51.6mm
Weight: 34.5g
Input Voltage: 6-12S Lipo
Continuous Current: 50A
Peak Current: 60A
Brushless ESC Firmware: AT4G-Rev.32.9-muiti
