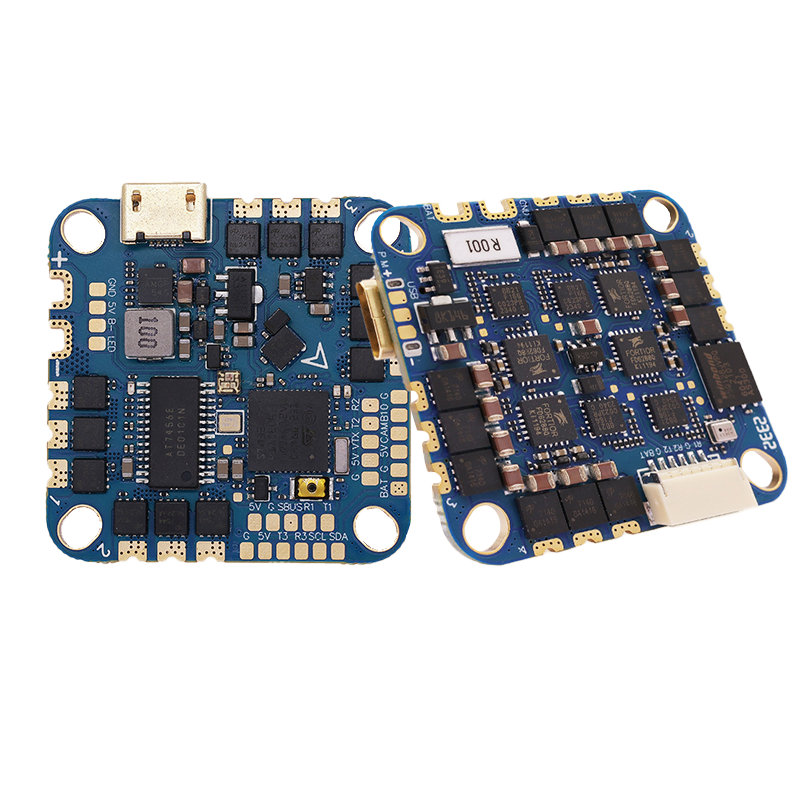

Mini Flight Controller 40A 6S AIO Flight Controller 4in1 ESC Brushless ESC for FPV Racing Freestyle Drones
No.YQHK058
- The AIO Flight Controller Adopts Imported 40V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity.
- The AIO Flight Controller Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.
- The Flight Controller for Drone Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- Widely Applications: The Drone Flight Controller Suitable for Emergency Rescue, Medical First Aid, Industrial Safety Production, Cultural Media, Scientific Exploration, Dropping for Fishing, Summer Camp, Drone Racing and so on.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

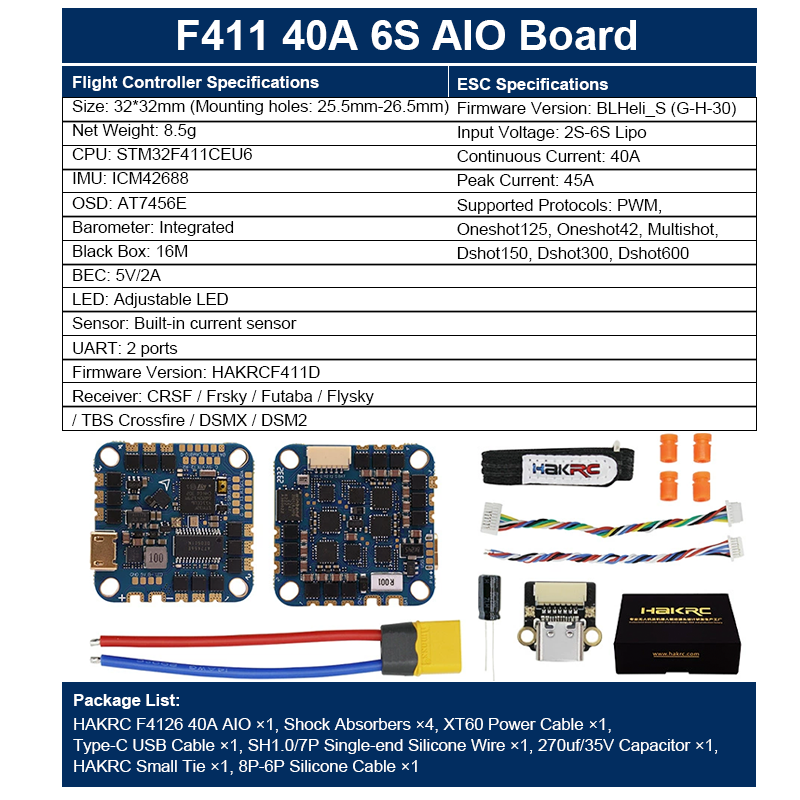

AIO Flight Controller Parameters:
Size: 32*32mm
Mounting Holes: 25.5*26.5mm
Weight: 8.5g
Input Voltage: 2-6S Lipo
CPU: STM32F411CEU6
IMU: ICM42688
OSD: AT7456E
Barometer: Integrated
Black Box: 16M
BEC: 5V/2A
Flight Controller Firmware: F411D
4in1 ESC Parameters：
Input Voltage: 2-6S Lipo
Continuous Current: 40A
Peak Current: 45A
Brushless ESC Firmware: BLHELI _S (G- H-30)
