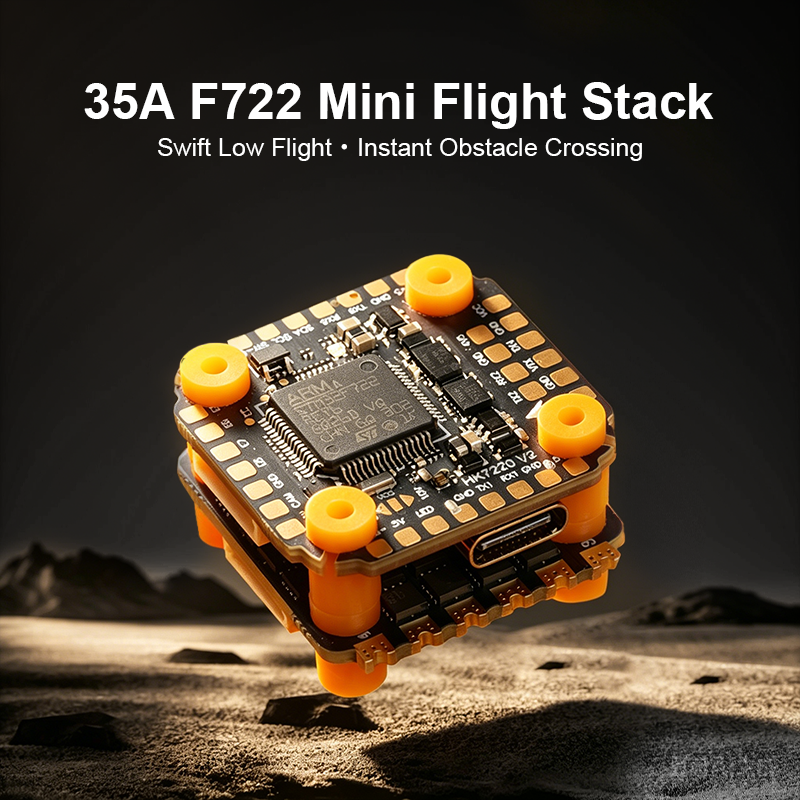

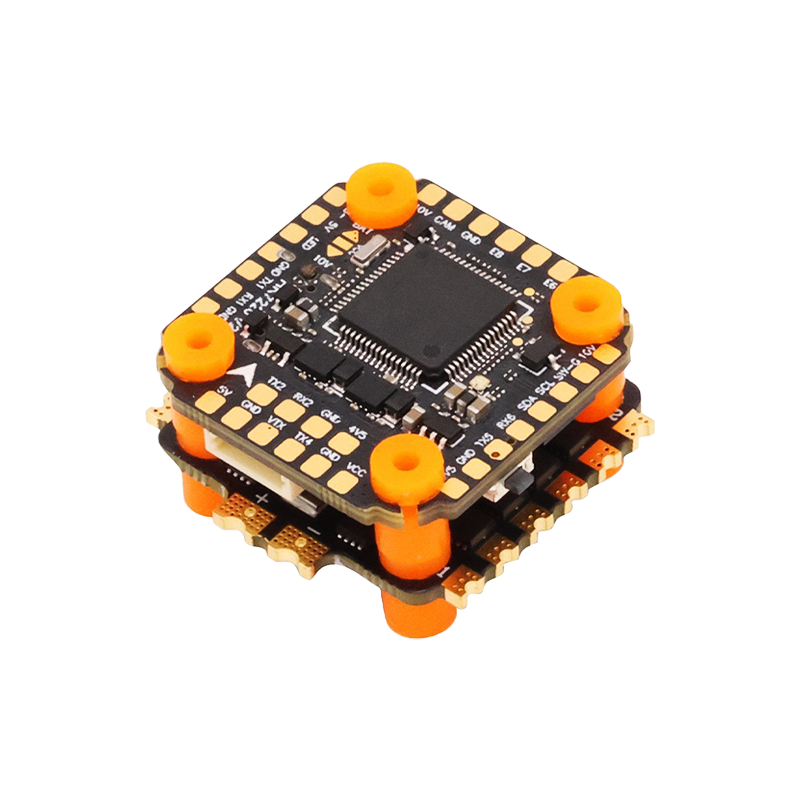

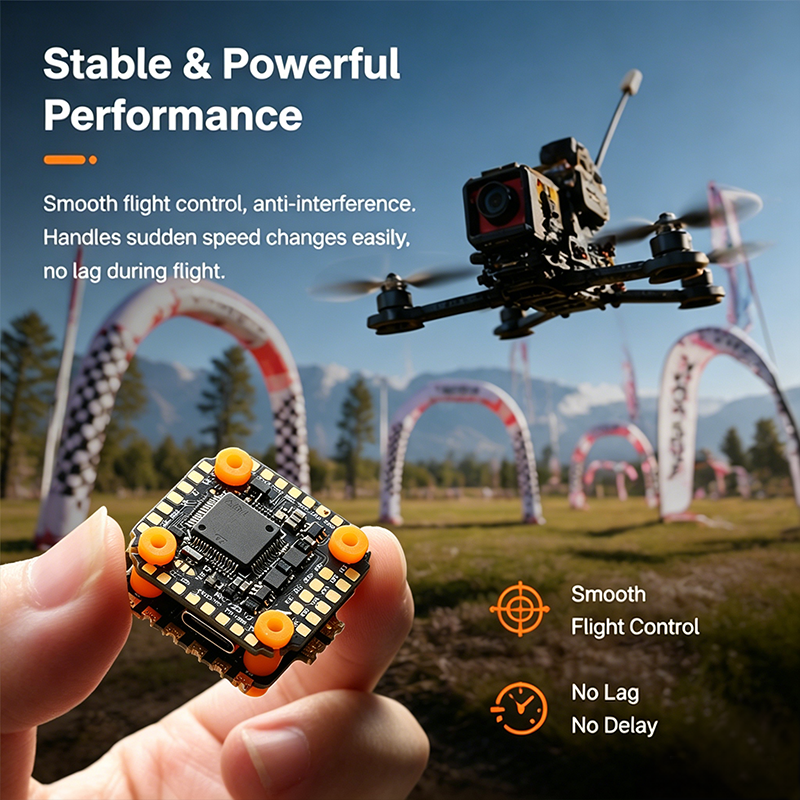

High Performance Mini Flight Controller Stack F722 Flight Controller with Integrating 5V/10V Dual BEC 35A 6S 4in1 ESC for FPV Racing Drones Parts
No.YQHK052
- The Flight Controller Drone Parts Adopts Imported 30V High Current Resistance MOS, Offering a Long Lifespan and Strong Load Capacity, While the Flight Controller Stack Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The Flight Controller Stack Features Advanced Chip Technology with a High-Performance Processor that Delivers Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- The 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, The Flight Controller Drone Parts Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- Widely Used: The Flight Controller for Drone Suitable for Emergency Rescue, Medical First Aid, Industrial Safety Production, Cultural Media, Scientific Exploration, Photographer, and Drone Racing.
(0 Reviews)
0 Sold

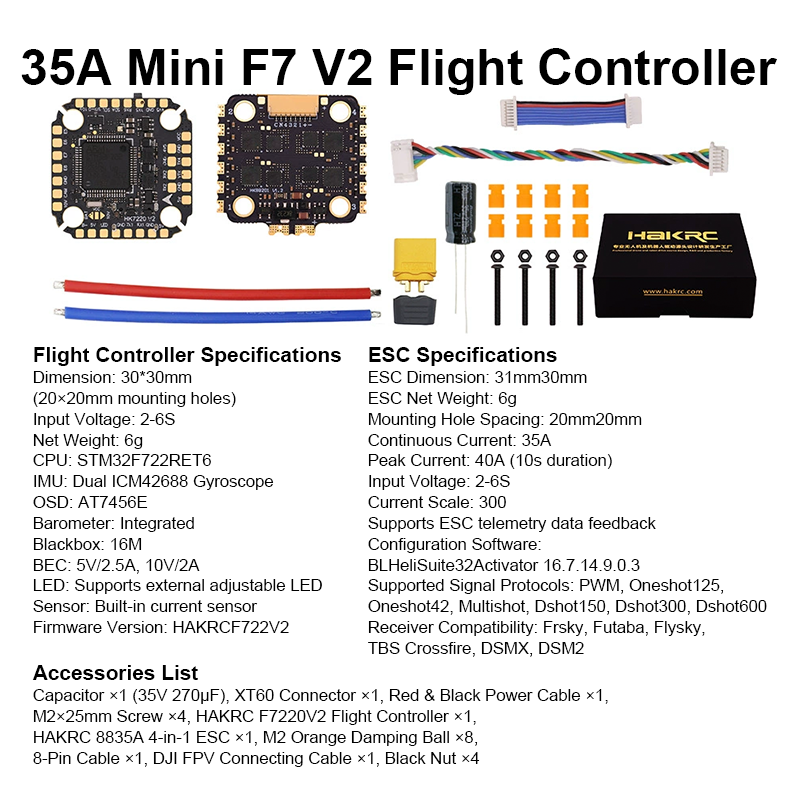

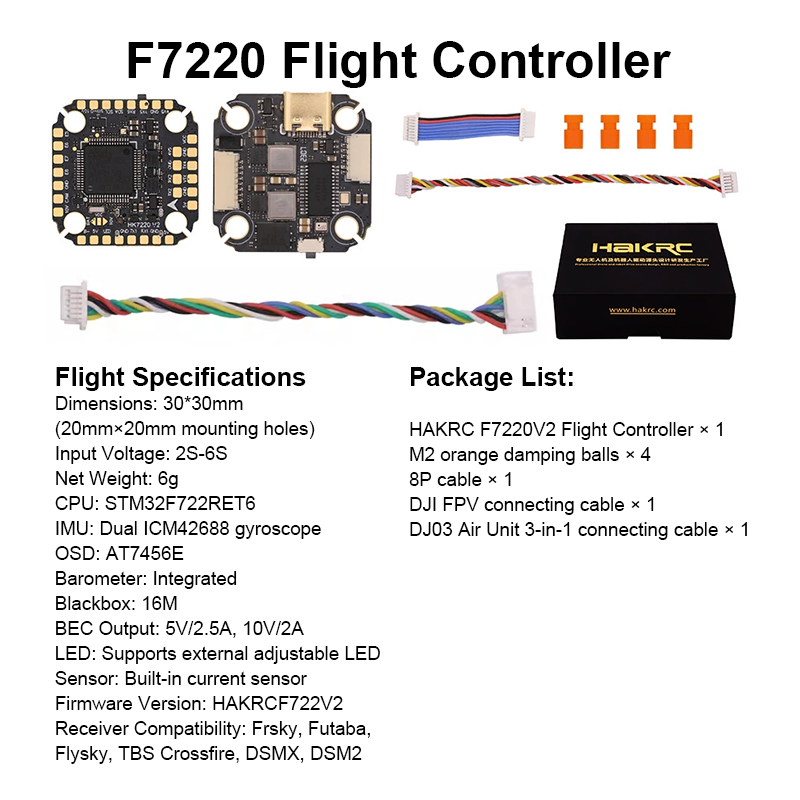

F722 Flight Controller Parameters：
Size: 30*30mm
Mounting Holes: 20*20mm
Weight: 6g
CPU: STM32F722RET6
IMU: ICM42688
OSD: AT7456E
Black Box: 16M
BEC: 5V/2.5A; 10V/2A
Input Voltage: 2-6S Lipo
FPV Flight Controller Firmware: F722V2

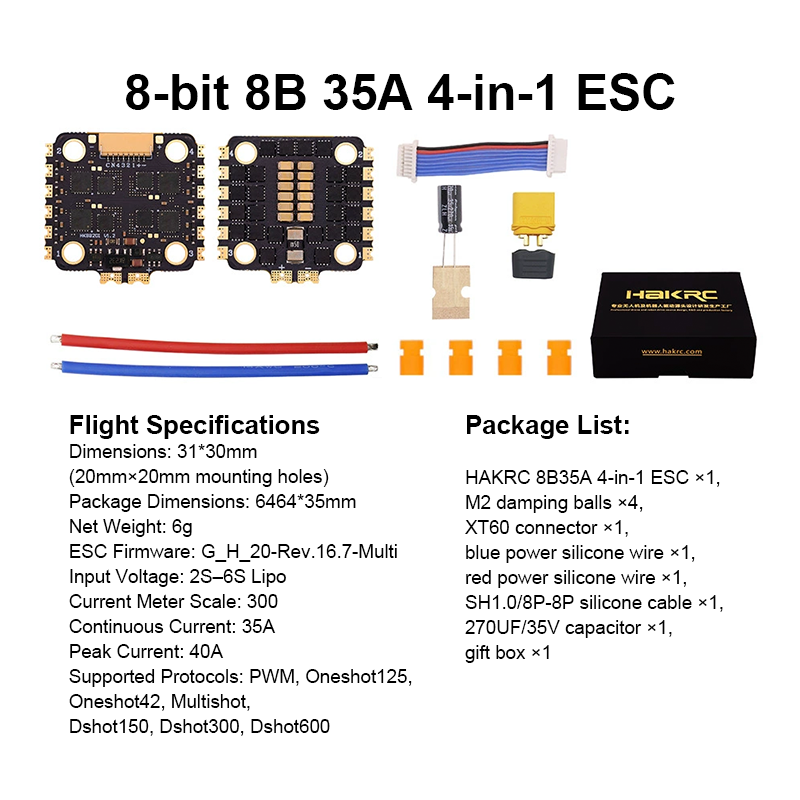

4in1 ESC Parameters：
Size: 31*30mm
Mounting Holes: 20*20mm
Weight: 6g
Input Voltage: 2-6S Lipo
Continuous Current: 35A
Peak Current: 40A
Brushless ESC Firmware: G_H_20-Rev.16.7-Multi
