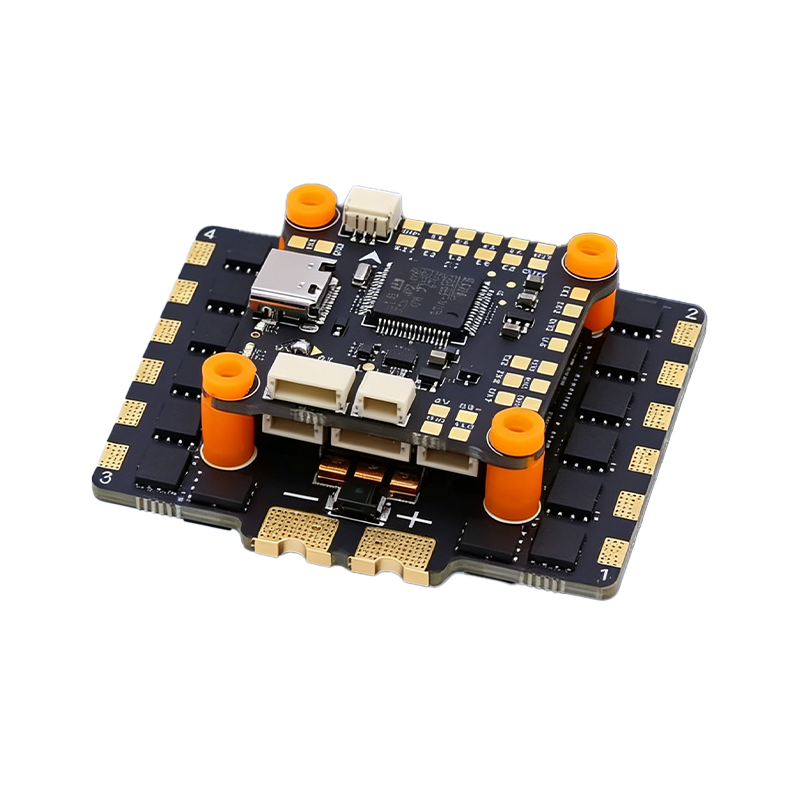

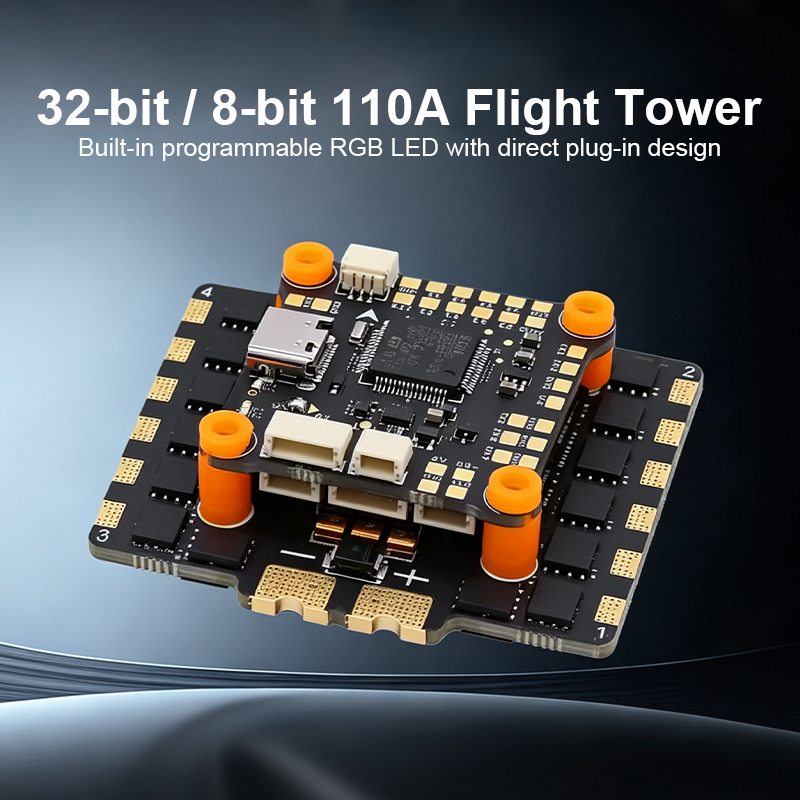

High Performance F405 Flight Controller with Integrating 5V/12V Dual BEC 110A 8S 4in1 ESC Mini Flight Controller Stack for FPV Racing Drones Parts
No.YQHK054

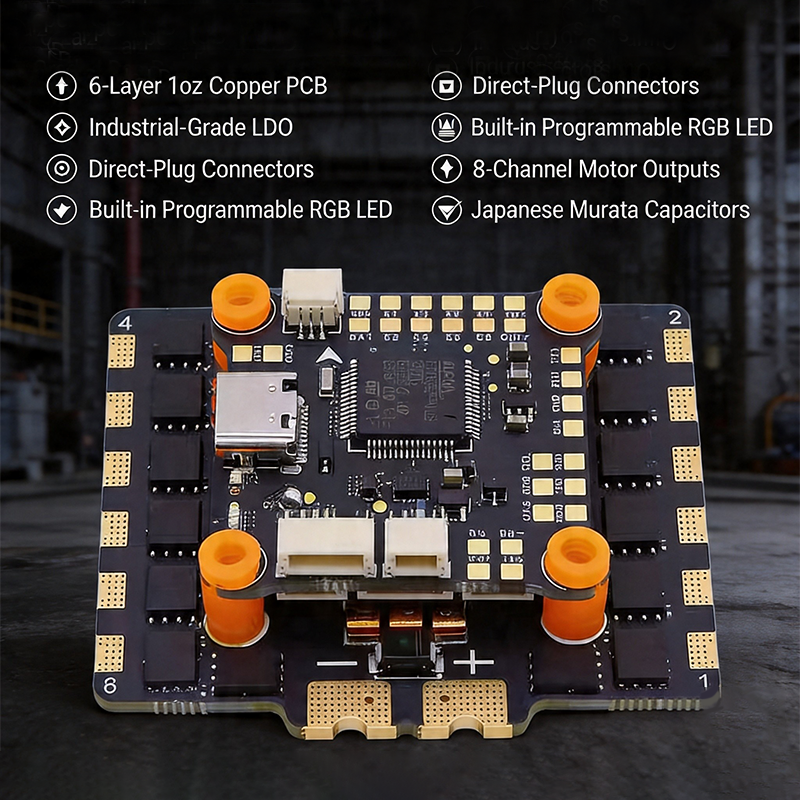

- The Flight Controller Stack Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.

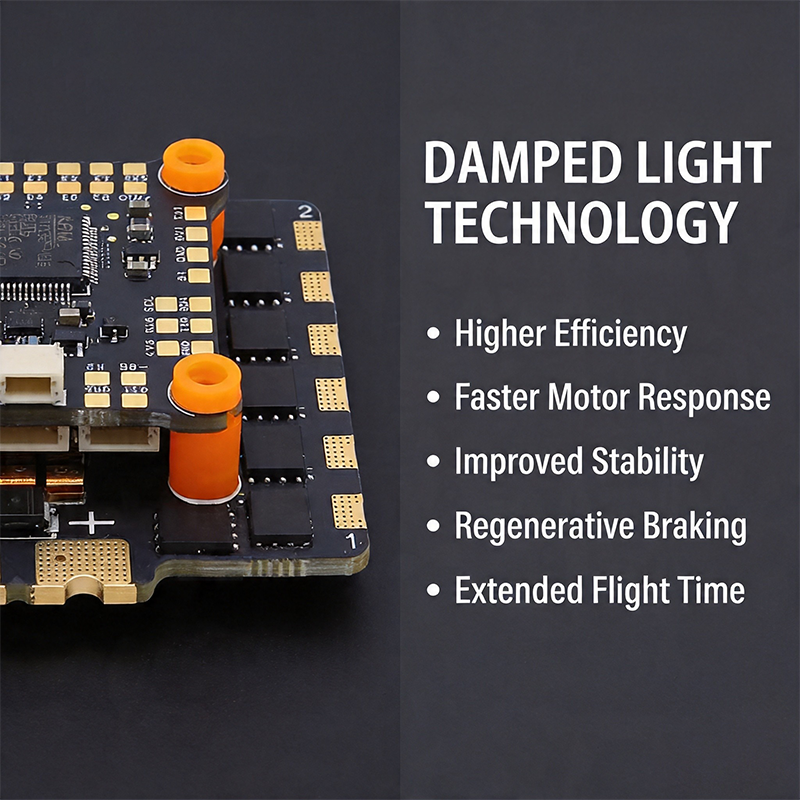

- The 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- The F405 Flight Controller Use Direct Insertion Connectors for Plug and Play Functionality, Flight Controller for Drone Easy to Install and Solder Free for Beginners, Saving Time, Effort, and Convenient Operation.
- The 4in1 ESC Brushless ESC Adopts Imported 40V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

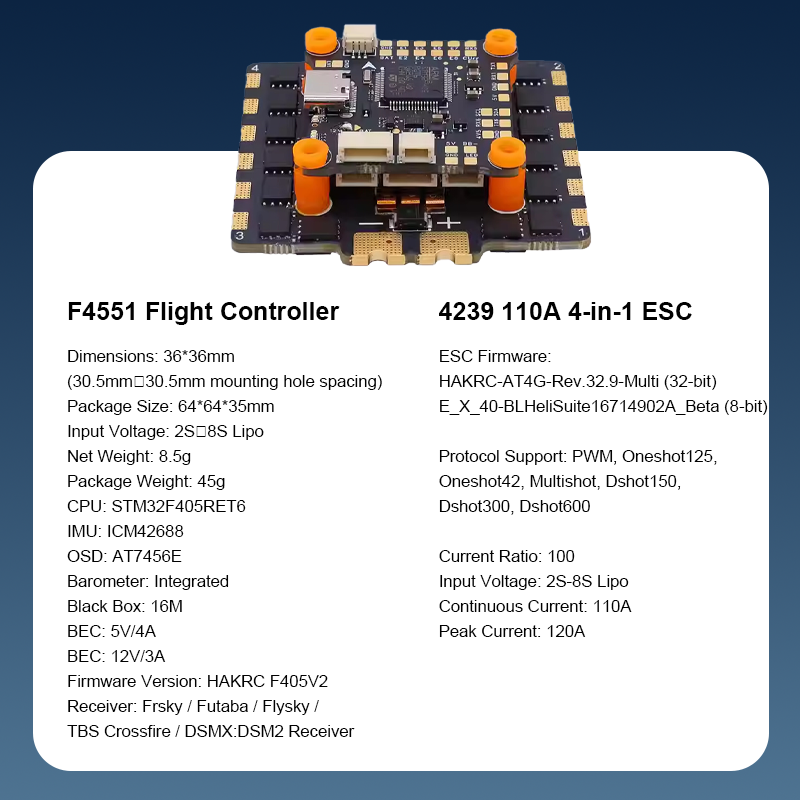

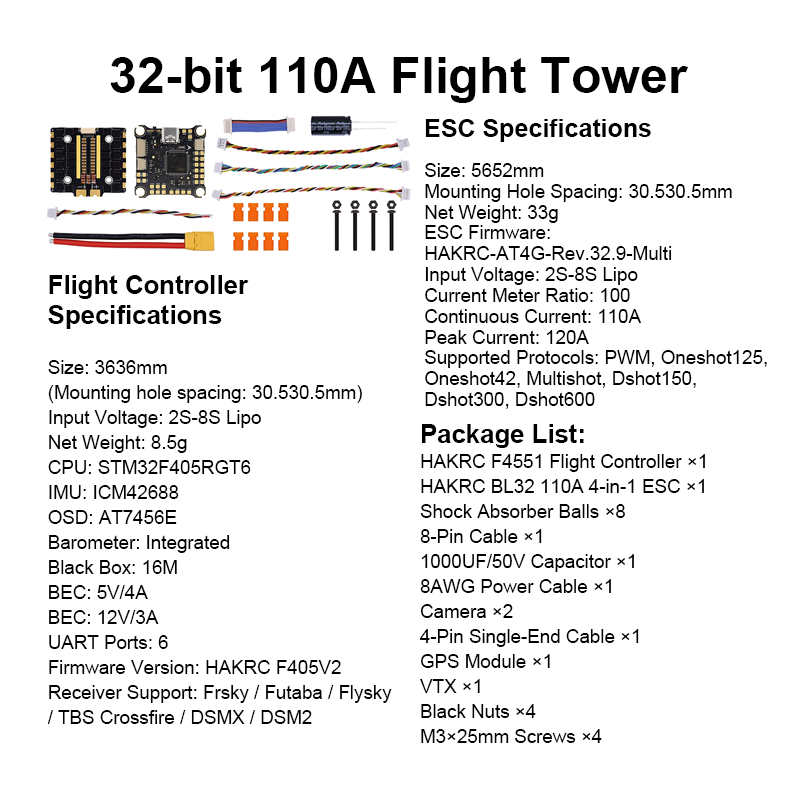

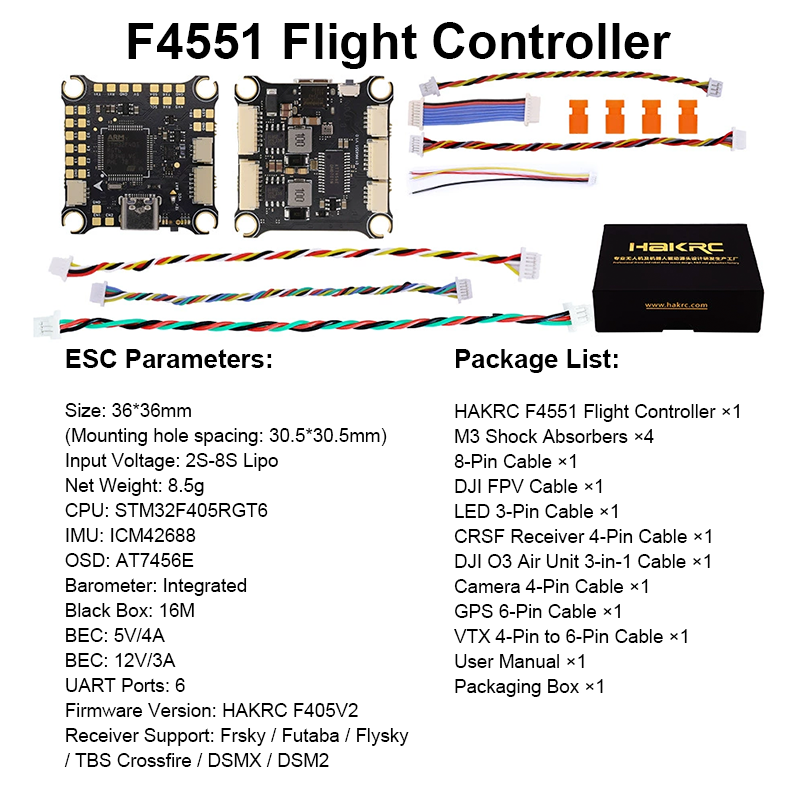

F405 Flight Controller Parameters：
Size: 36*36mm
Mounting Holes: 30.5*30.5mm
Weight: 8.5g
CPU: STM32F405RET6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/4A; 12V/3A
Input Voltage: 2-8S Lipo
F405 Flight Controller Firmware: F405V2

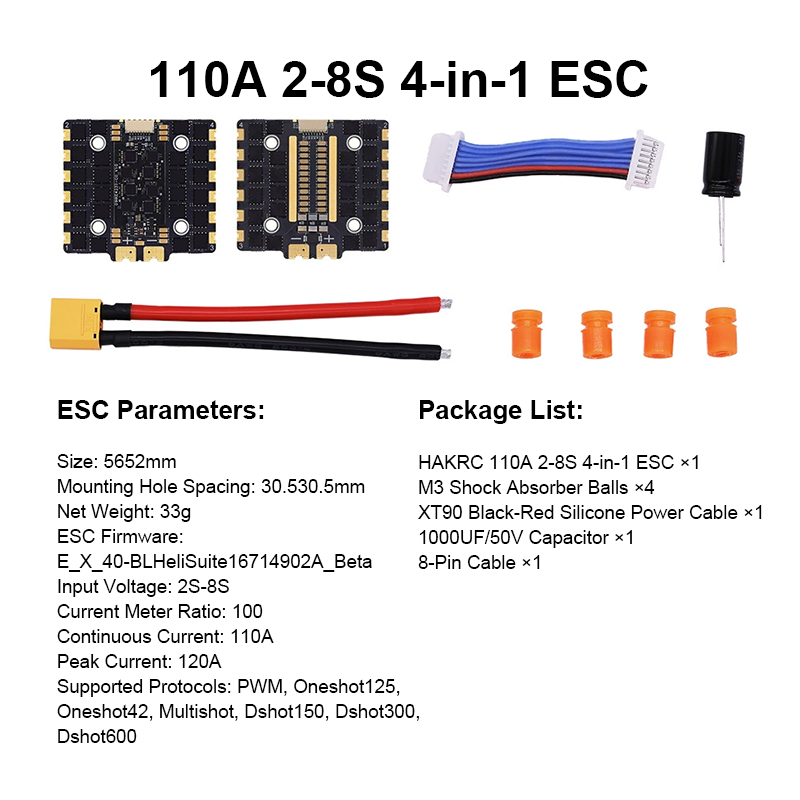

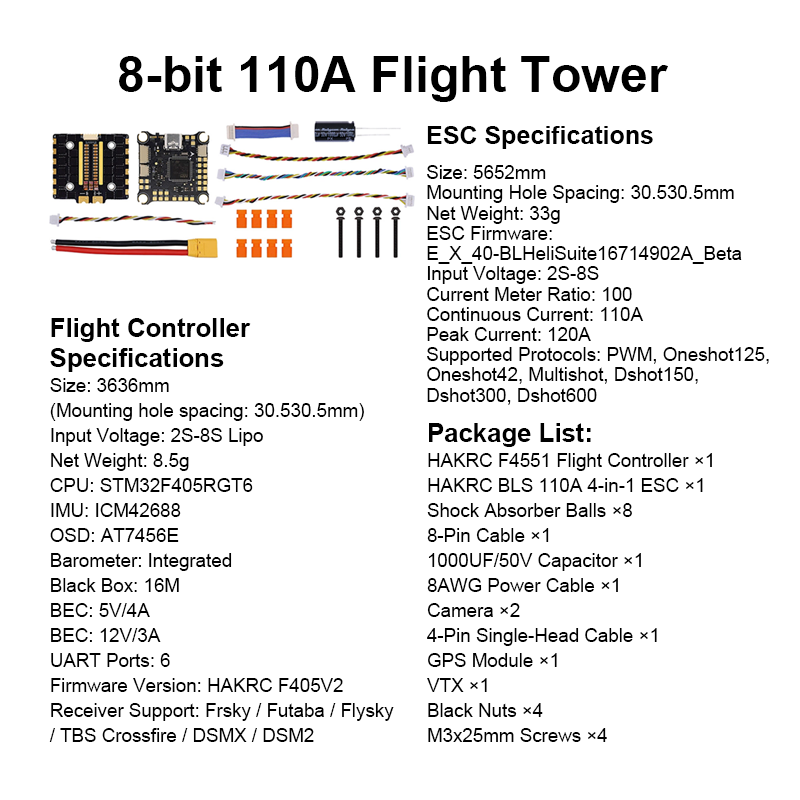

8 Bit 110A 4in1 ESC Parameters：
Size: 56*52mm
Mounting Holes: 30.5*30.5mm
Weight: 33g
Input Voltage: 2-8S Lipo
Continuous Current: 110A
Peak Current: 120A
Brushless ESC Firmware: EX40-BLHeliSuite16714902A Beta
32 Bit 110A 4in1 ESC Parameters：
Size: 56*52mm
Mounting Holes: 30.5*30.5mm
Weight: 33g
Input Voltage: 2-8S Lipo
Continuous Current: 110A
Peak Current: 120A
Brushless ESC Firmware: AT4G-Rev.32.9-MUIti
