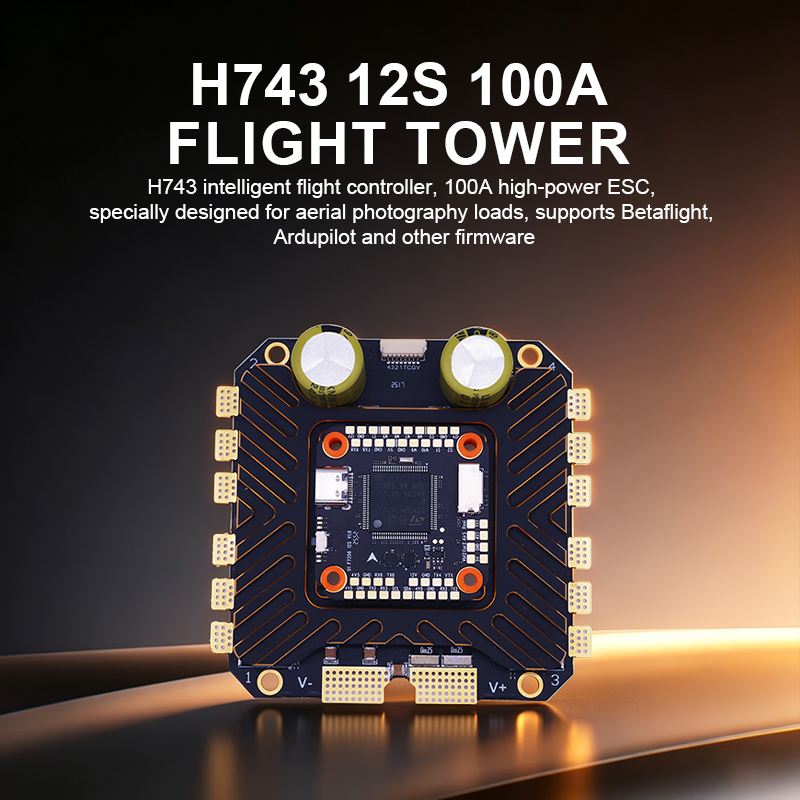

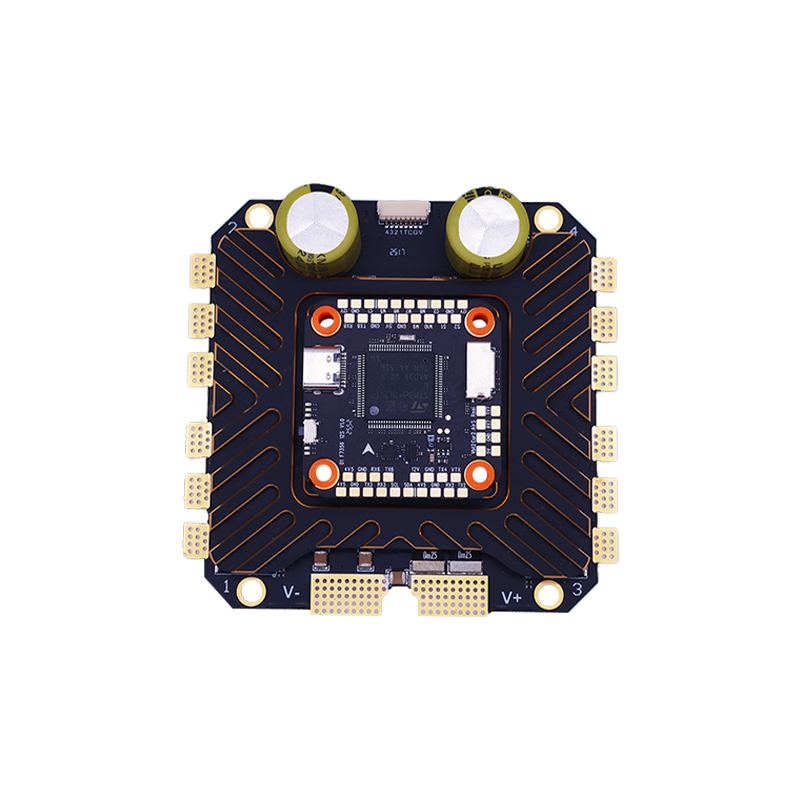

H743 100A 12S Flight Controller Stack FPV Flight Controller with Integrating 5V/12V Dual BEC 4in1 ESC Brushless ESC for FPV Racing Freestyle Drone Parts
No.YQHK037
- The FPV Flight Controller 4in1 ESC Advanced Chip Technology, Featuring a High-Performance Processor that Delivers Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- High Performance Flight Controller for Drone Integrating 5V/12V Dual BEC, 12VBEC can Provide Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
- The Flight Controller Drone Parts Adopts Imported 80V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity. The Flight Controller Stack Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.

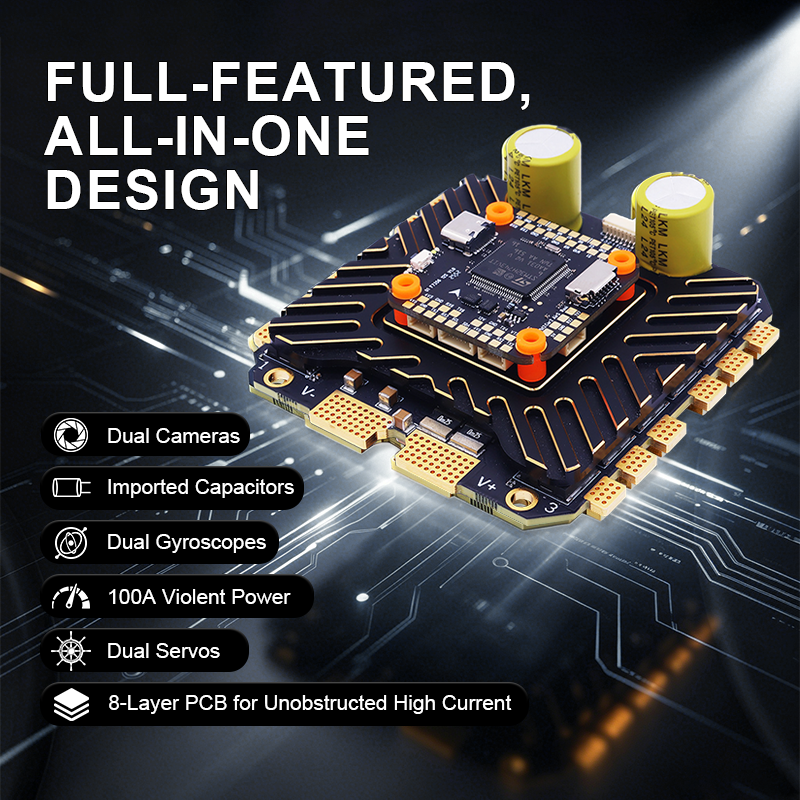

- The Flight Controller Stack Comes with Multiple Mounts, Saving Time, Effort, and Convenient Operation. The Flight Controll Comes with a Built-in Direct Insertion LED Light Socket and Also Supports the Transmission of Telemetry Data from Electric Propulsion Systems.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

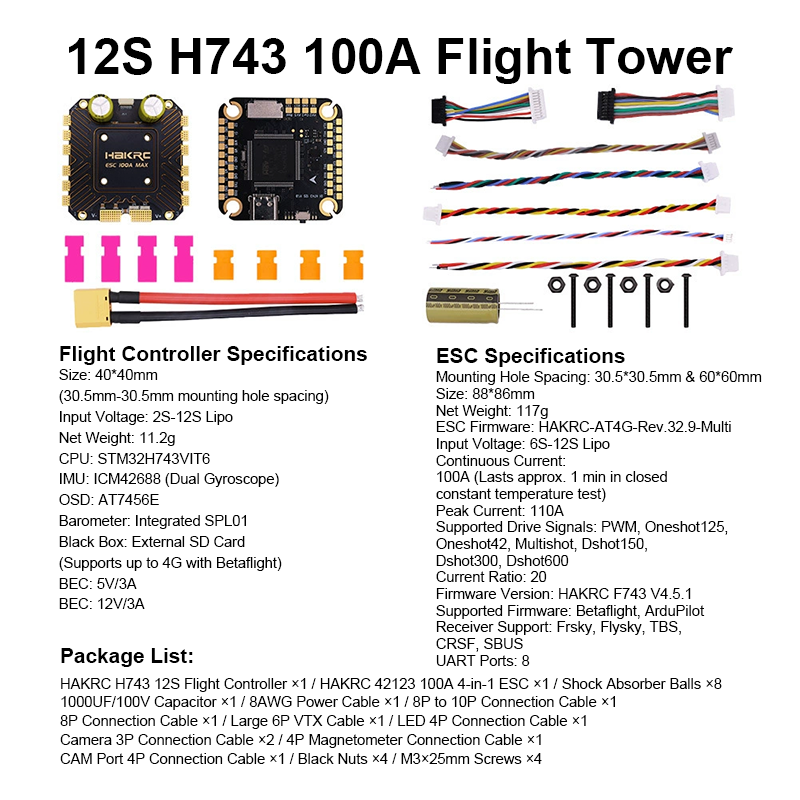

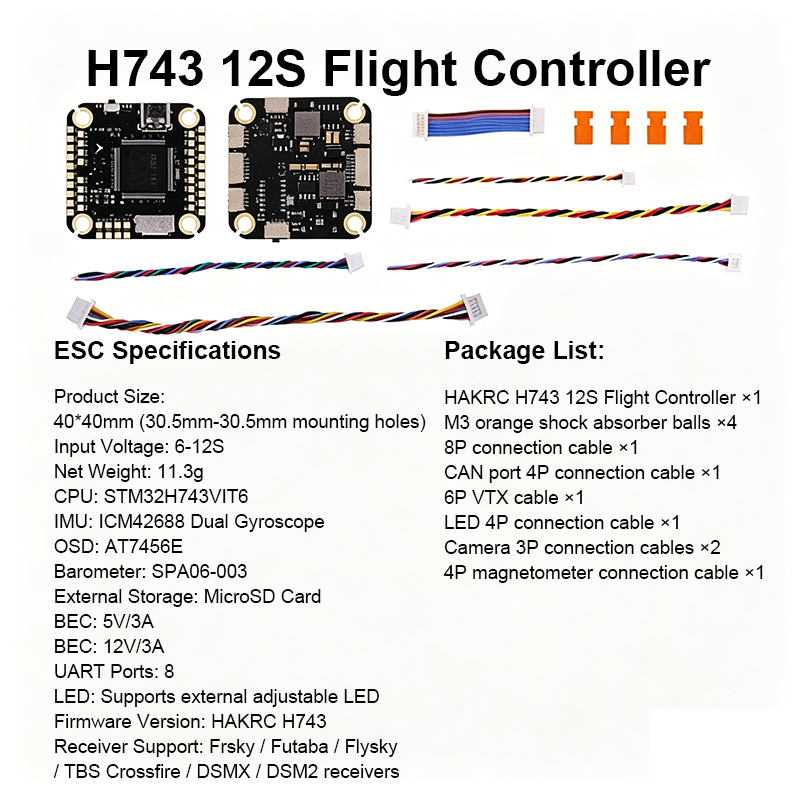

H743 Flight Controller Parameters：
Size: 40*40mm
Mounting Holes: 30.5*30.5mm
Weight: 11.2g
CPU: STM32H743VIT6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/3A; 12V/3A
Input Voltage: 2-12S Lipo
Flight Controller Firmware: F743 V4.5.1

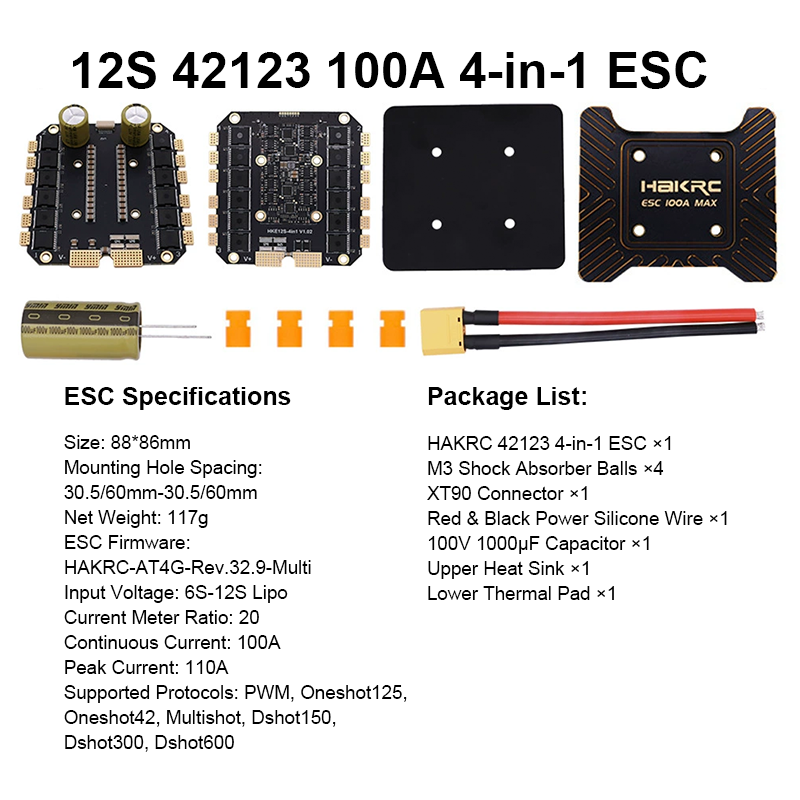

100A 4in1 ESC Parameters：
Size: 88*86mm
Mounting Holes: 30.5*30.5mm/60*60mm
Weight: 117g
Input Voltage: 6-12S Lipo
Continuous Current: 100A
Peak Current: 110A
Brushless ESC Firmware: AT4G-Rev.32.9-MUlti
