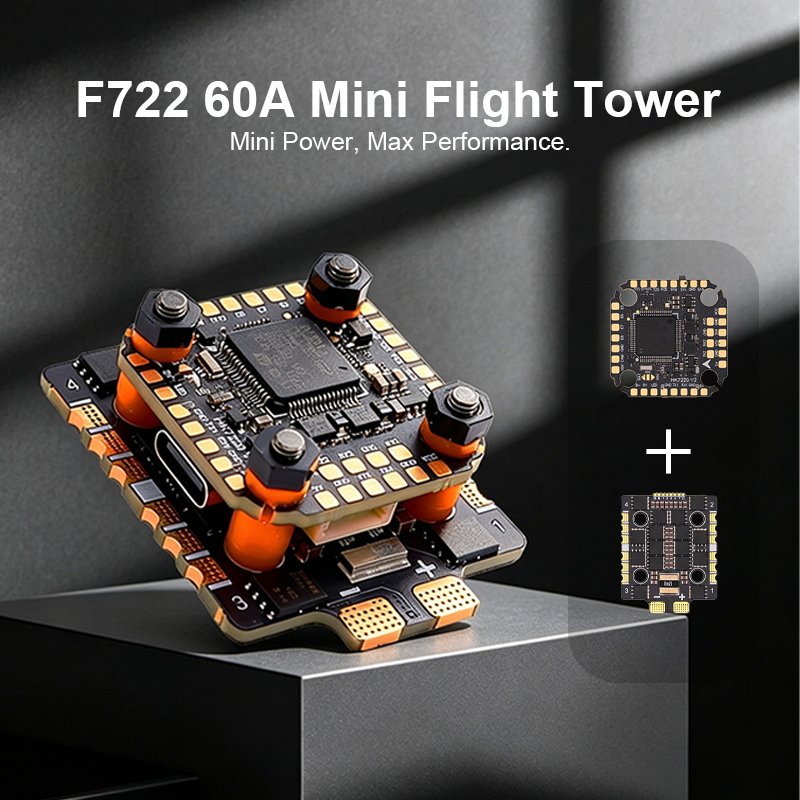

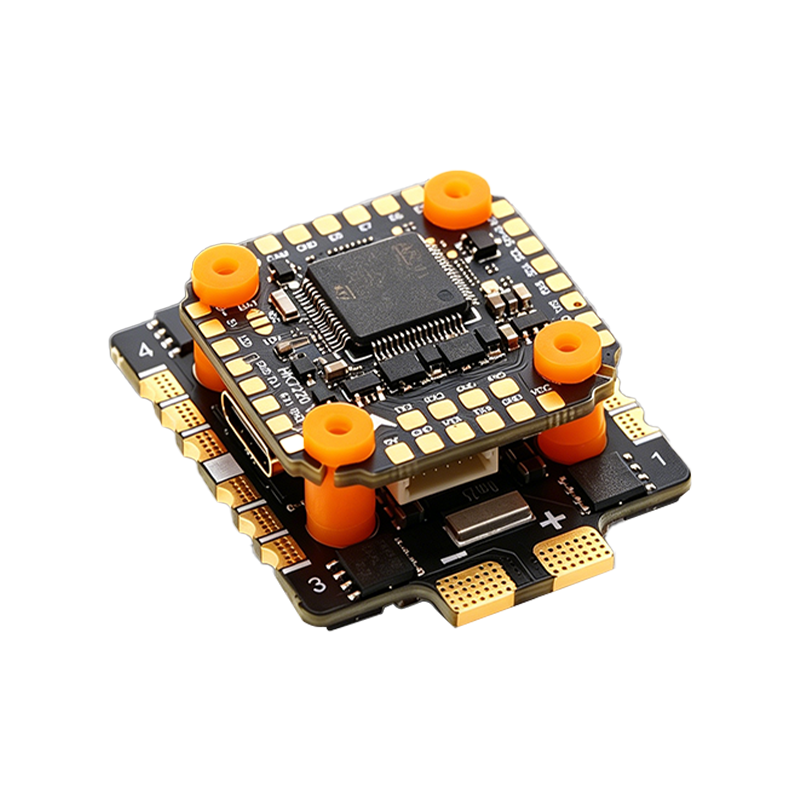

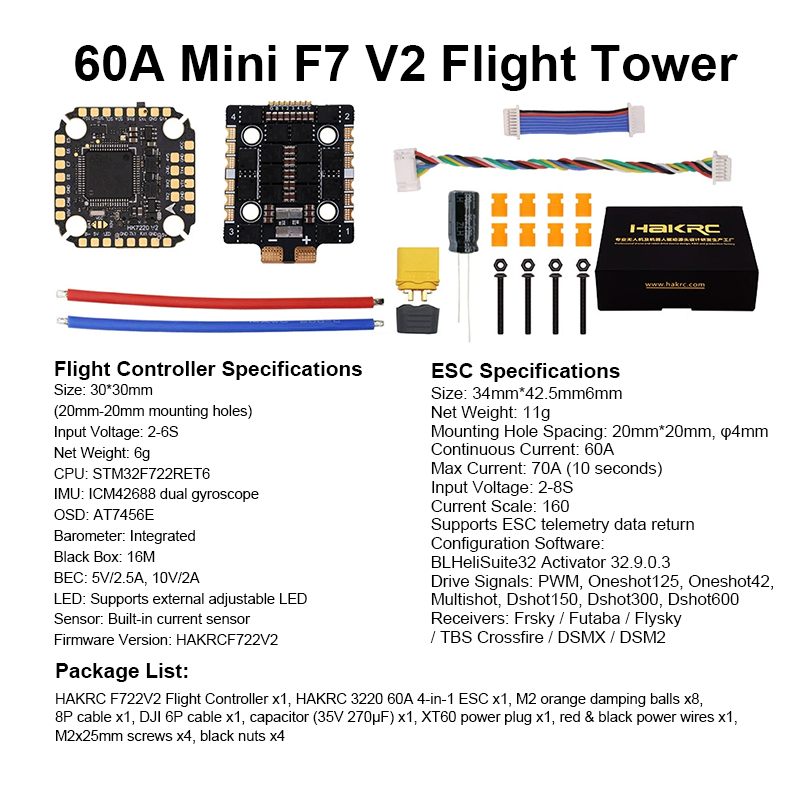

F722 6S Flight Controller with Integrating 5V/10V Dual BEC 3220 60A 8S 4in1 ESC Brushless ESC F722 Flight Controller Stack for FPV Racing Drones Freestyle
No.YQHK038
- The Flight Controller Drone Parts Adopts Imported 40V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity. The Flight Controller Stack Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.
- High Performance Flight Controller for Drone Integrating 5V/10V Dual BEC, 10VBEC can Provide Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
- The Flight Controller Stack Comes with Multiple Mounts, Saving Time, Effort, and Convenient Operation. The Flight Controll Comes with a Built-in Direct Insertion LED Light Socket and Also Supports 8-Channel Motor Control Signal Output.
- The Flight Controller 4in1 ESC Dual Pad Design Ensures that the Pads are Kept Away From the Components, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring Perfect Soldering for Beginners.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

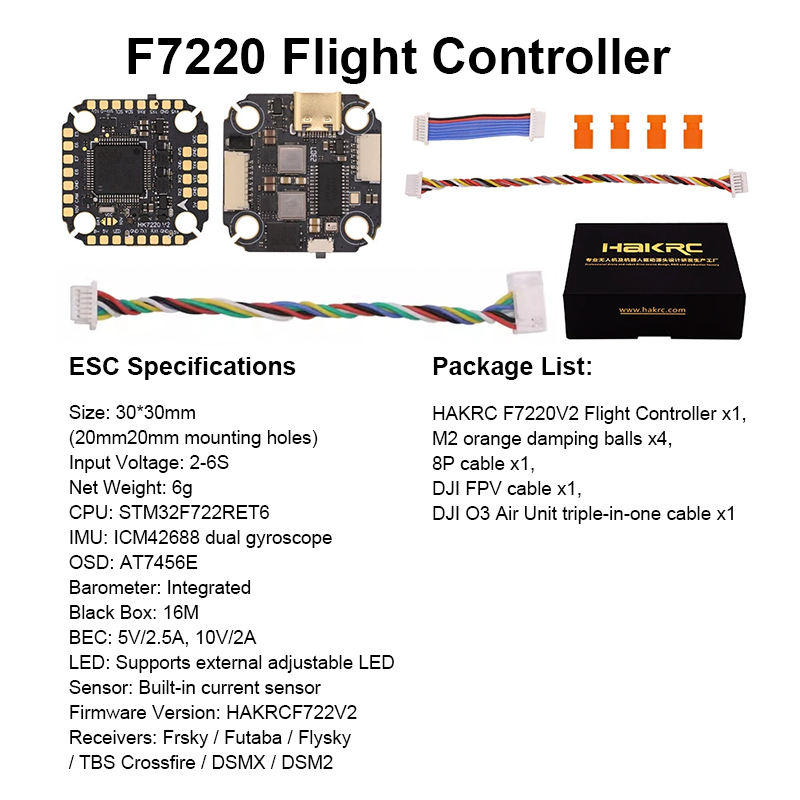

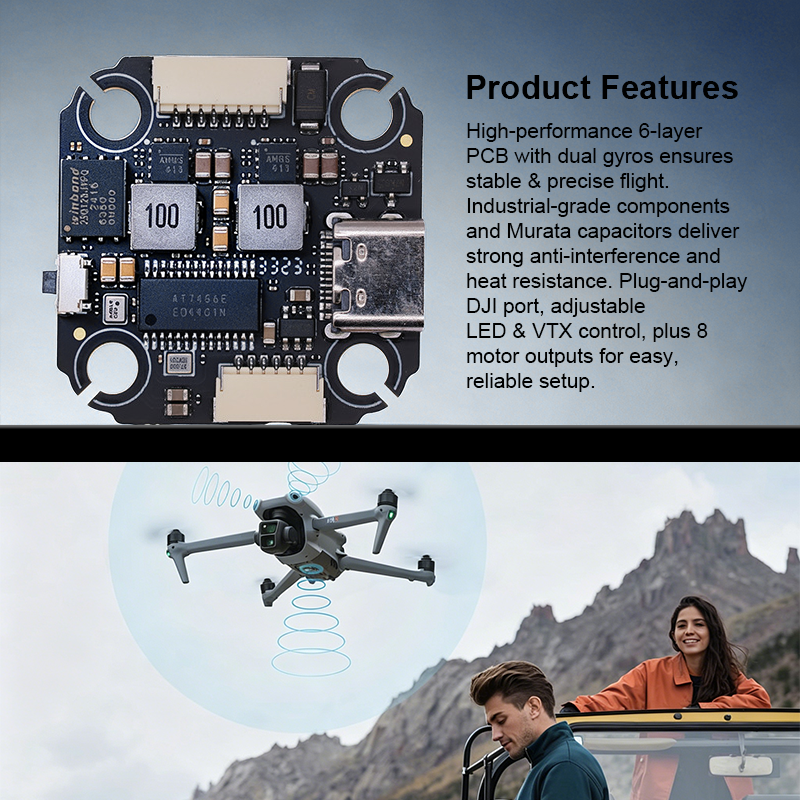

F722 Flight Controller Parameters：
Size: 30*30mm
Mounting Holes: 20*20mm
Weight: 6g
CPU: STM32F722RET6
IMU: ICM42688
OSD: AT7456E
Black Box: 16M
BEC: 5V/2.5A; 10V/2A
Input Voltage: 2-6S Lipo
FPV Flight Controller Firmware: F722V2

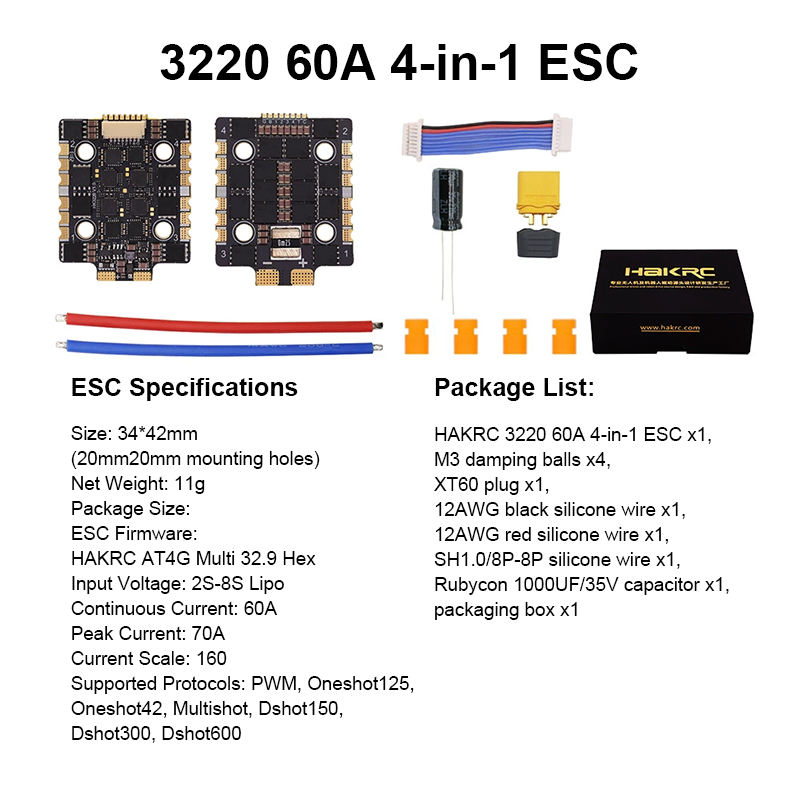

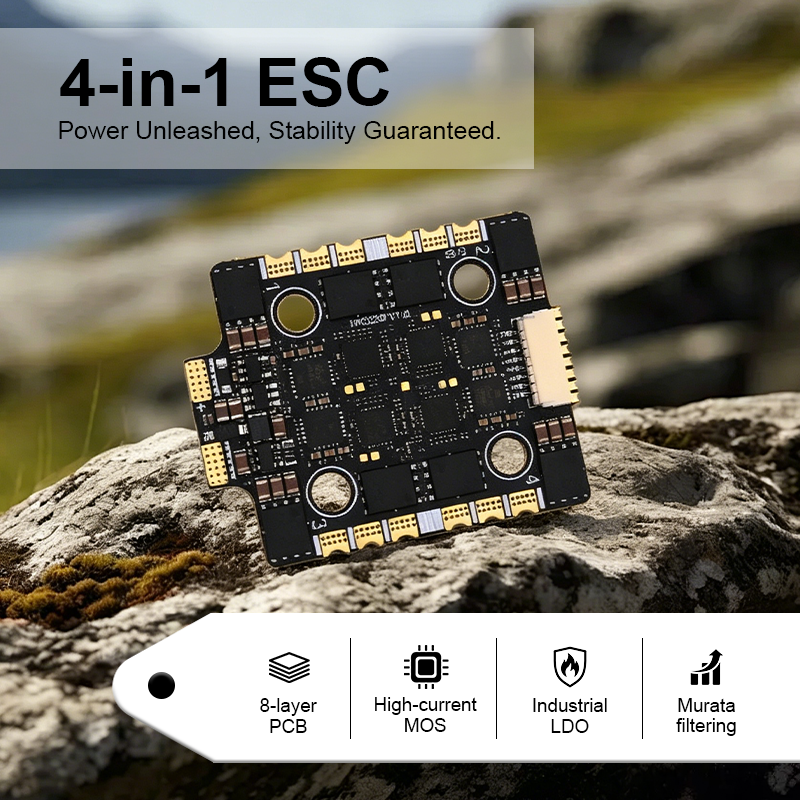

4in1 ESC Parameters：
Size: 34*42mm
Mounting Holes: 20*20mm
Weight: 11g
Input Voltage: 2-8S Lipo
Continuous Current: 60A
Peak Current: 70A
Brushless ESC Firmware: AT4G_Multi_32.9 Hex
