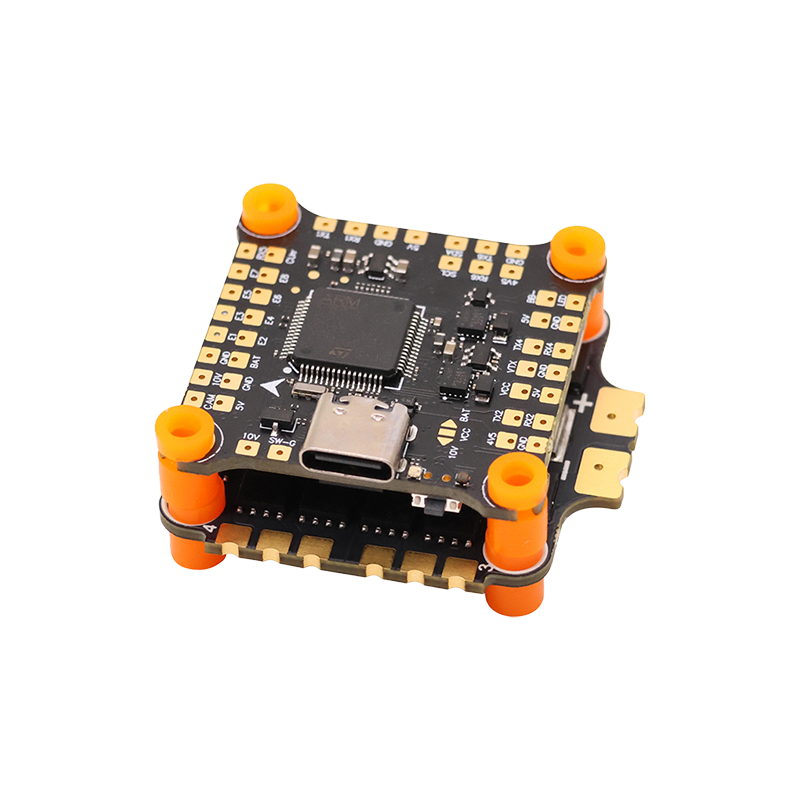

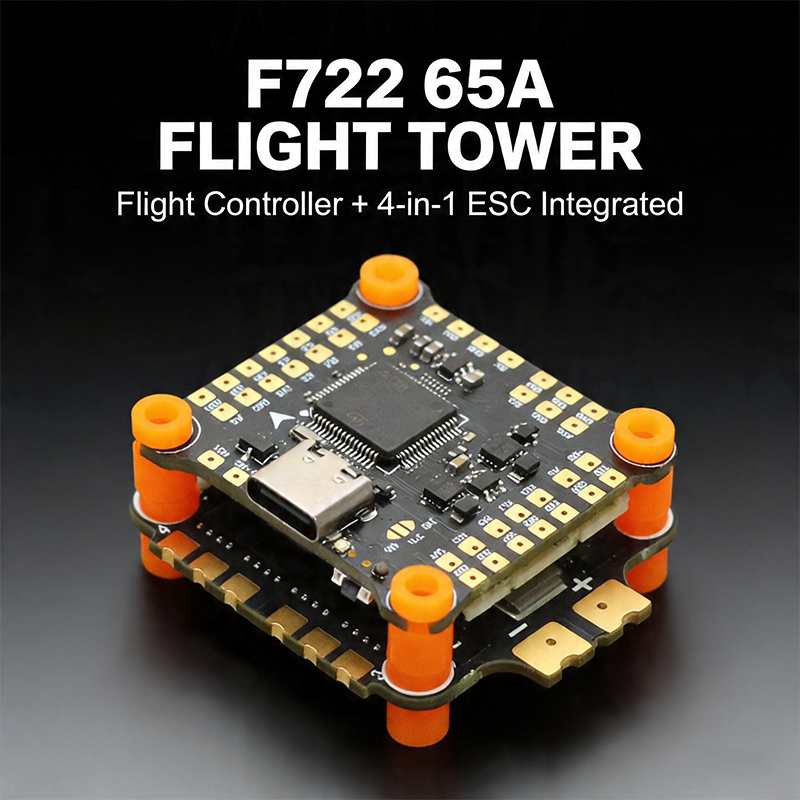

F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts

No.YQHK035
SKU:

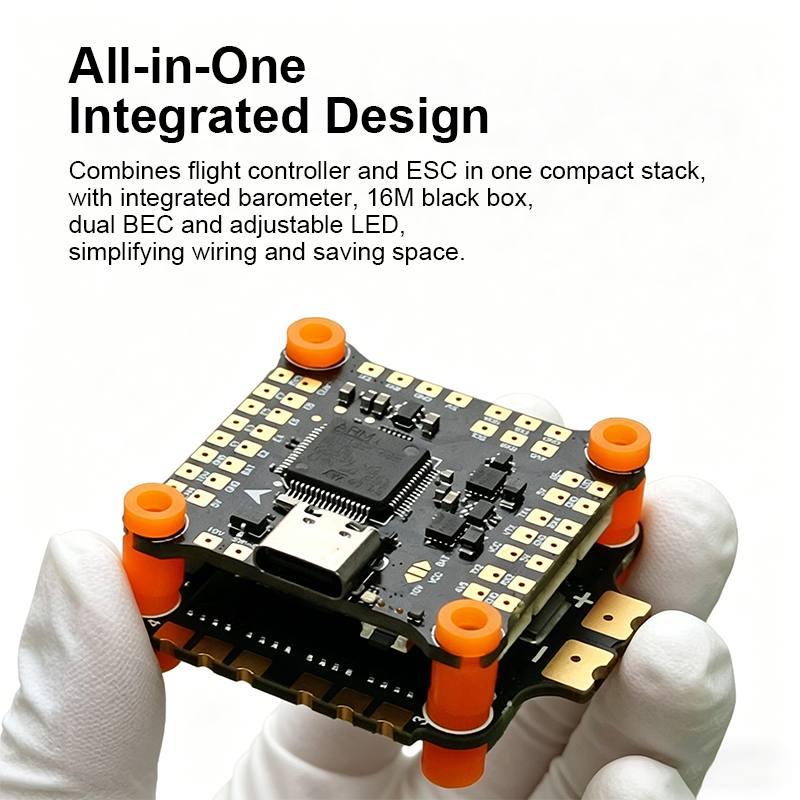

  • High Performance Flight Controller for Drone Integrating 5V/10V Dual BEC, 10VBEC can Provide Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
  • The Flight Controller Brushless ESC Adopts Imported 40V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity. The Flight Controller Stack Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.
  • The Use of 65A 4in1 ESC Dual Pad Design Ensures that the Pads are Kept Away From the Components, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring Perfect Soldering for Beginners.
  • The Flight Controller Stack Comes with Multiple Mounts, Saving Time, Effort, and Convenient Operation. The Flight Controll Board Comes with a Built-in Direct Insertion LED Light Socket and Also Supports the Transmission of Telemetry Data from Electric Propulsion Systems.
  • Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
0.0 (0 Reviews)
0 Sold
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Color:
    ESC
    FC
    Stack
Quantity:
-
+
Add to Favorites (0)

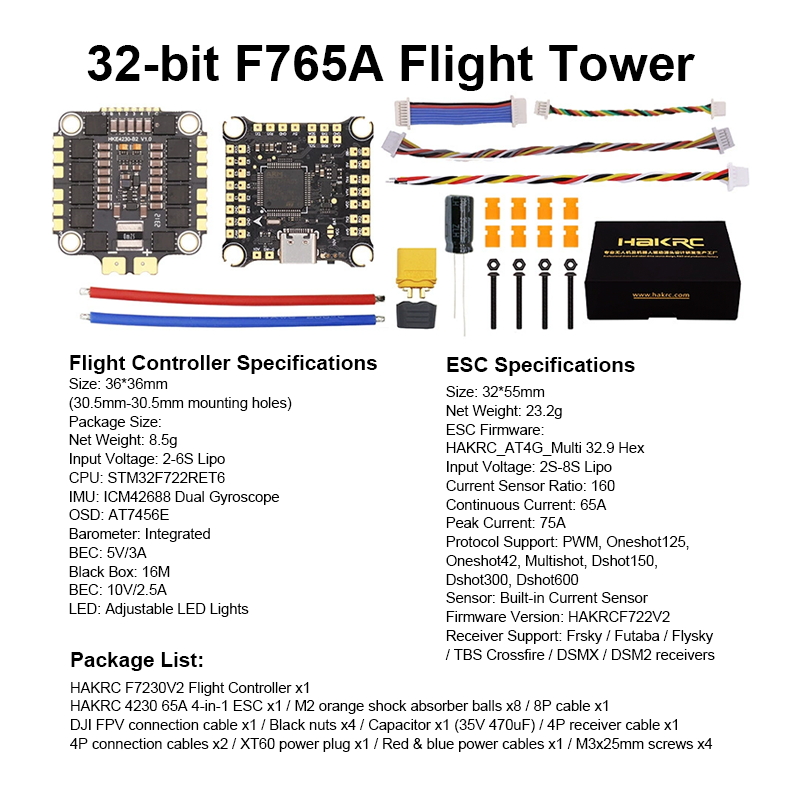

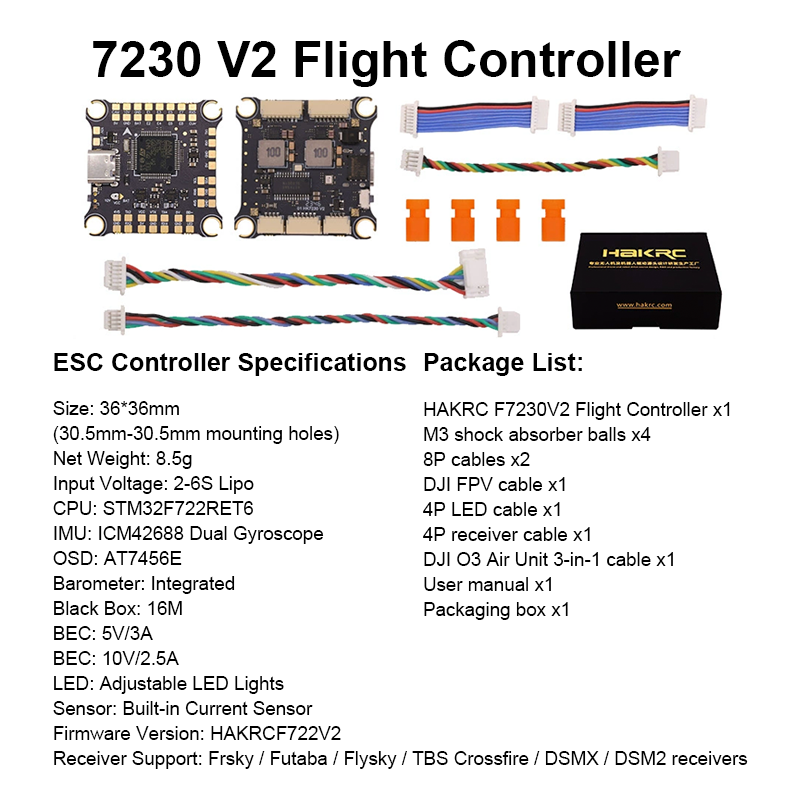

7230 V2 Flight Controller Parameters：

Size: 36*36mm

Mounting Holes: 30.5*30.5mm

Weight: 8.5g

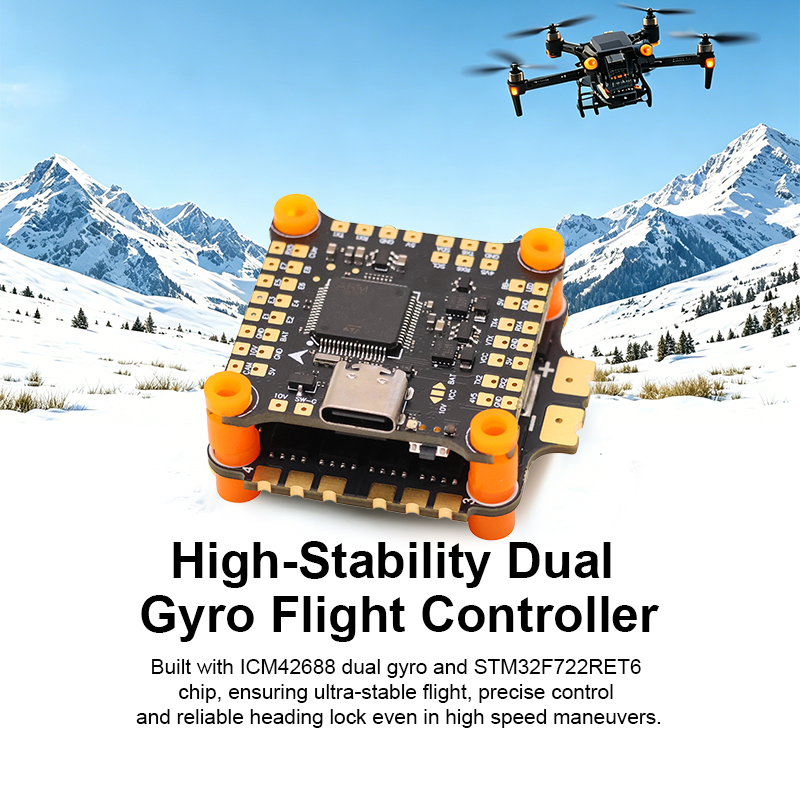

CPU: STM32F722RET6

IMU: ICM42688

OSD: AT7456E

BEC: 5V/3A; 10V/2.5A

Input Voltage: 2S-6S Lipo

Flight Controller Firmware: F722V2

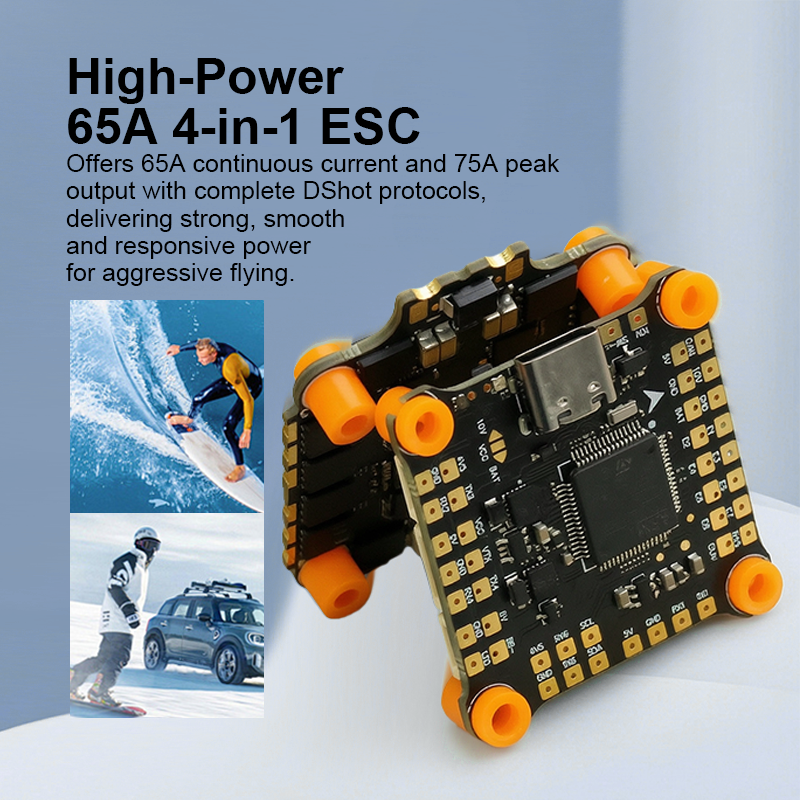

4230 65A 4in1 ESC Parameters：

Size: 40*43mm

Mounting Holes: 30*30mm

Weight: 14g

Input Voltage: 2S-8S Lipo

Continuous Current: 65A

Peak Current: 75A

Brushless ESC Firmware: AT4G_Multi_32.9 Hex

  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
1/1
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • F722 65A Flight Controller Stack 7230 V2 Flight Controller with Integrating 5V/10V Dual BEC 4230 65A 8S 4in1 ESC for FPV Racing Drones Parts
  • Description

7230 V2 Flight Controller Parameters：

Size: 36*36mm

Mounting Holes: 30.5*30.5mm

Weight: 8.5g

CPU: STM32F722RET6

IMU: ICM42688

OSD: AT7456E

BEC: 5V/3A; 10V/2.5A

Input Voltage: 2S-6S Lipo

Flight Controller Firmware: F722V2


4230 65A 4in1 ESC Parameters：

Size: 40*43mm

Mounting Holes: 30*30mm

Weight: 14g

Input Voltage: 2S-8S Lipo

Continuous Current: 65A

Peak Current: 75A

Brushless ESC Firmware: AT4G_Multi_32.9 Hex
