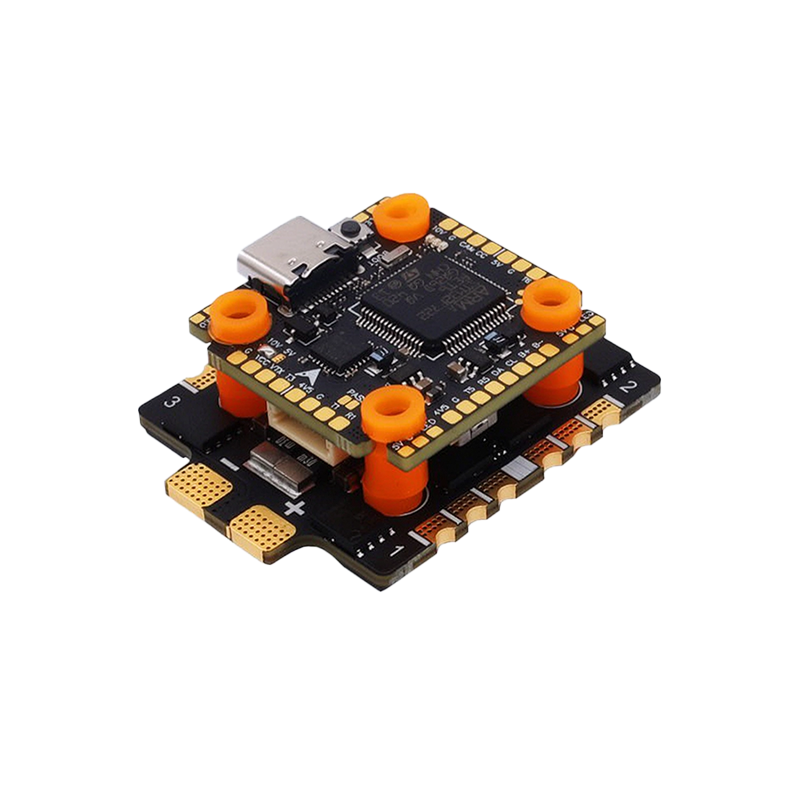

F722 65A 8S Flight Controller Stack F7220 V2 Mini Flight Controller with Integrating 5V/10V Dual BEC 3220 65A 4in1 ESC for FPV Racing Freestyle Drones Parts
No.YQHK036

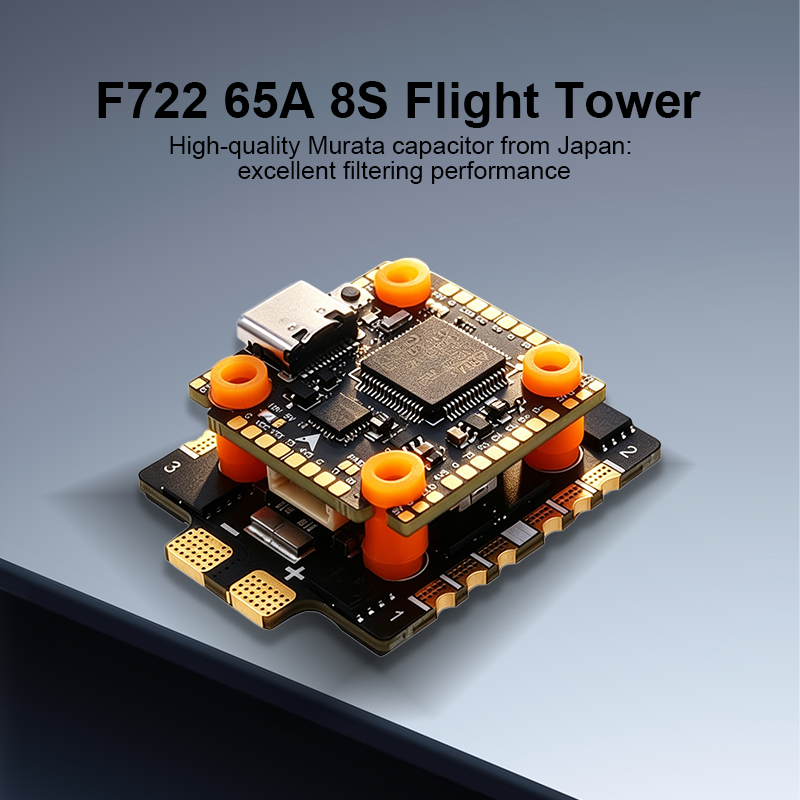

- The 4in1 ESC Adopts Imported 40V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity. F722 Flight Controller Stack Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.
- High Performance Flight Controller for Drone Integrating 5V/10V Dual BEC, 10VBEC can Provide Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.

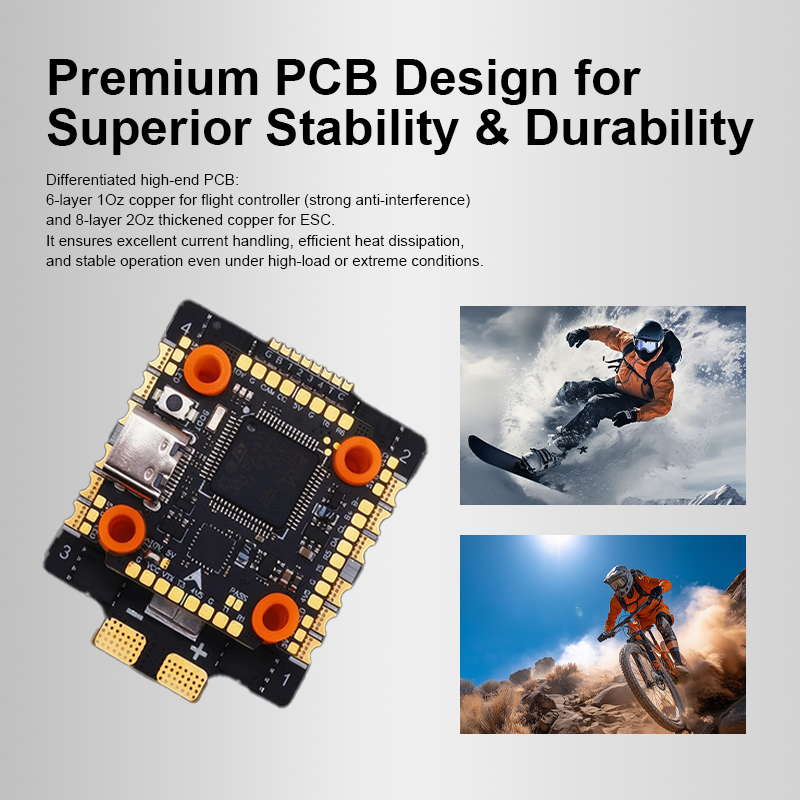

- The Flight Controller Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, The Flight Controller Drone Parts Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- The Flight Controller for Drone 4in1 ESC Advanced Chip Technology, Featuring a High-Performance Processor that Delivers Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- Widely Used: The Flight Controller Stack Suitable for Emergency Rescue, Medical First Aid, Industrial Safety Production, Cultural Media, Scientific Exploration, Photographer, and Drone Racing.
(0 Reviews)
0 Sold

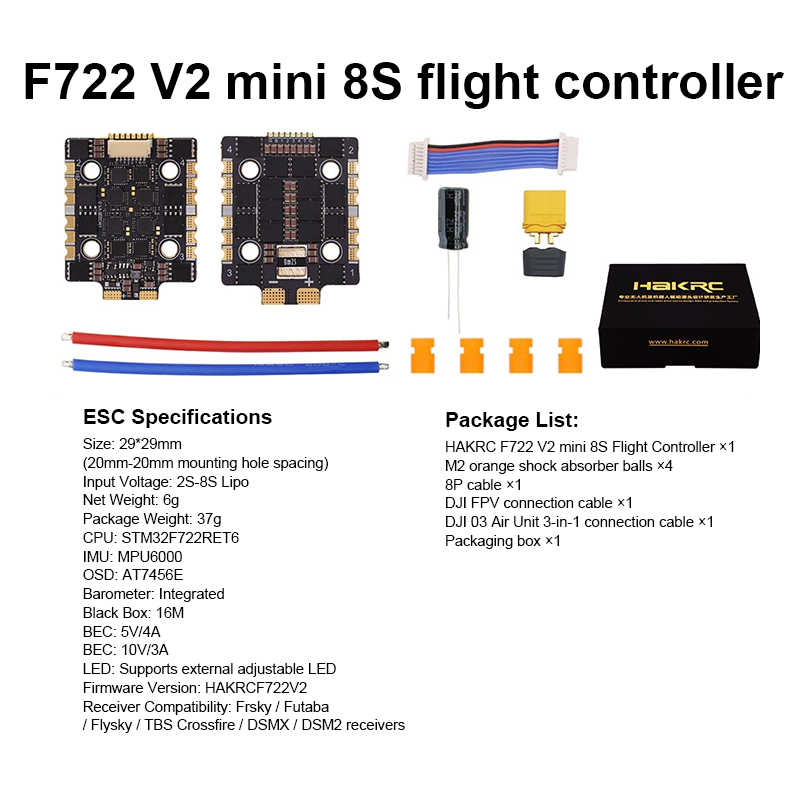

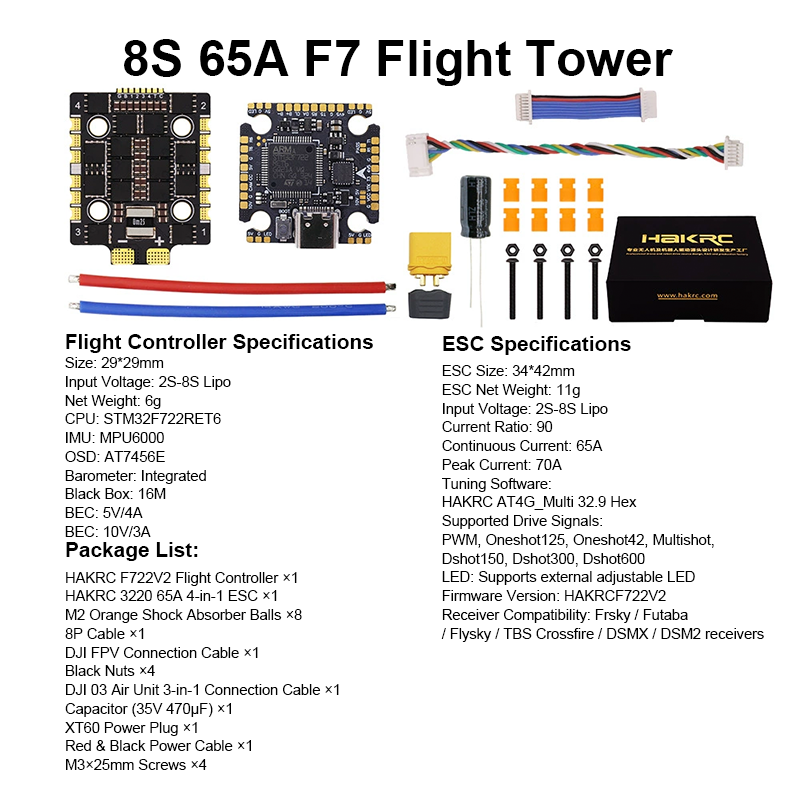

F7220 V2 Flight Controller Parameters：
Size: 29*29mm
Mounting Holes: 20*20mm
Weight: 6g
CPU: STM32F722RET6
IMU: MPU6000
OSD: AT7456E
BEC: 5V/4A; 10V/3A
Input Voltage: 2S-8S Lipo
Flight Controller Firmware: F722V2

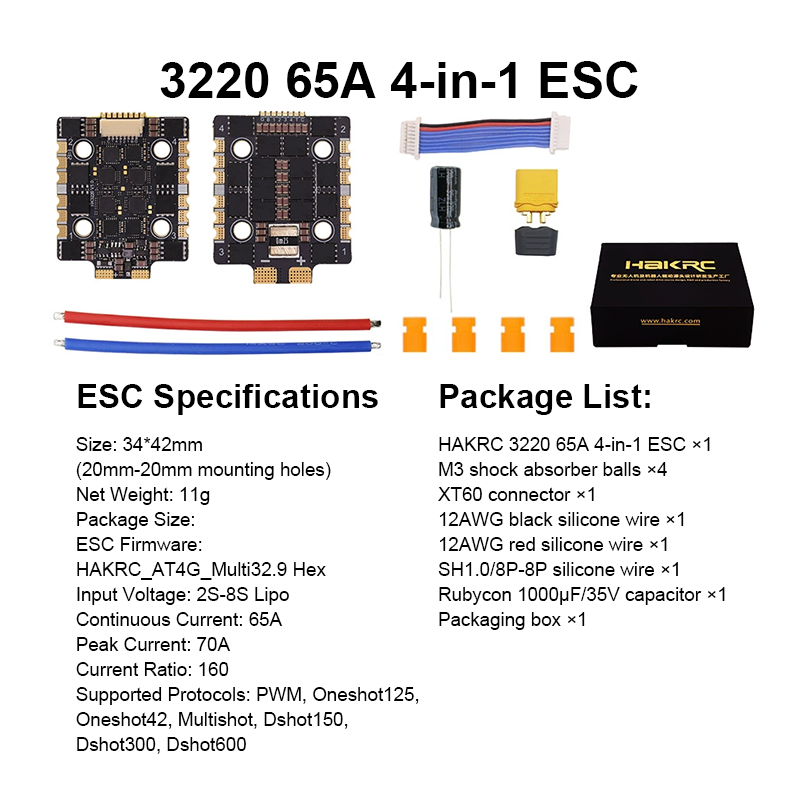

3220 65A 4in1 ESC Parameters：
Size: 34*42mm
Mounting Holes: 20*20mm
Weight: 11g
Input Voltage: 2S-8S Lipo
Continuous Current: 65A
Peak Current: 70A
Brushless ESC Firmware: AT4G_Multi_32.9 Hex
