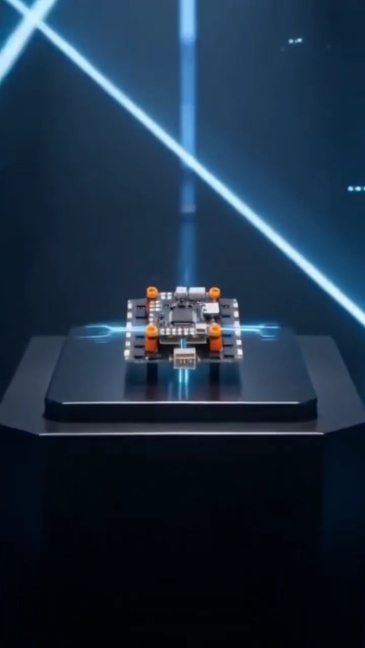

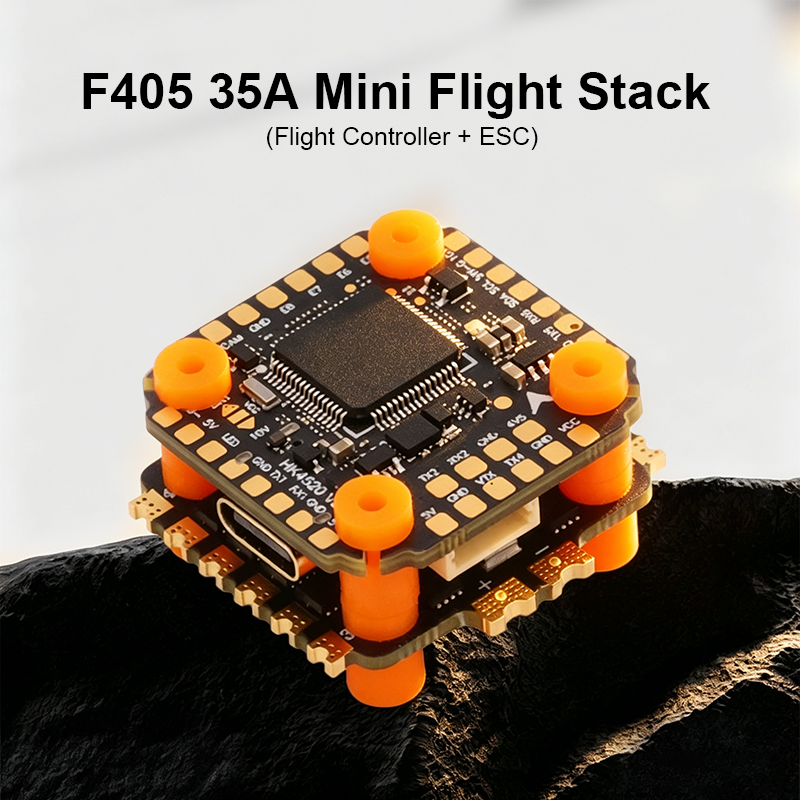

F405 Mini Flight Controller Stack F405 Flight Controller with Integrating 5V/10V Dual BEC 35A 6S 4in1 ESC for FPV Racing Drones Parts
No.YQHK043
- The Flight Controller Stack Features a High-Performance Processor, Enabling Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- High Performance Flight Controller Drone Parts Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- The Flight Controller for Drones Integrates a 5V/10V Dual BEC, with the 10V BEC Providing Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation, While the 4in1 ESC Brushless ESC Adopt Imported 30V High Current Resistance MOS, Offering a Long Lifespan and Strong Load Capacity.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to Us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

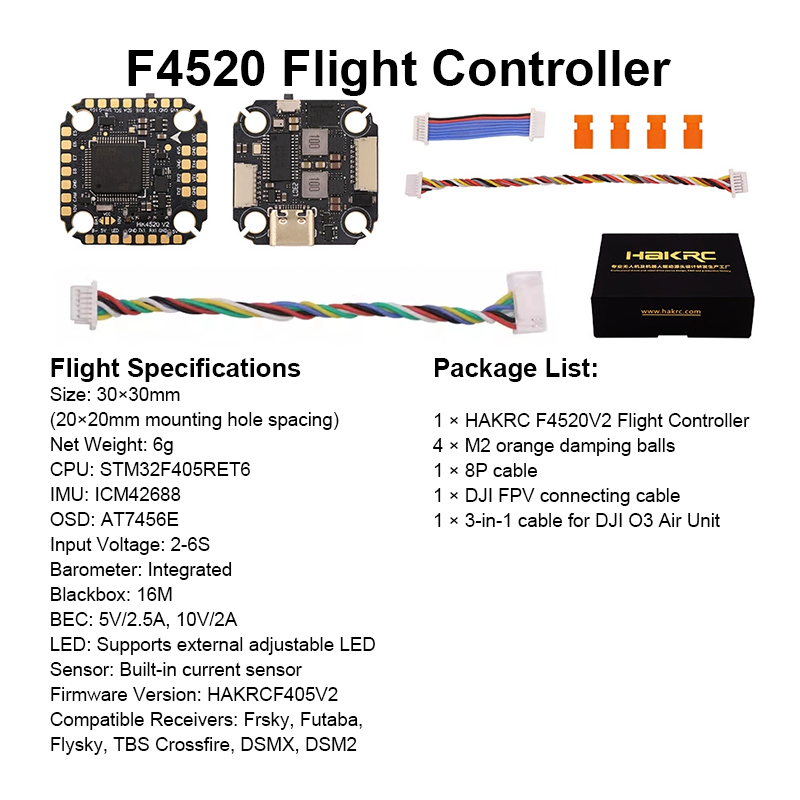

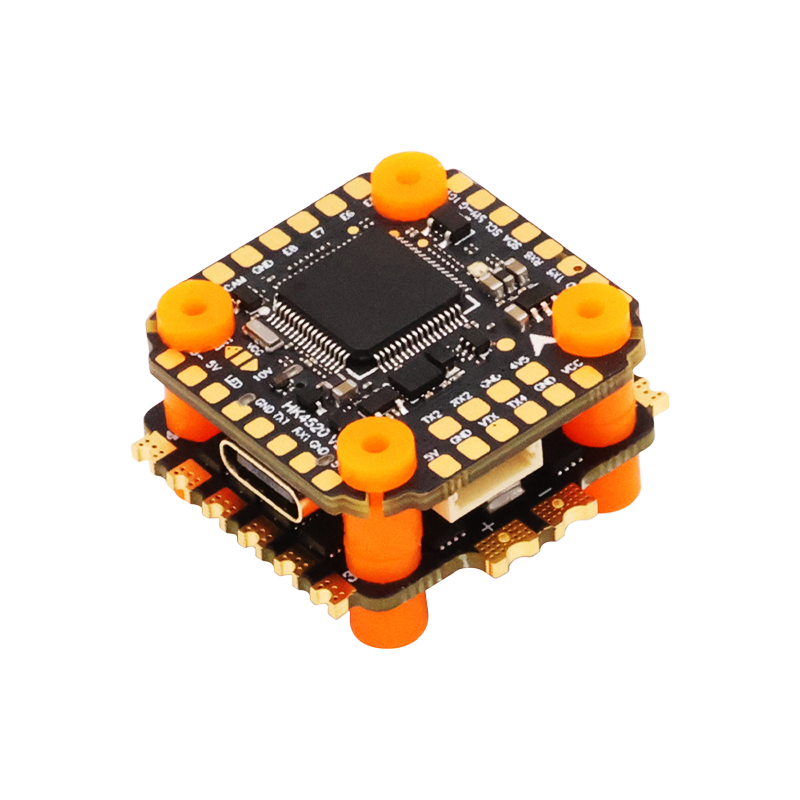

F4520 Flight Controller Parameters：

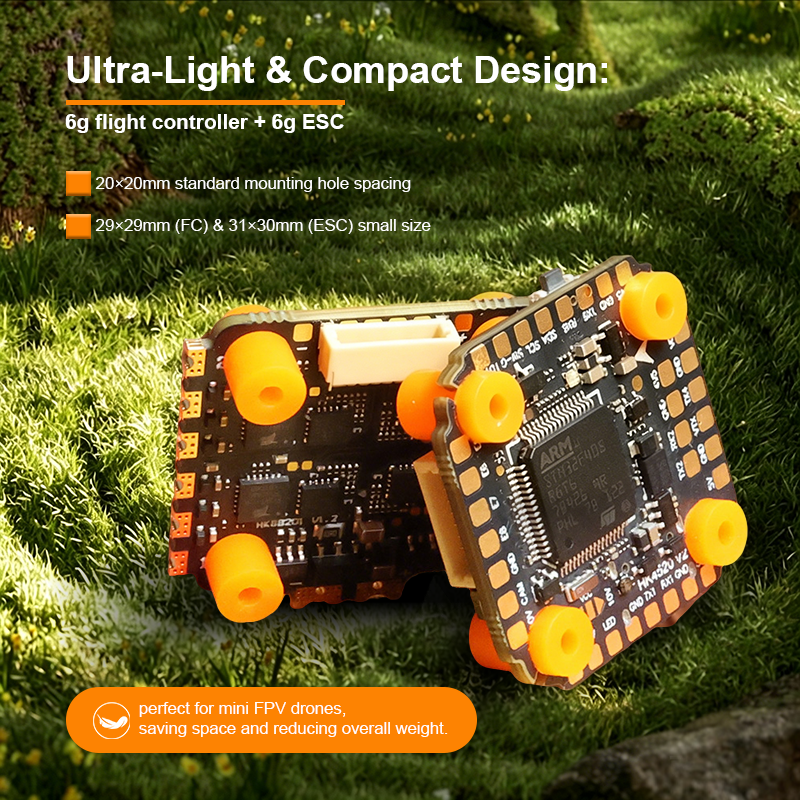

Size: 29*29mm
Mounting Holes: 20*20mm
Weight: 6g

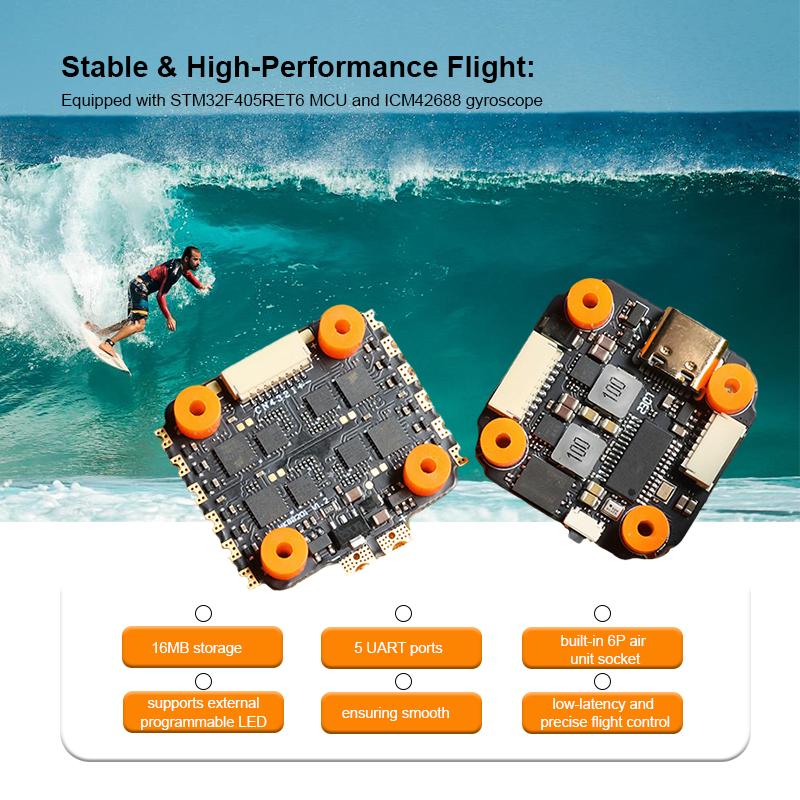

CPU: STM32F405RET6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/2.5A; 10V/2A
Input Voltage: 2-6S Lipo
Flight Controller Firmware: F405V2

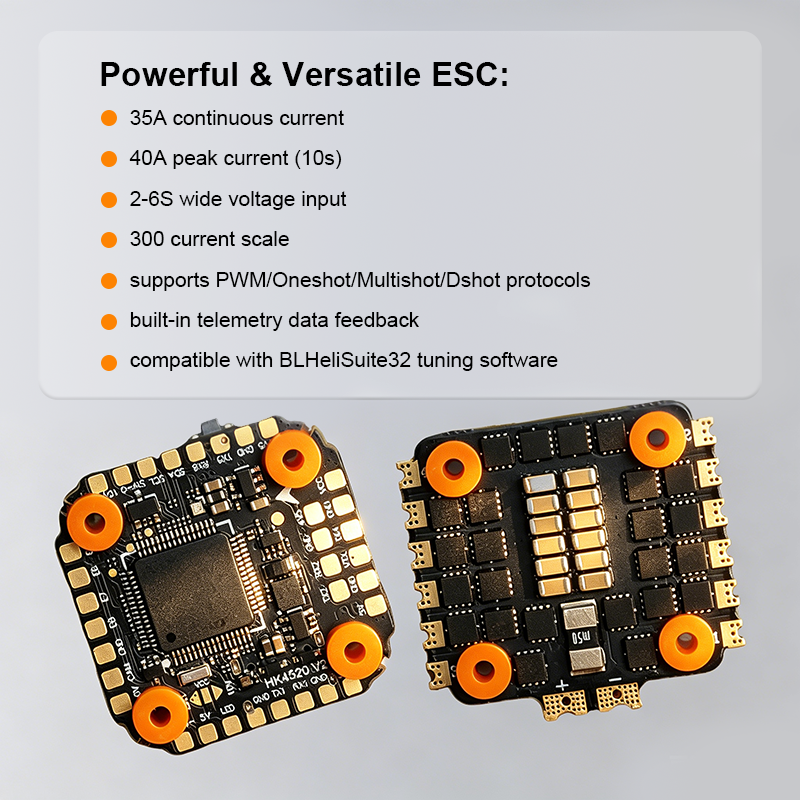

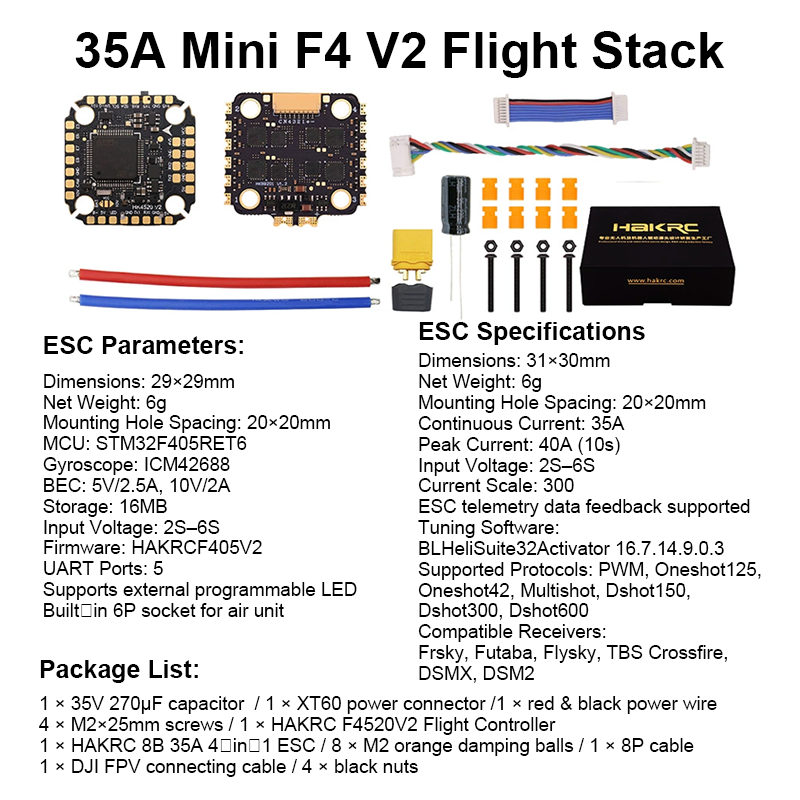

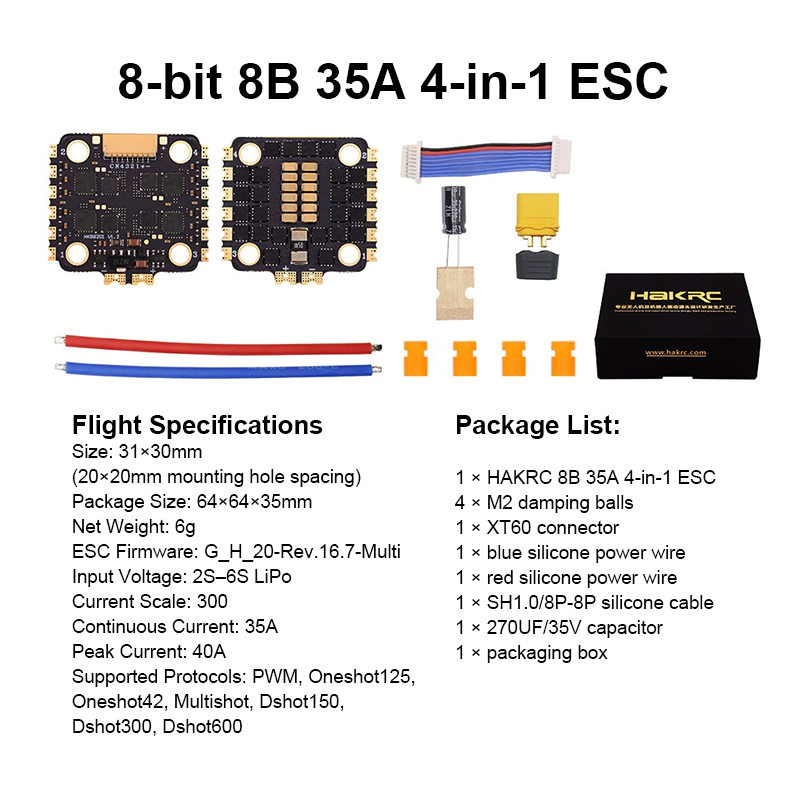

35A 4in1 ESC Parameters：
Size: 31*30mm
Mounting Holes: 20*20mm
Weight: 6g
Input Voltage: 2-6S Lipo
Continuous Current: 35A
Peak Current: 40A
Brushless ESC Firmware: G_H_20-Rev.16.7-Multi
