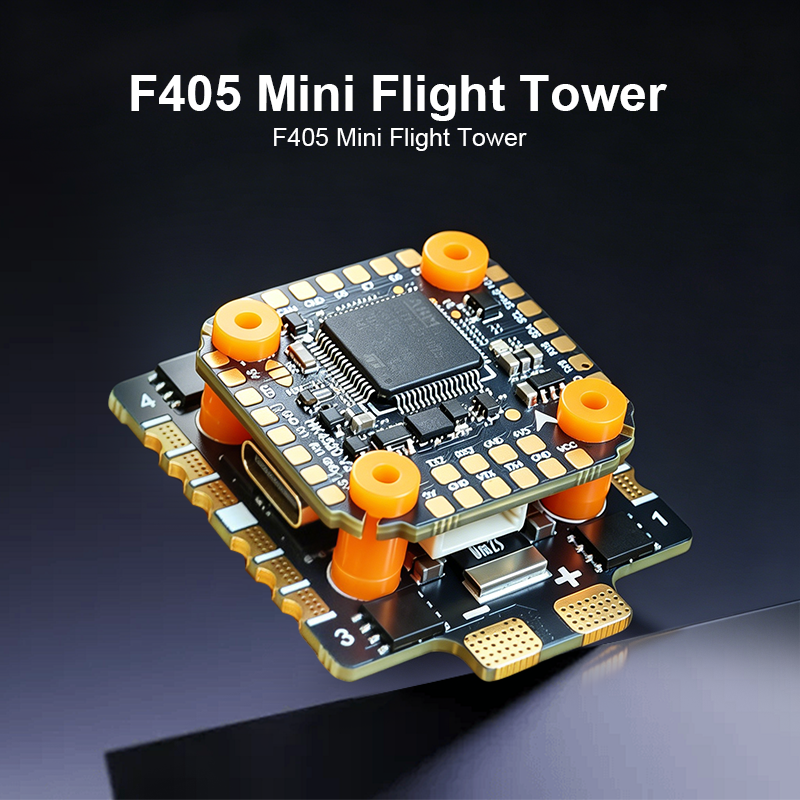

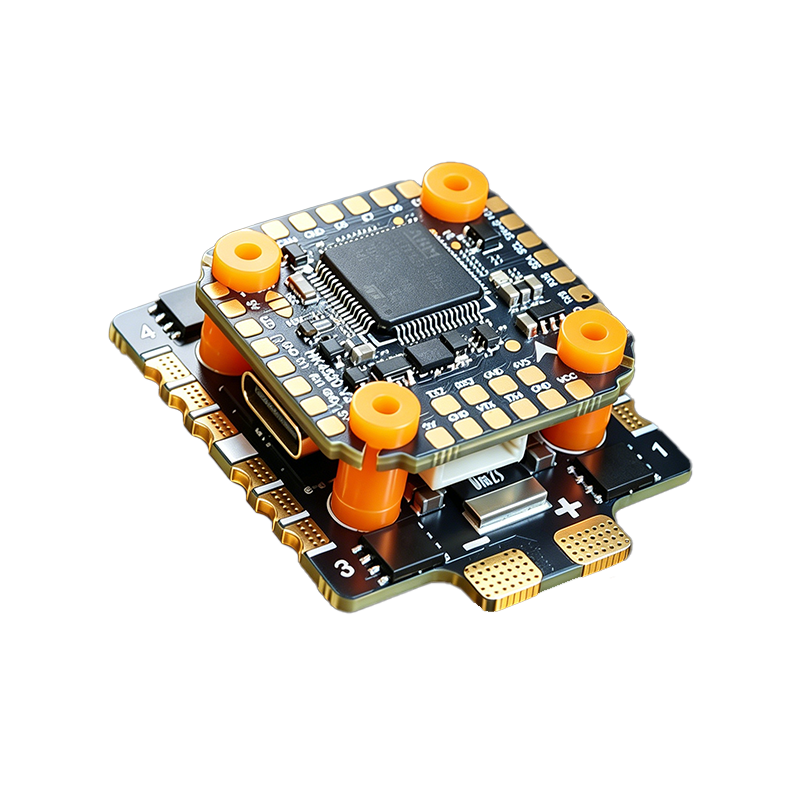

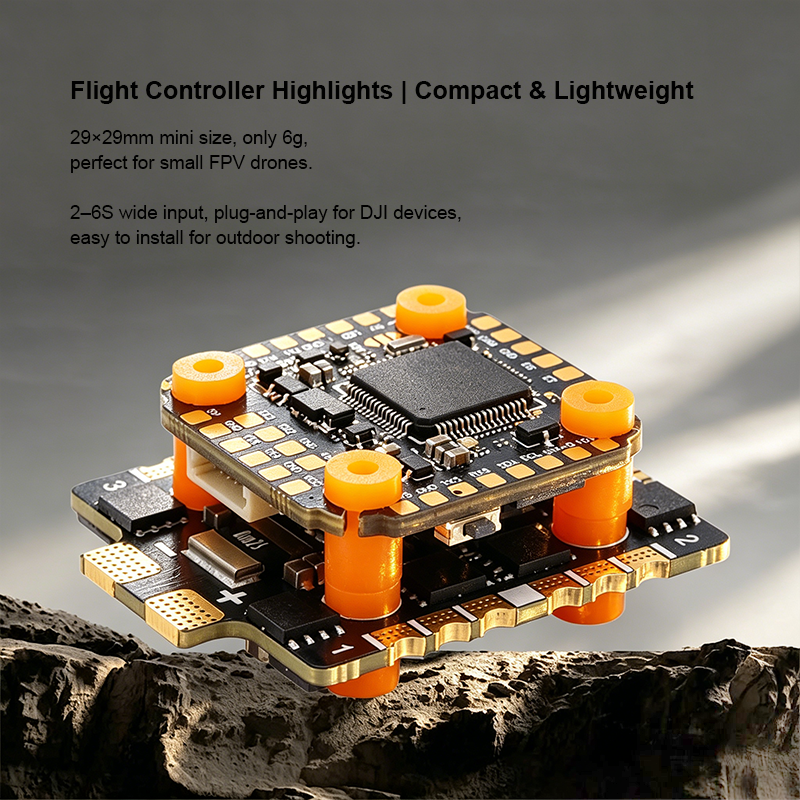

F405 Flight Controller with Integrating 5V/10V Dual BEC 65A 8S 4in1 ESC Brushless ESC F405 Flight Controller Stack for FPV Racing Freestyle Drone Parts
No.YQHK039
- The Flight Controller 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, The Flight Controller Drone Parts Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- The Flight Controller Stack Advanced Chip Technology, Featuring a High-Performance Processor that Delivers Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- High Performance Flight Controller for Drone Integrating 5V/10V Dual BEC, 10VBEC can Provide Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
- The Flight Controller Drone Parts Adopts Imported 40V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity.
- The Flight Controller Stack Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.
(0 Reviews)
0 Sold

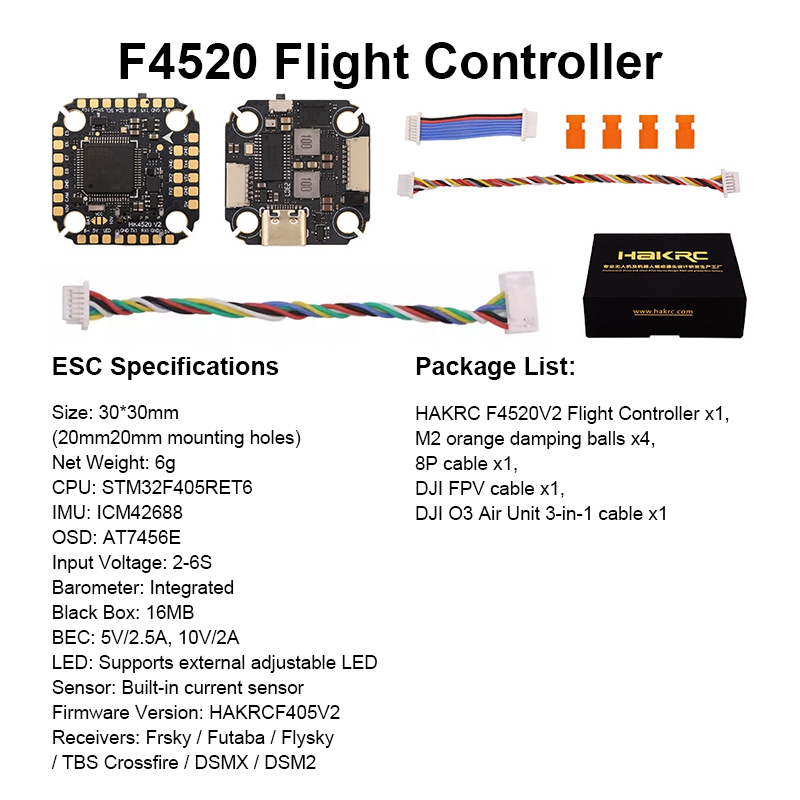

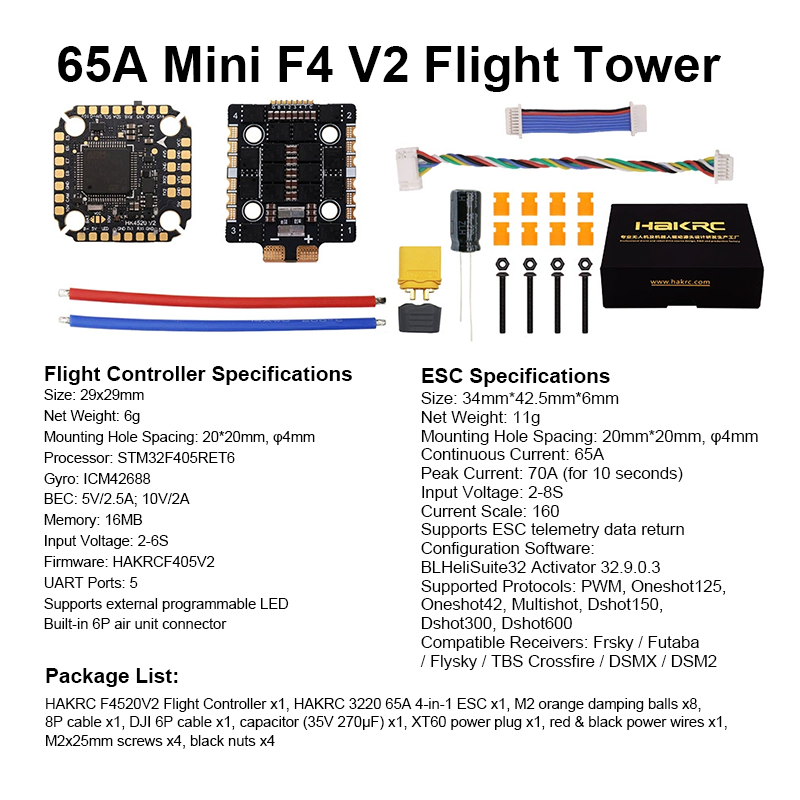

F405 Flight Controller Parameters：
Size: 30*30mm
Mounting Holes: 20*20mm
Weight: 6g
CPU: STM32F405RET6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/2.5A; 10V/2A
Input Voltage: 2-6S Lipo
Flight Controller Firmware: F405V2

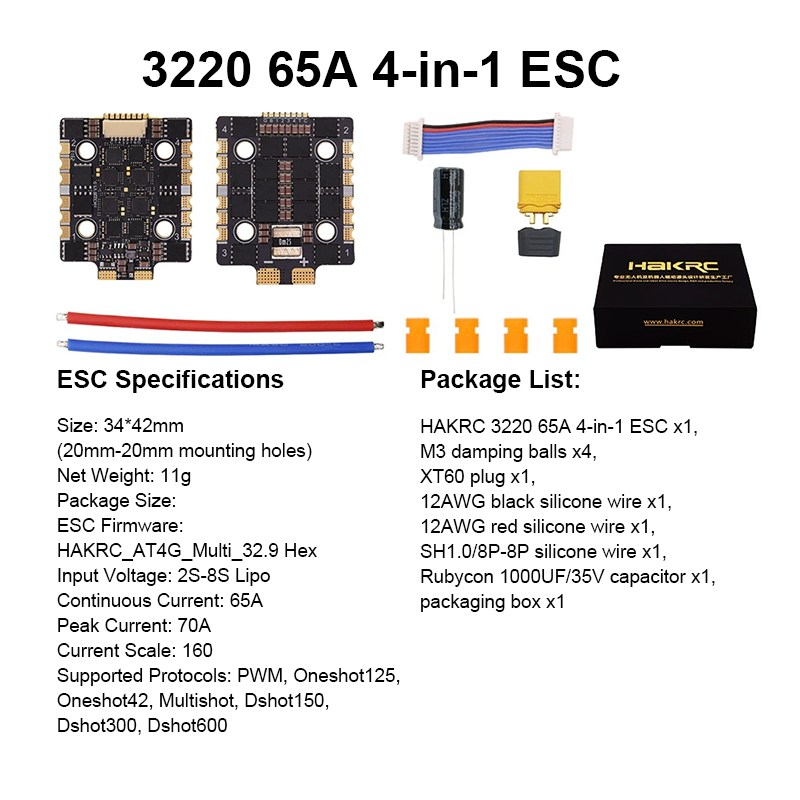

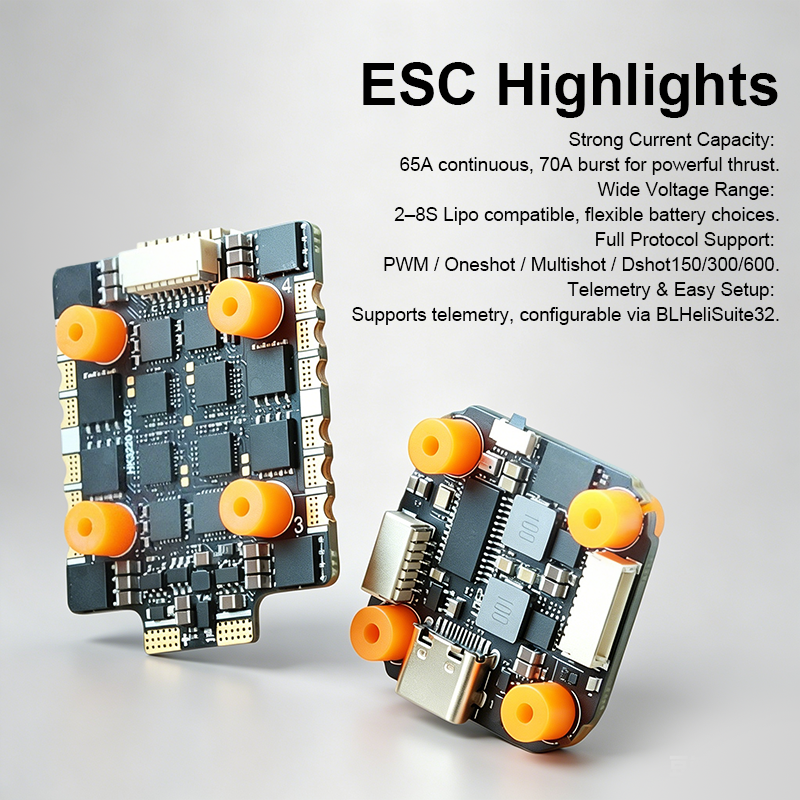

65A 8S 4in1 ESC Parameters：
Size: 34*42mm
Mounting Holes: 20*20mm
Weight: 11g
Input Voltage: 2-8S Lipo
Continuous Current: 65A
Peak Current: 70A
Brushless ESC Firmware: AT4G_Multi_32.9 Hex
