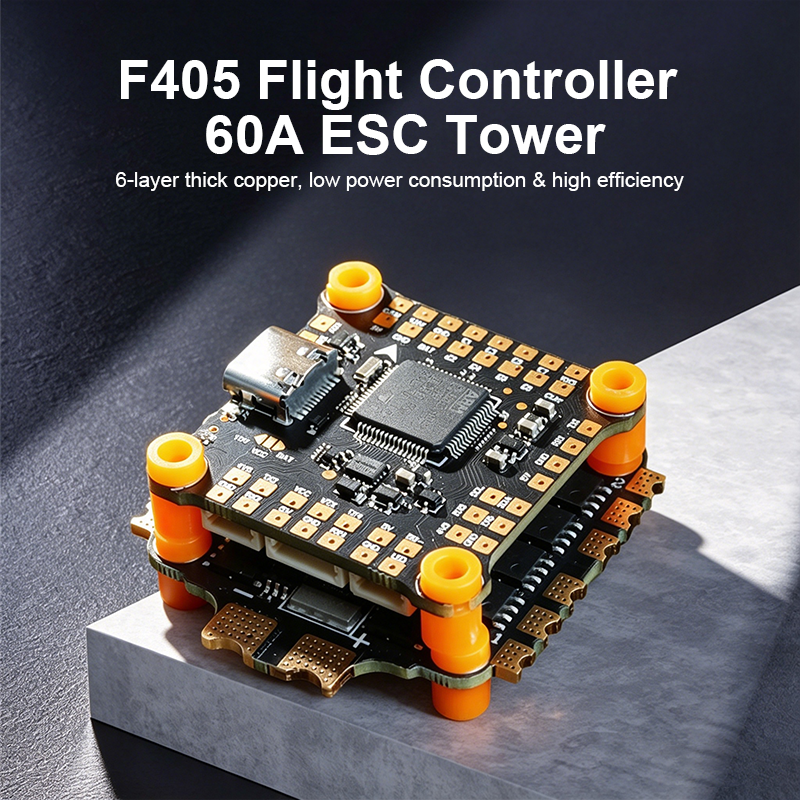

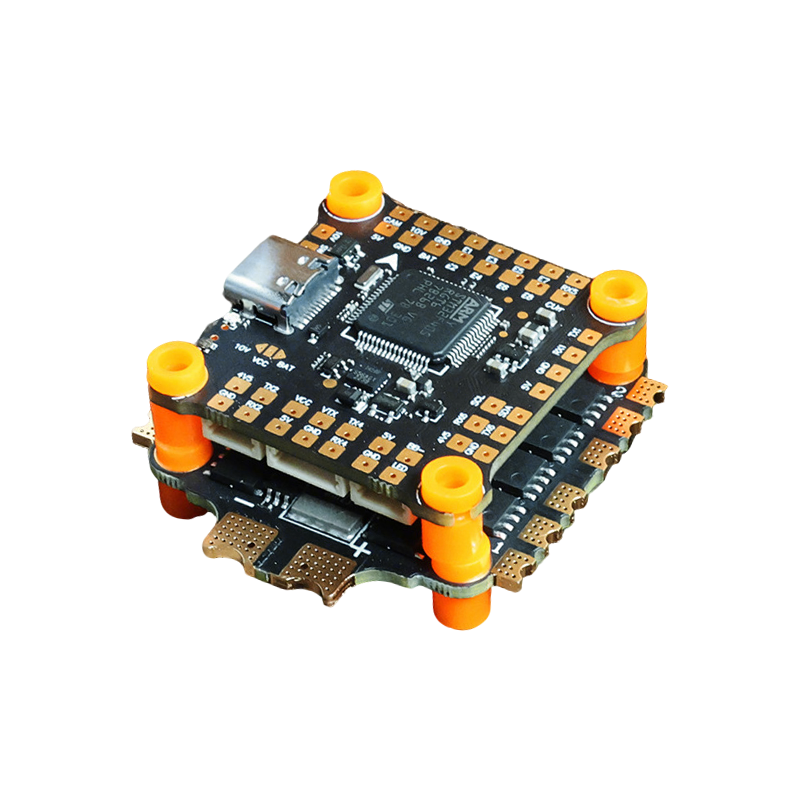

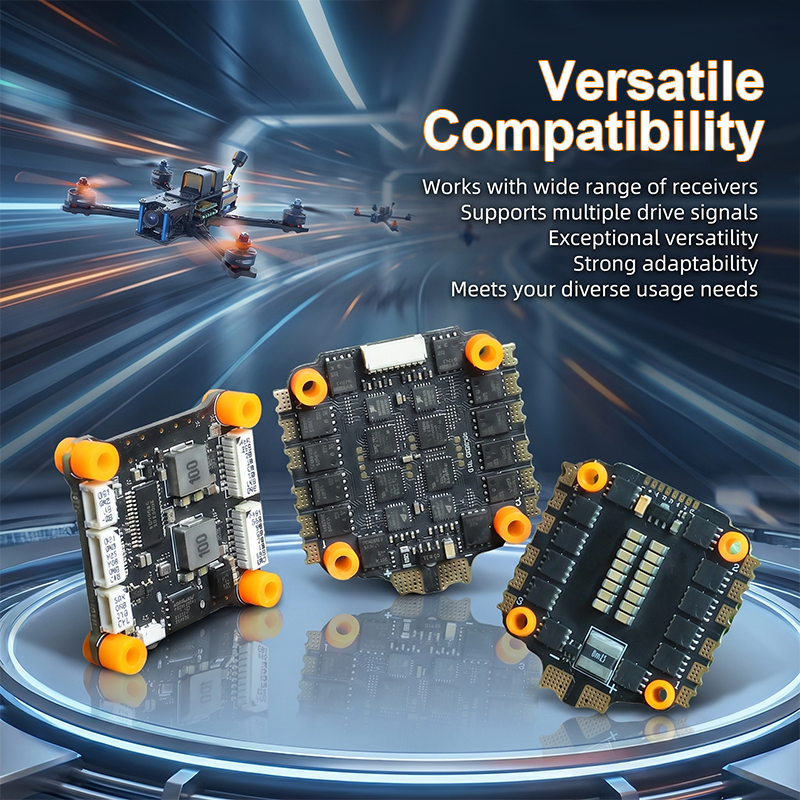

F405 Flight Controller with Integrating 5V/10V Dual BEC 60A 4in1 ESC Mini Flight Controller Stack for FPV Racing Drones Parts
No.YQHK048
- The Flight Controller Drone Parts Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The Flight Controller for Drone 4in1 ESC Advanced Chip Technology, Featuring a High-Performance Processor that Delivers Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- High Performance F405 Flight Controller Integrates a 5V/10V Dual BEC, with the 10V BEC Providing Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
- The 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, The Flight Controller Stack Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- Customer Services: If You Receive a Damaged Item or Encounter Quality Issues, Please Do Not Hesitate to Reach Out to Us for Assistance. We Are Committed to Ensuring a Satisfying Customer Experience.
(0 Reviews)
0 Sold

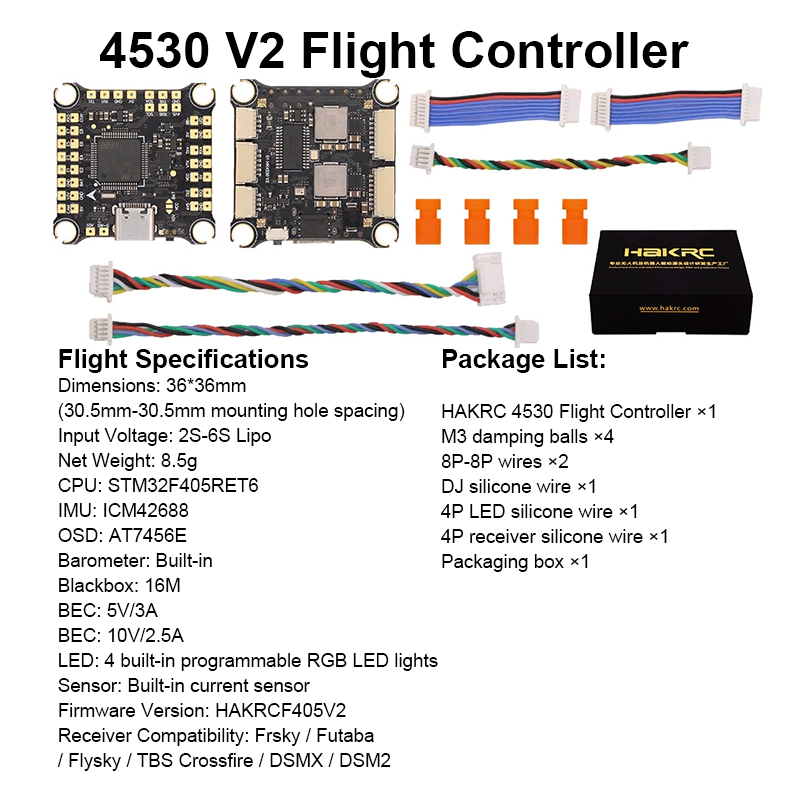

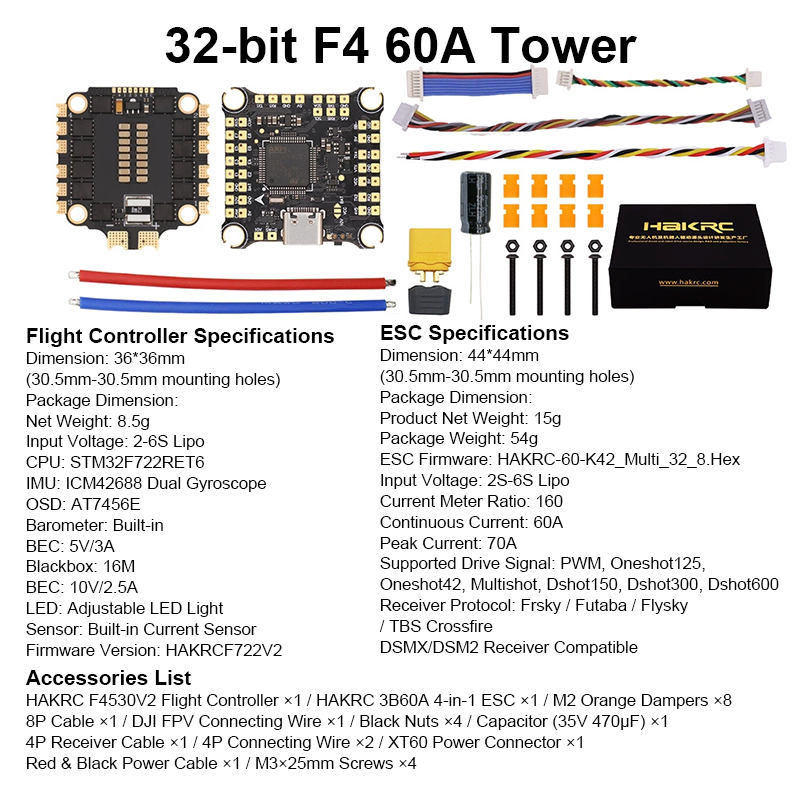

F405 Flight Controller Parameters：
Size: 36*36mm
Mounting Holes: 30.5*30.5mm
Weight: 8.5g
CPU: STM32F405RGT6
IMU: ICM42688
OSD: AT7456E
Black Box: 16M
BEC: 5V/3A; 10V/2.5A
Input Voltage: 2-6S Lipo
Flight Controller Firmware: F405V2

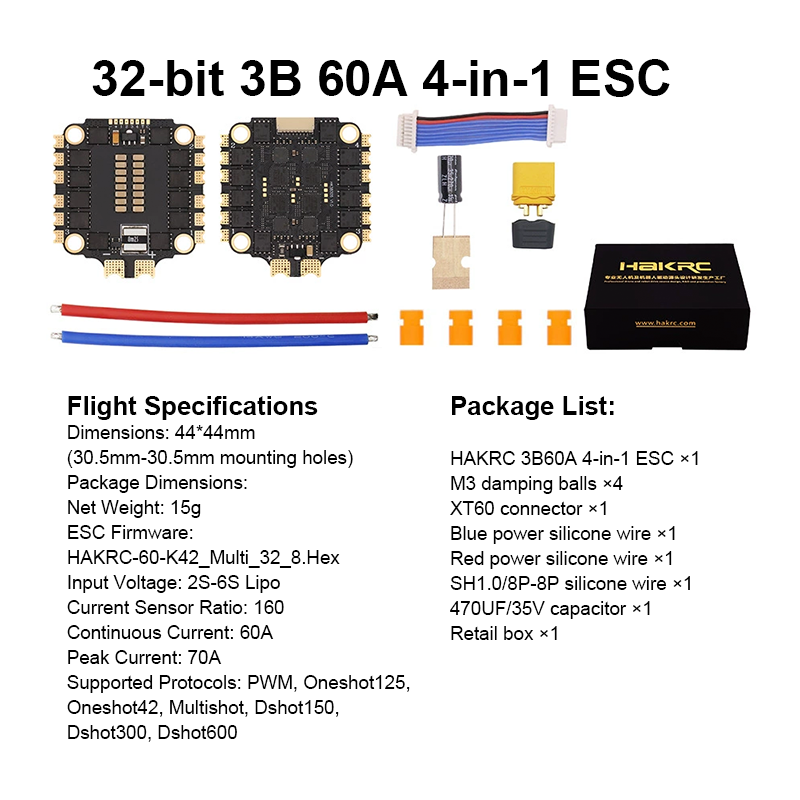

4in1 ESC Parameters：
Size: 44*44mm
Mounting Holes: 30.5*30.5mm
Weight: 15g
Input Voltage: 2-6S Lipo
Continuous Current: 60A
Peak Current: 70A
Brushless ESC Firmware: 60-K42_Multi_32_8.Hex
