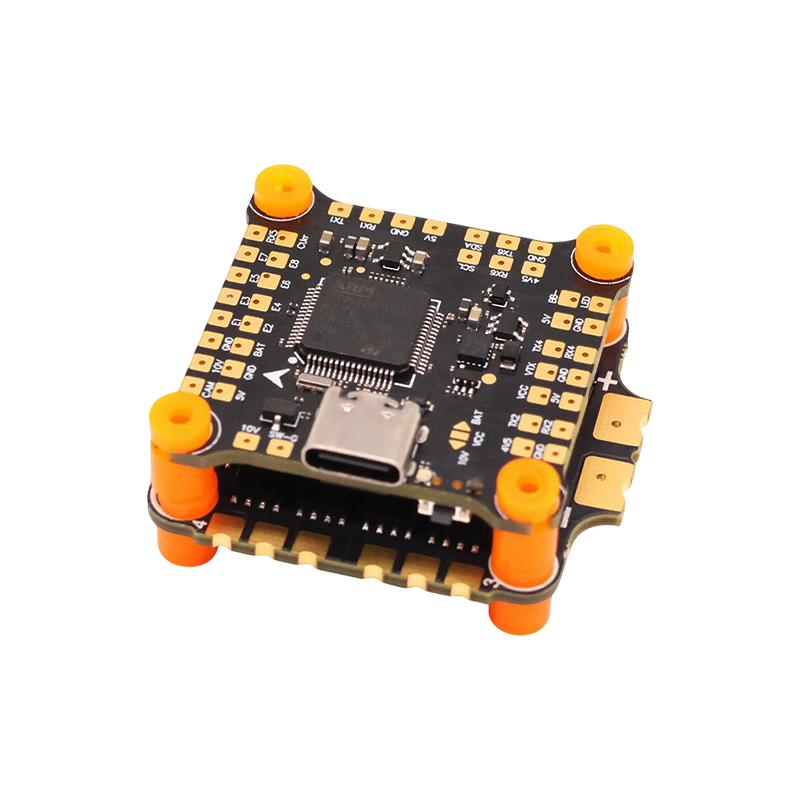

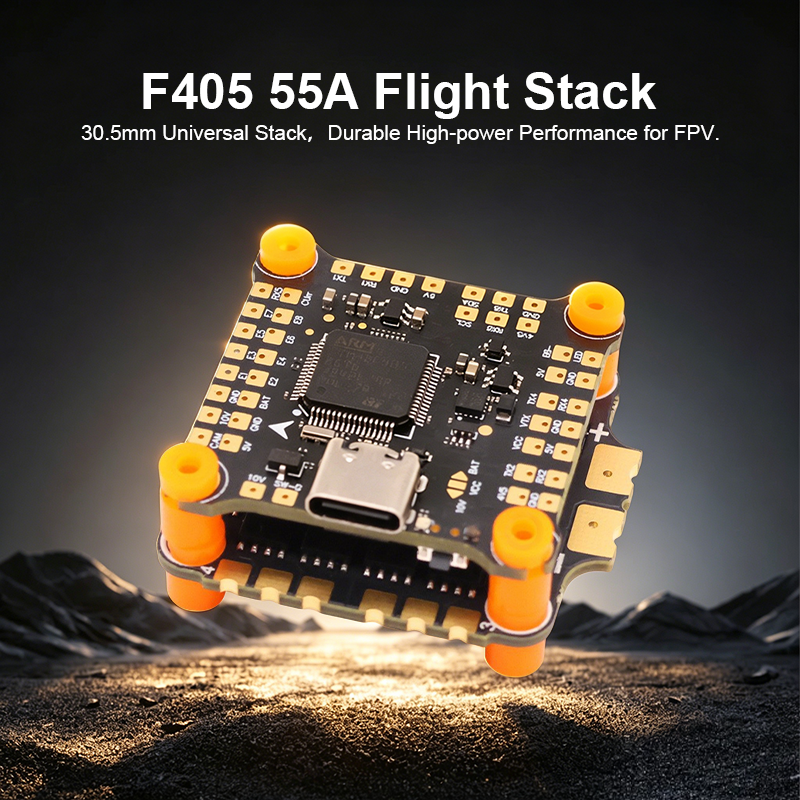

F405 Flight Controller with Integrating 5V/10V Dual BEC 55A 8S 4in1 ESC Brushless ESC Mini Flight Controller Stack for FPV Racing Drones Parts
No.YQHK044
- High Performance Flight Controller Drone Parts Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The Flight Controller Stack Features a High-Performance Processor, Enabling Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.

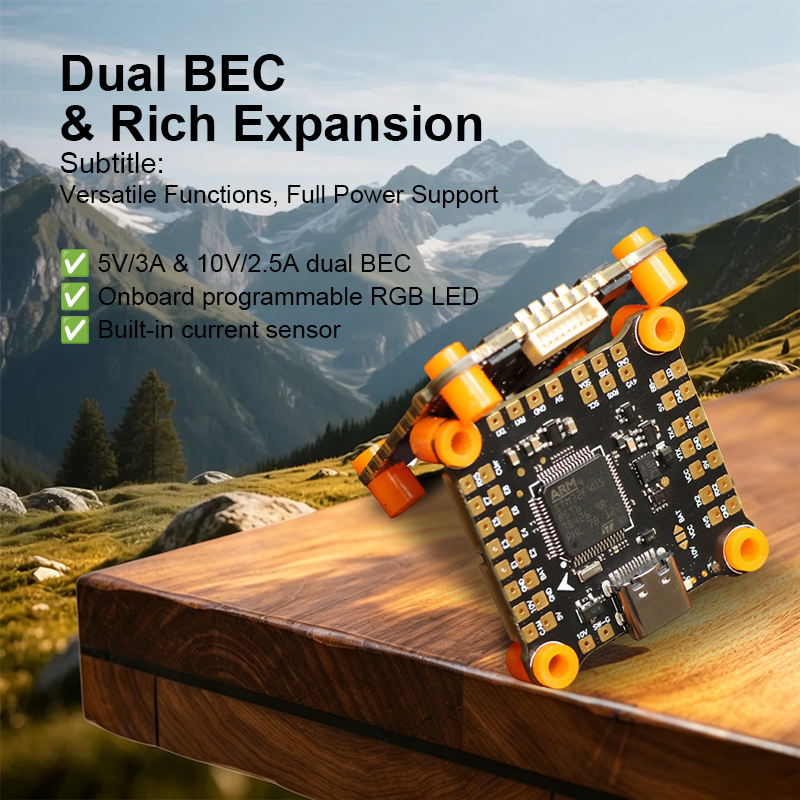

- The Flight Controller for Drones Integrates a 5V/10V Dual BEC, with the 10V BEC Providing Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation, While the 4in1 ESC Brushless ESC Adopt Imported 40V High Current Resistance MOS, Offering a Long Lifespan and Strong Load Capacity.
- Widely Applications: The F405 Flight Controller Suitable for Emergency Rescue, Medical First Aid, Industrial Safety Production, Cultural Media, Scientific Exploration, Photographer, and Drone Racing.
(0 Reviews)
0 Sold

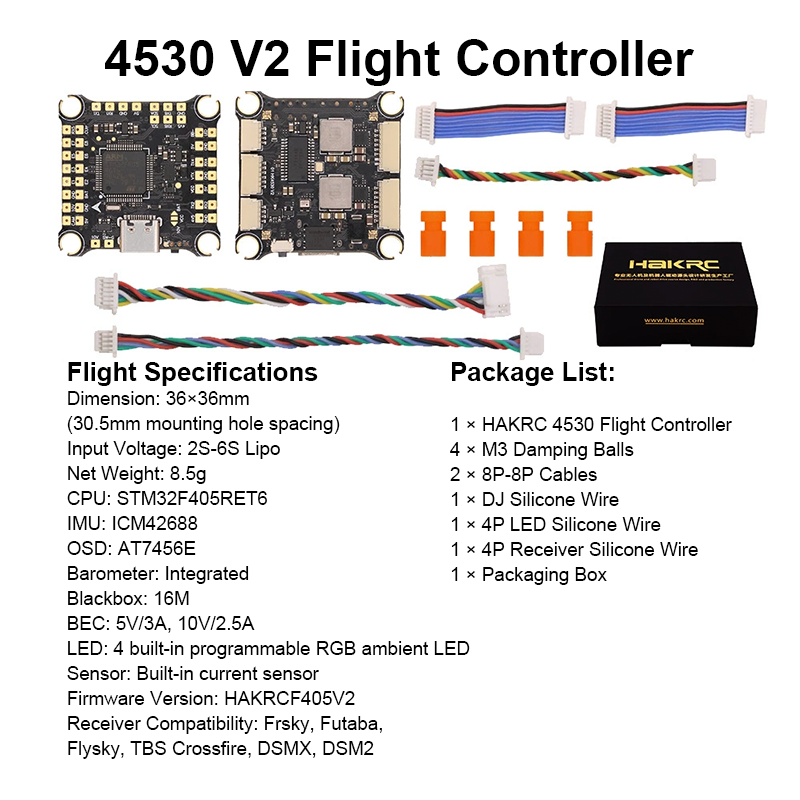

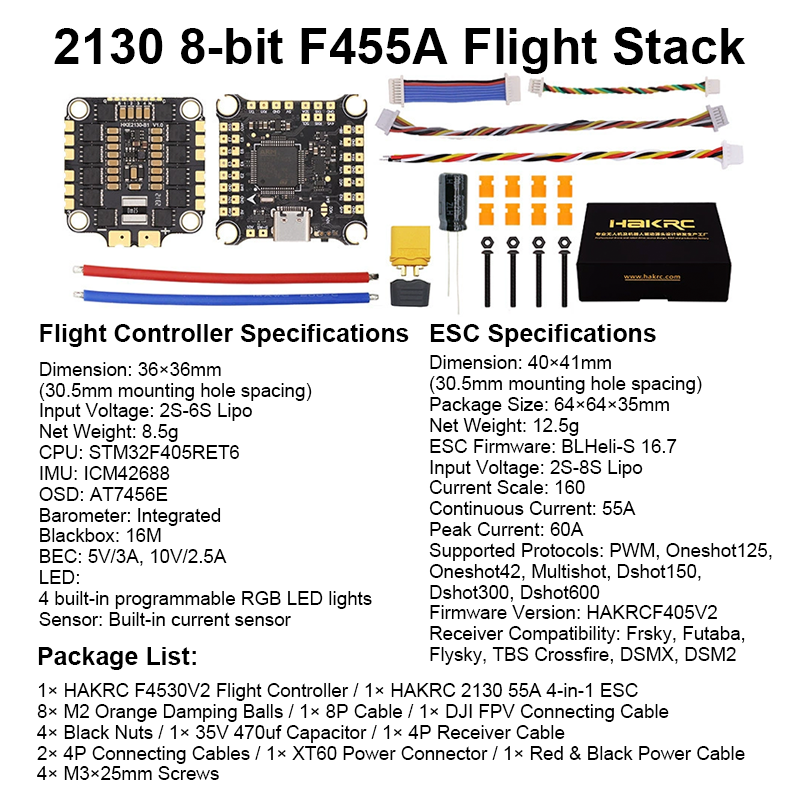

F405 Flight Controller Parameters：
Size: 36*36mm
Mounting Holes: 30.5*30.5mm
Weight: 8.5g
Black Box: 16M
CPU: STM32F405RGT6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/3A; 10V/2.5A
Input Voltage: 2S-6S Lipo
Flight Controller Firmware: F405V2

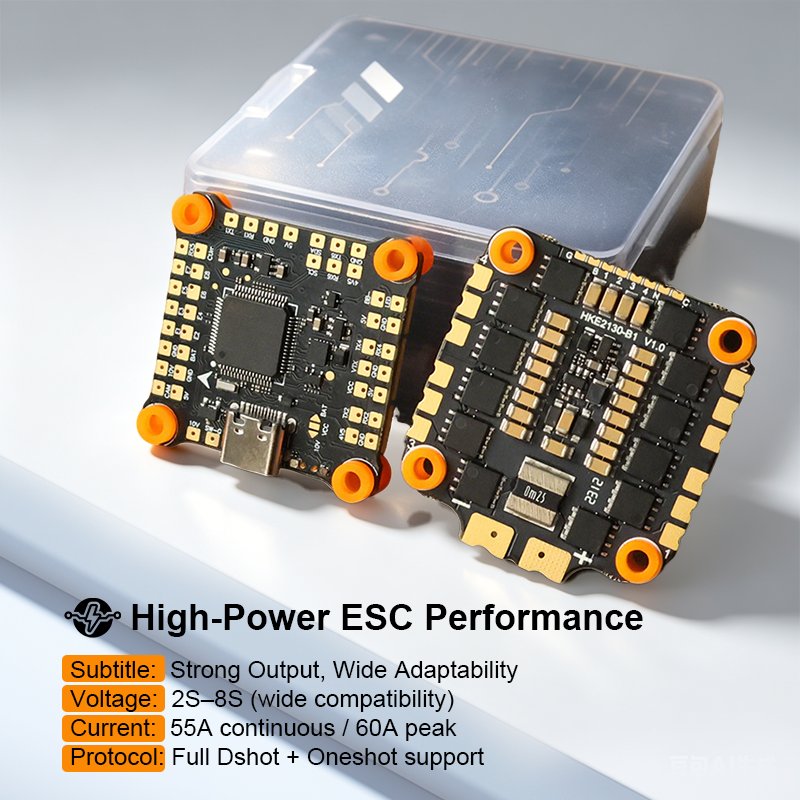

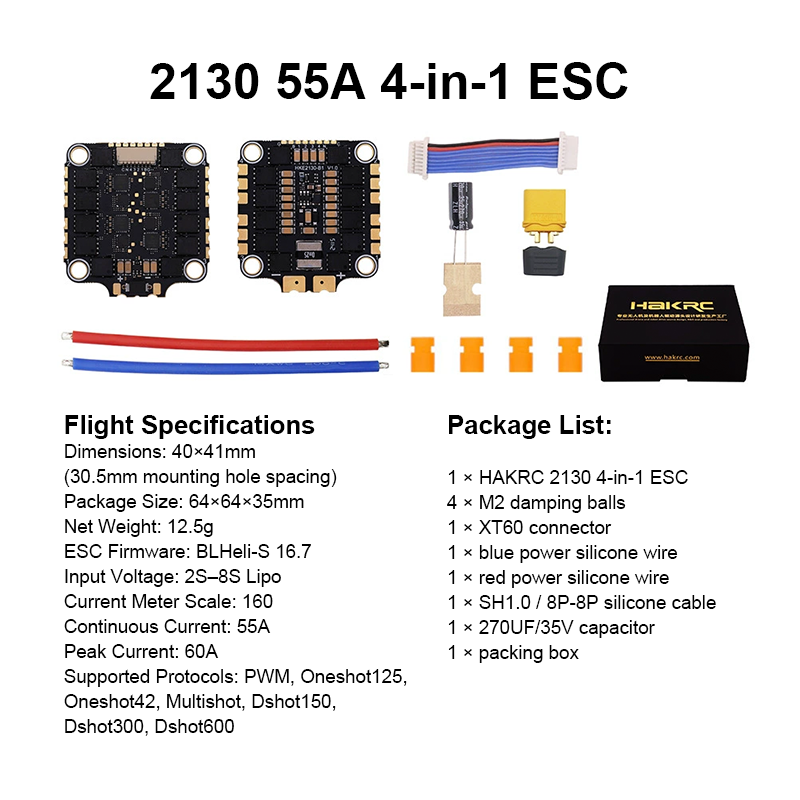

55A 4in1 ESC Parameters：
Size: 40*41mm
Mounting Holes: 30.5*30.5mm
Weight: 12.5g
Input Voltage: 2-8S Lipo
Continuous Current: 55A
Peak Current: 60A
Brushless ESC Firmware: BLHeli-S 16.7
