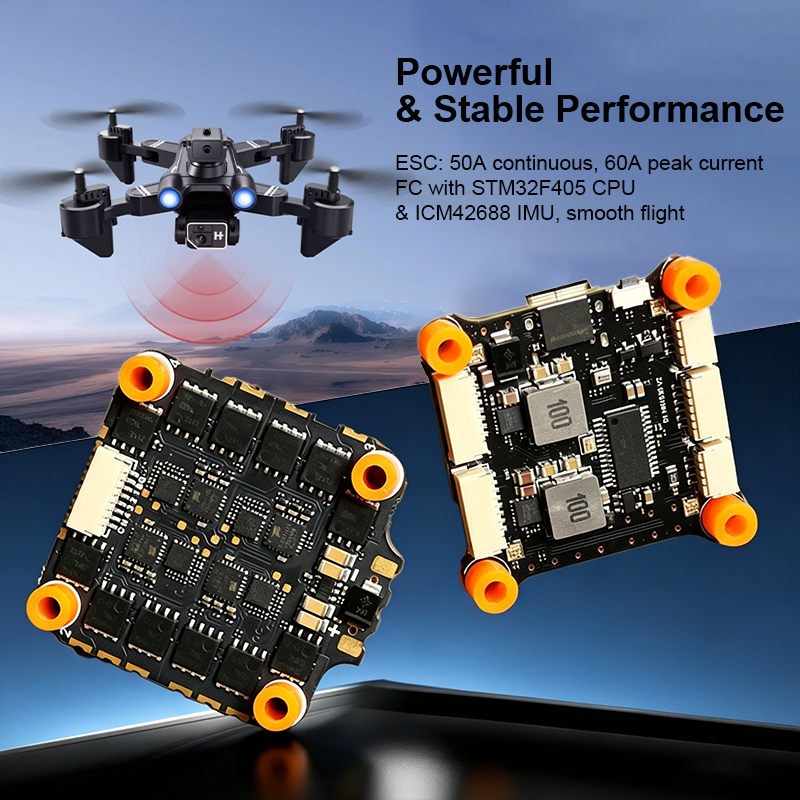

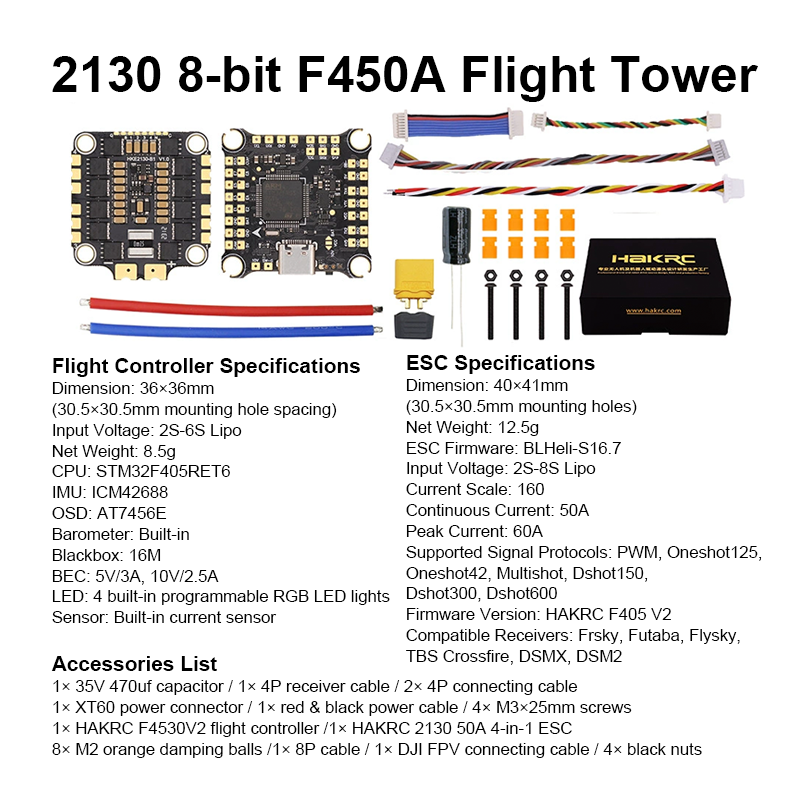

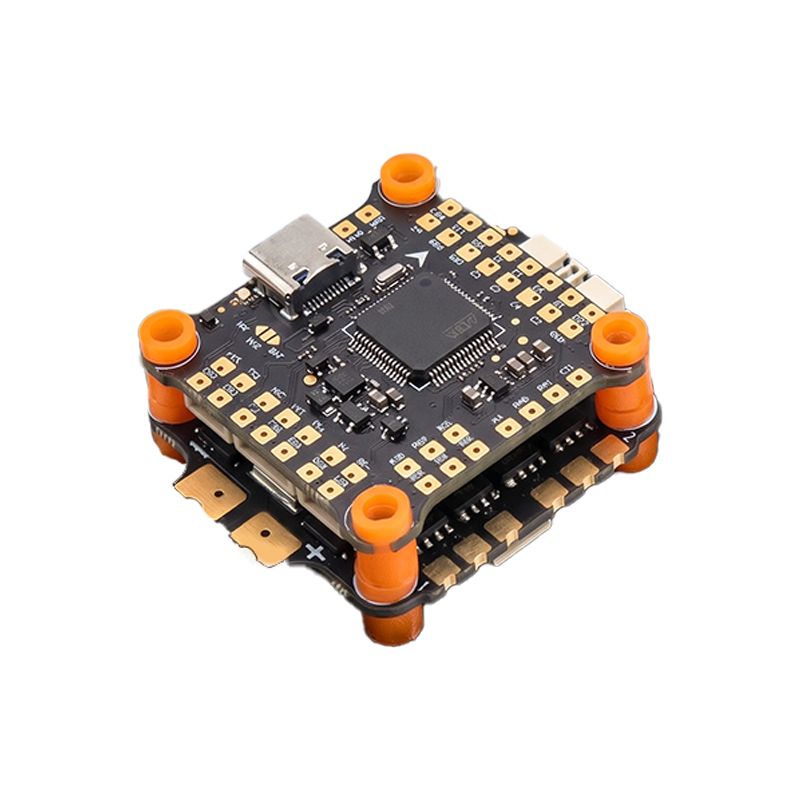

F405 Flight Controller 50A 6S 4in1 ESC Brushless ESC High Performance Mini Flight Controller Stack with Integrating 5V/10V Dual BEC for FPV Racing Drone Parts
No.YQHK047
- The Flight Controller Stack Features a High-Performance Processor, Enabling Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.
- The Flight Controller Drone Parts Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- High Performance Flight Controller for Drones Integrates a 5V/10V Dual BEC, with the 10V BEC Providing Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
- The F405 Flight Controller Adopt Direct-Connect Design for Plug-and-Play Operation Without Solder Pads, Enabling Modularity.
- Widely Applications: The Flight Controller Stack Suitable for Emergency Rescue, Medical First Aid, Industrial Safety Production, Cultural Media, Scientific Exploration, Photographer, and Drone Racing.
(0 Reviews)
0 Sold

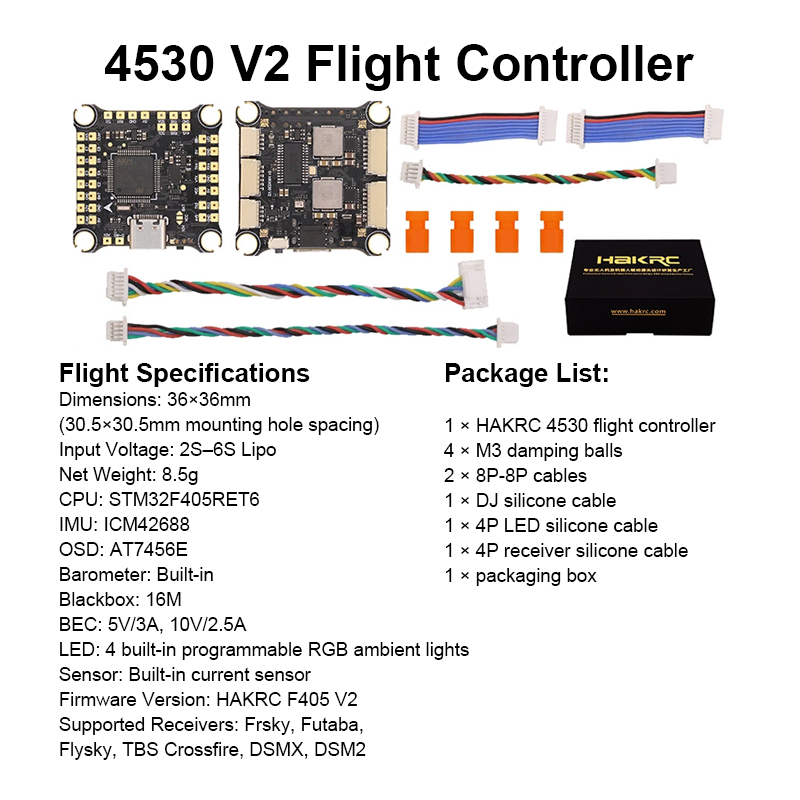

F405 Flight Controller Parameters：

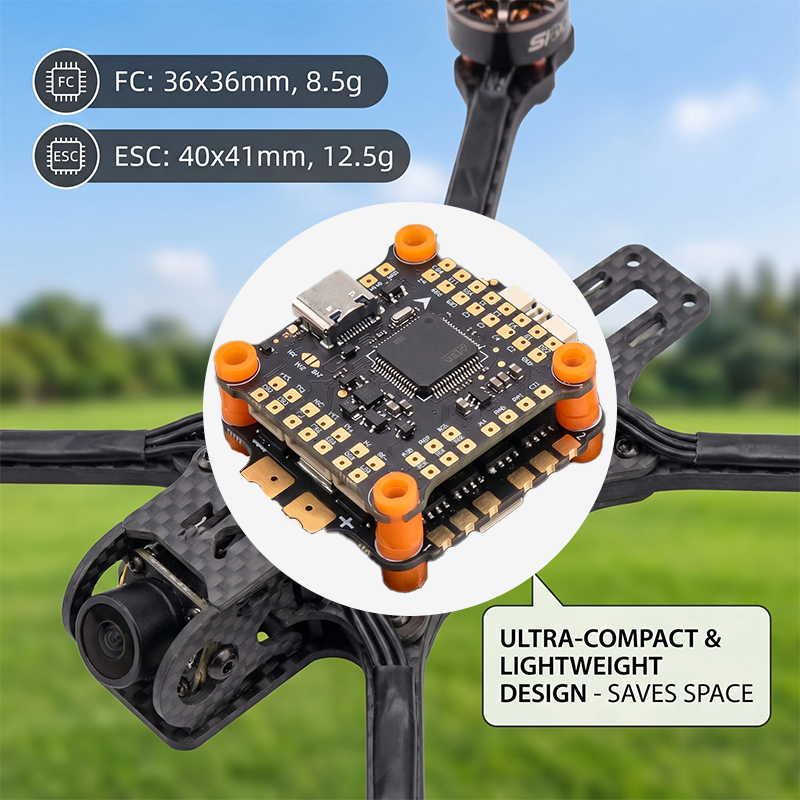

Size: 36*36mm
Mounting Holes: 30.5*30.5mm
Weight: 8.5g
CPU: STM32F405RGT6
IMU: ICM42688
OSD: AT7456E
BEC: 5V/3A; 10V/2.5A
Input Voltage: 2-6S Lipo
Flight Controller Firmware: F405V2

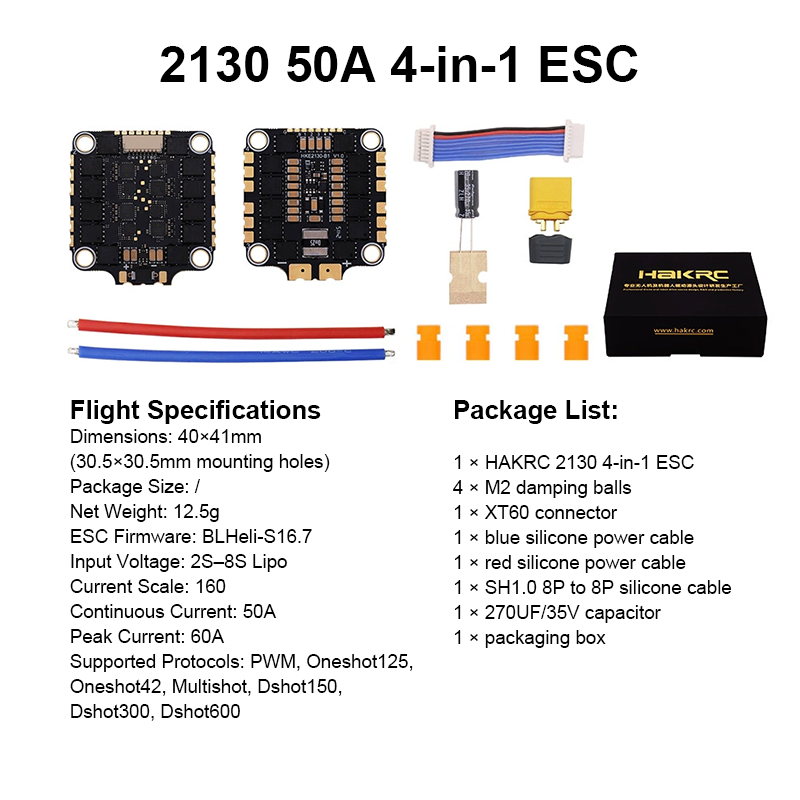

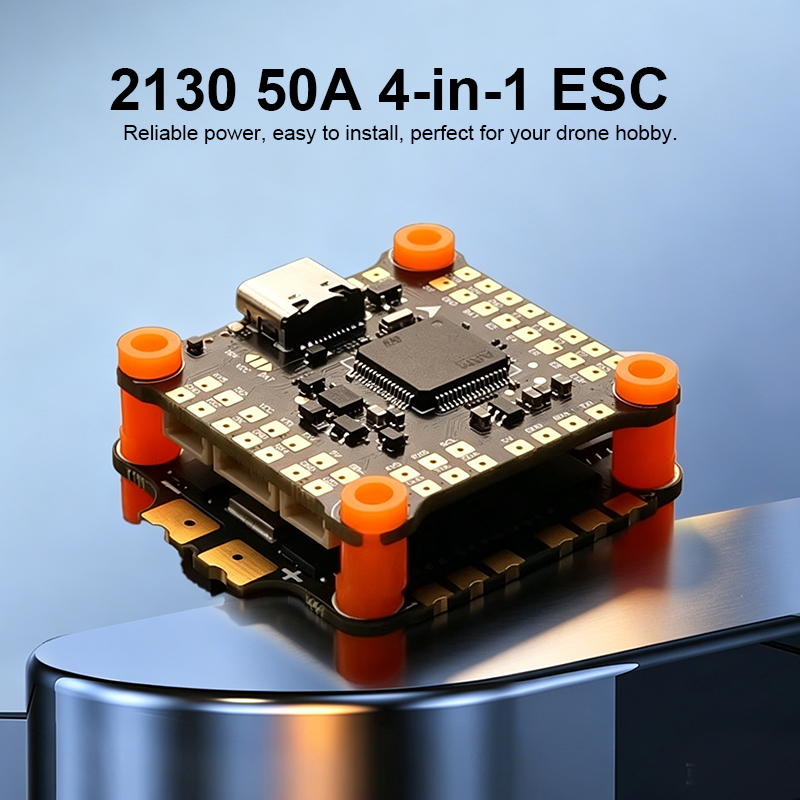

50A 4in1 ESC Parameters：
Size: 40*41mm
Mounting Holes: 30.5*30.5mm
Weight: 12.5g
Input Voltage: 2-8S Lipo
Continuous Current: 50A
Peak Current: 60A
Brushless ESC Firmware: BLHeli-S16.7
