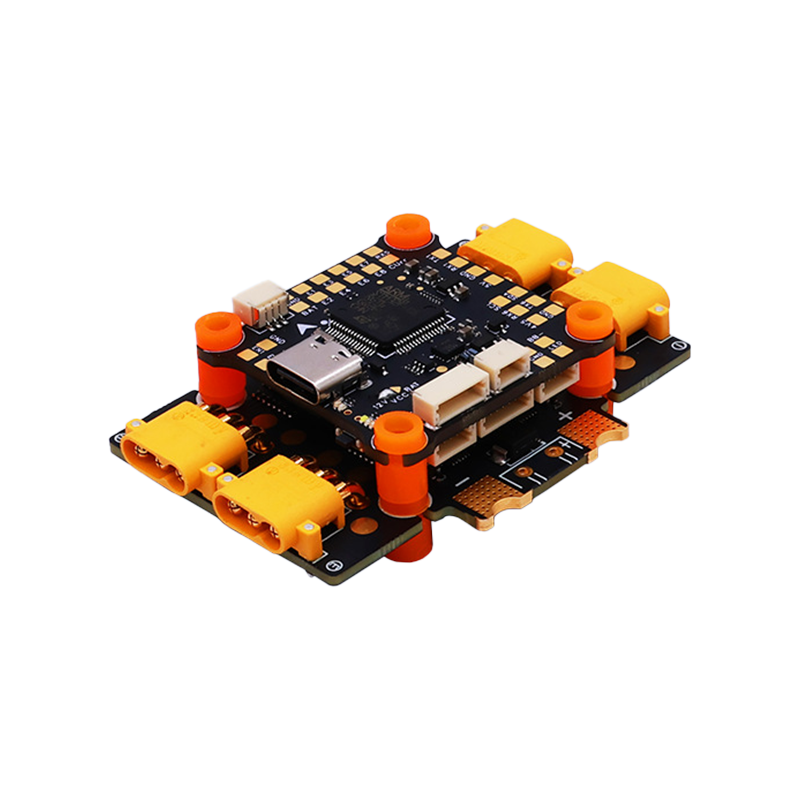

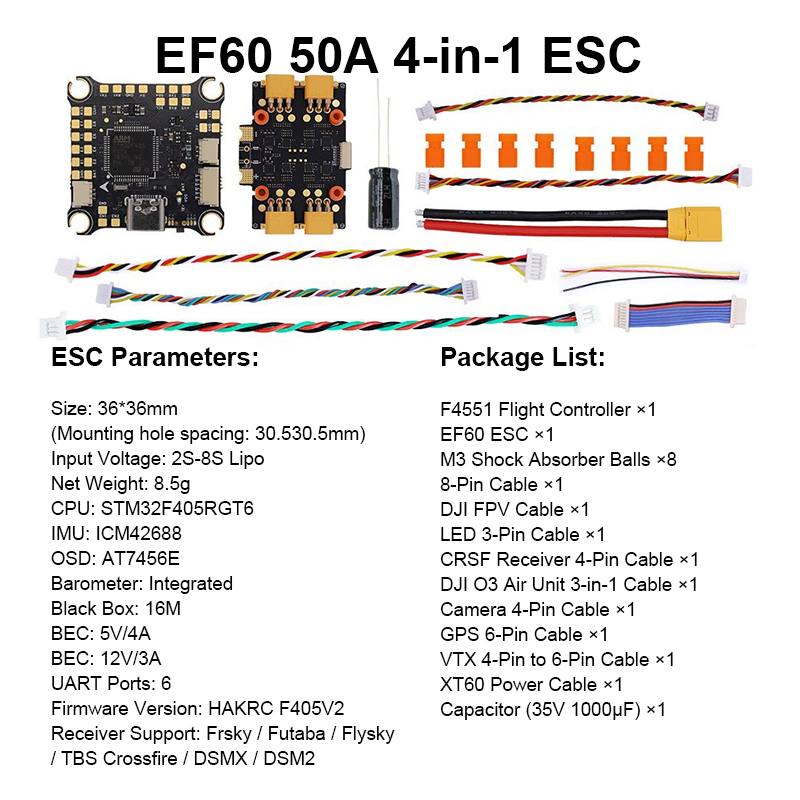

F405 Flight Controller 4in1 ESC with Integrating 5V/12V Dual BEC F405 50A/65A Flight Controller Stack Brushless ESC for FPV Freestyle Drones Parts
No.YQHK033
- The Flight Controller 4in1 ESC Enable Users to Monitor Battery Levels Accurately and Maintain Stable Flight By Precisely Controlling Altitude, Ultimately Enhancing Safety and Control During Flight.
- The Flight Controller for Drone Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
- The Flight Controller Drone Parts Adopts Imported 30V High Current Resistance MOS, with Long Lifespan and Strong Load Capacity, In Addition, F405 Flight Controller Provides 8 Channel Motor Control Signal Output.
- F405 Flight Controller Brushless ESC Uses High-Quality Japanese Murata Capacitors with Strong Filtering Performance Even In Complex Flight Environments.
- Widely Used: The Flight Controller Stack Suitable for Emergency Rescue, Medical First Aid, Industrial Safety Production, Cultural Media, Scientific Exploration, Photographer, and Drone Racing.
(0 Reviews)
0 Sold

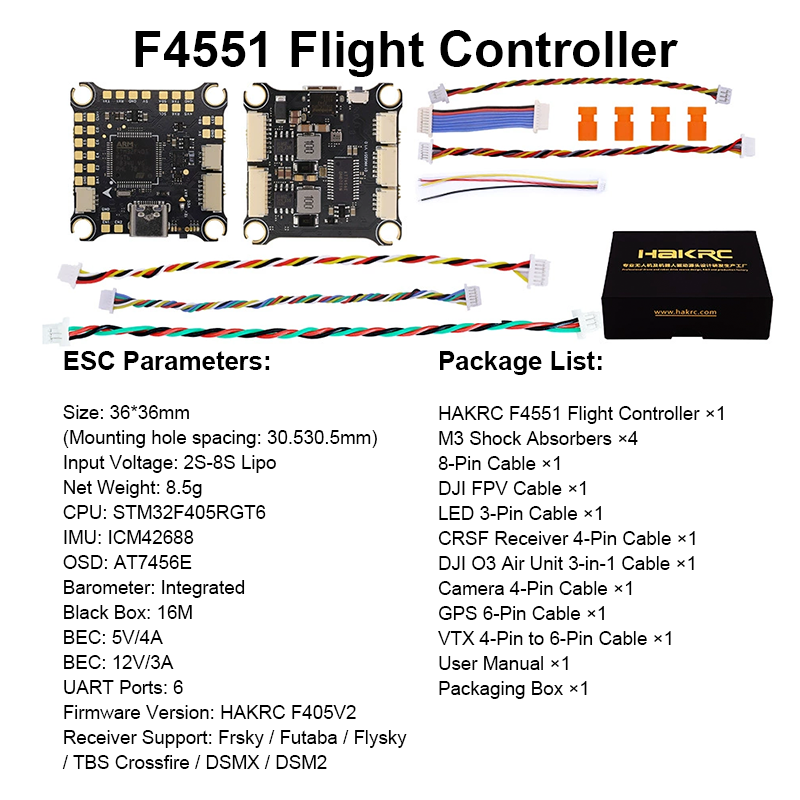

Flight Controller Parameters：
Size: 36*36mm
Mounting Holes: 30.5*30.5mm
Weight: 8.5g
CPU: STM32F405RET6
IMU: ICM42688
OSD: AT7456E
Black Box: 16M
BEC: 5V/4A; 12V/3A
Input Voltage: 2S-8S Lipo
Flight Controller Firmware: F405V2

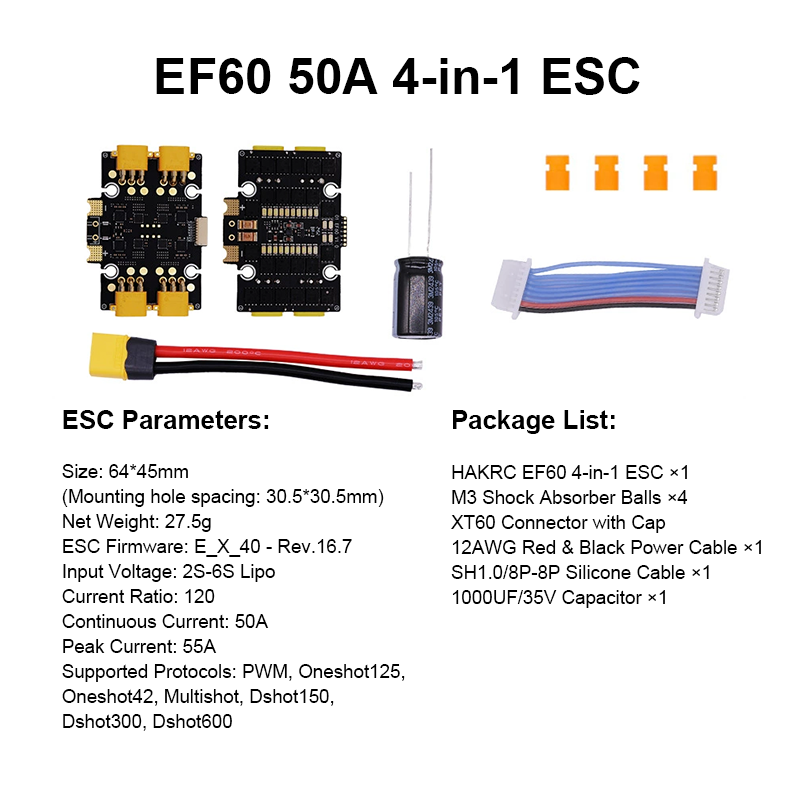

4in1 ESC Parameters：
Size: 64*45mm
Mounting Holes: 30.5*30.5mm
Weight: 27.5g
Input Voltage: 2S-6S Lipo
Continuous Current: 50A/65A
Peak Current: 55A/70A
Brushless ESC Firmware: E_X_40 - Rev. 16.7
