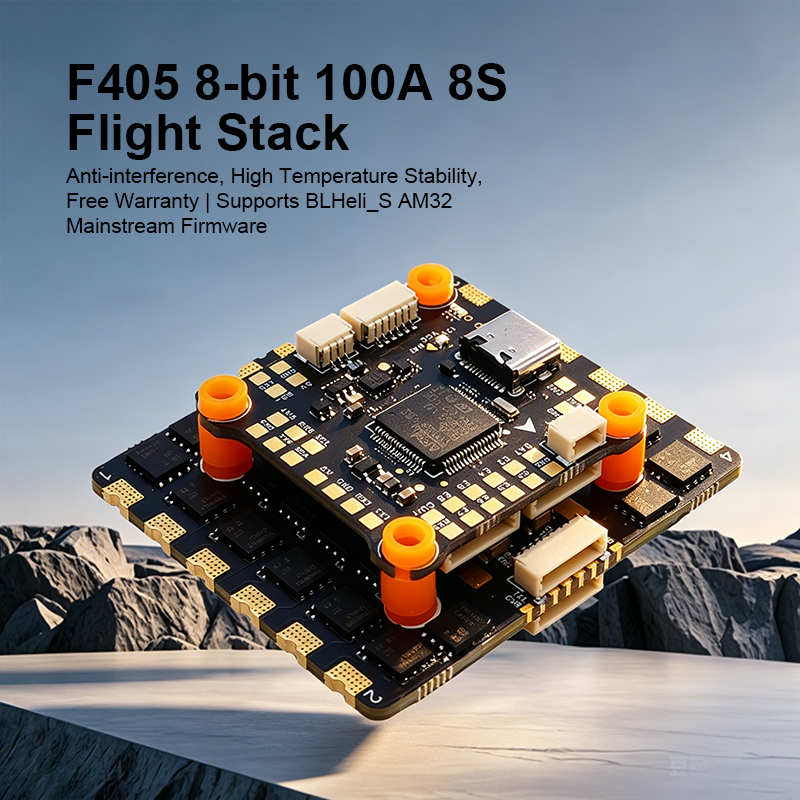

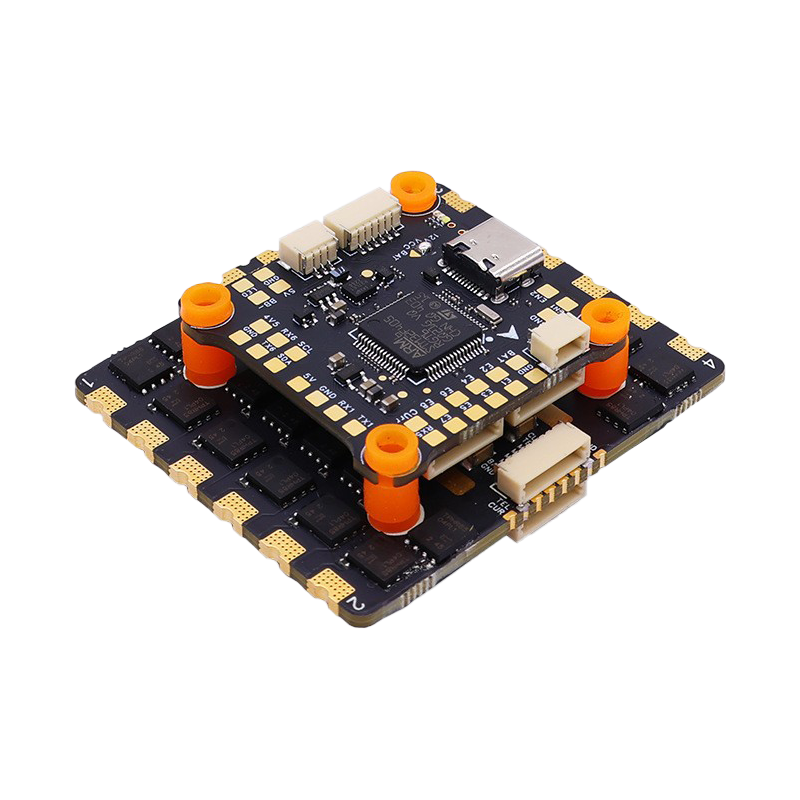

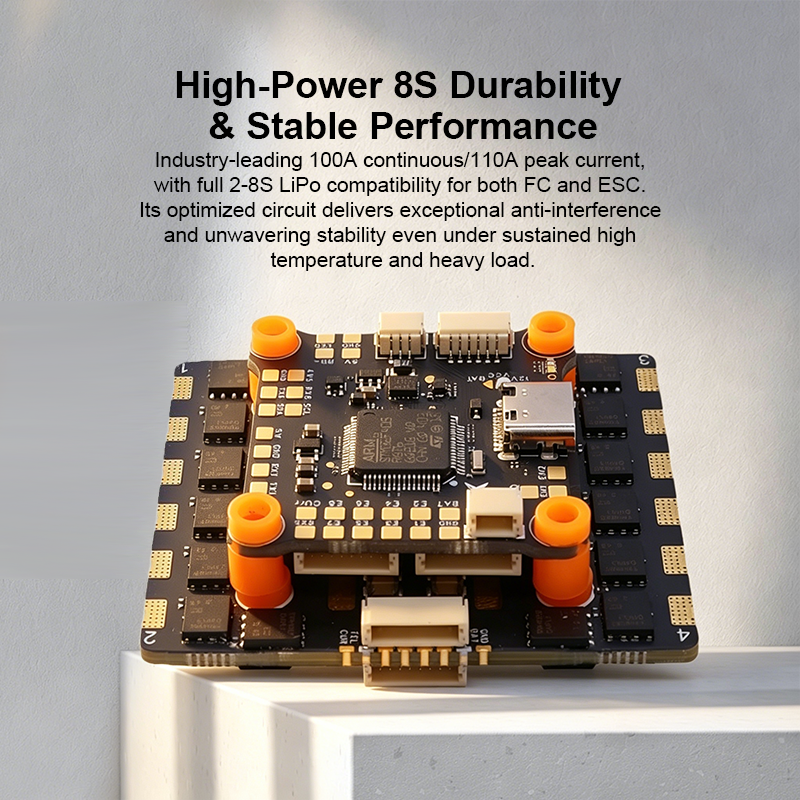

F405 Flight Controller 100A 8S 4in1 ESC Brushless ESC F405 Flight Controller Stack with Integrating 5V/12V Dual BEC for FPV Racing Freestyle Drone Parts
No.YQHK041
- The Flight Controller Stack Advanced Chip Technology, Featuring a High-Performance Processor that Delivers Real-Time Response to Flight Commands. This Ensures Unparalleled Flight Stability and Responsiveness.

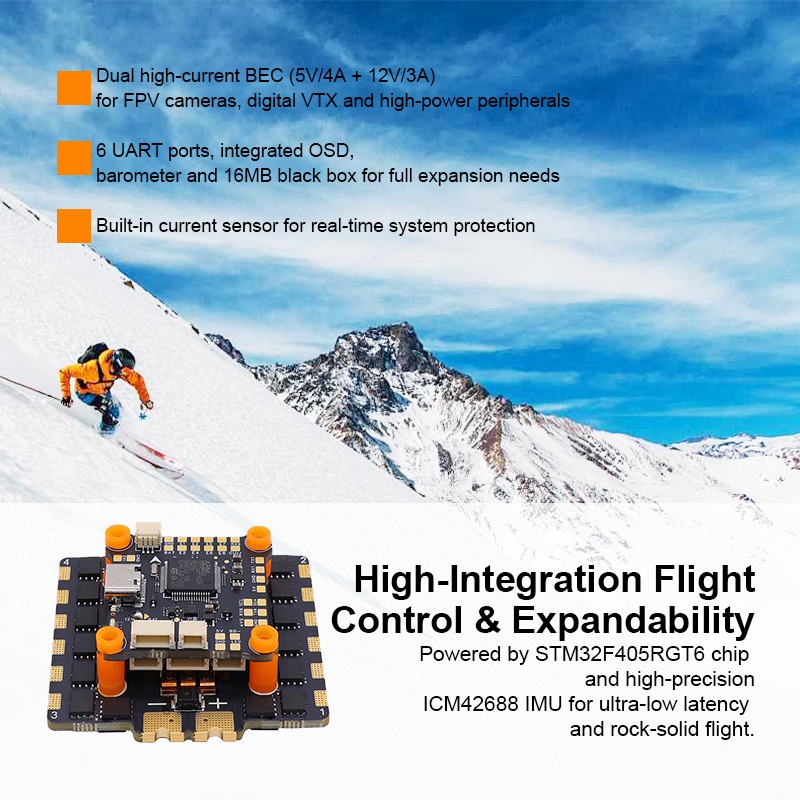

- High Performance Flight Controller for Drone Integrating 5V/12V Dual BEC, 12VBEC can Provide Independent Power to the VTX Through the USER1 Control Switch to Ensure Stable Operation.
- The Flight Controller Drone Parts Adopts Imported 40V High Current Resistance MOS, Offering a Long Lifespan and Strong Load Capacity, While the Flight Controller Stack Uses High-Quality Japanese Murata Capacitors that Deliver Strong Filtering Performance Even In Complex Flight Environments.
- The 4in1 ESC Brushless ESC Adopts a Dual Pad Design, with Metallized Edges on Both Pads, Stronger Overcurrent Capability and Better Heat Dissipation, The Flight Controller Drone Parts Ensuring you Avoid Pad Detachment During Use, Making It Easier Than Ever to Set Up and Configure Your Flight Controller.
(0 Reviews)
0 Sold

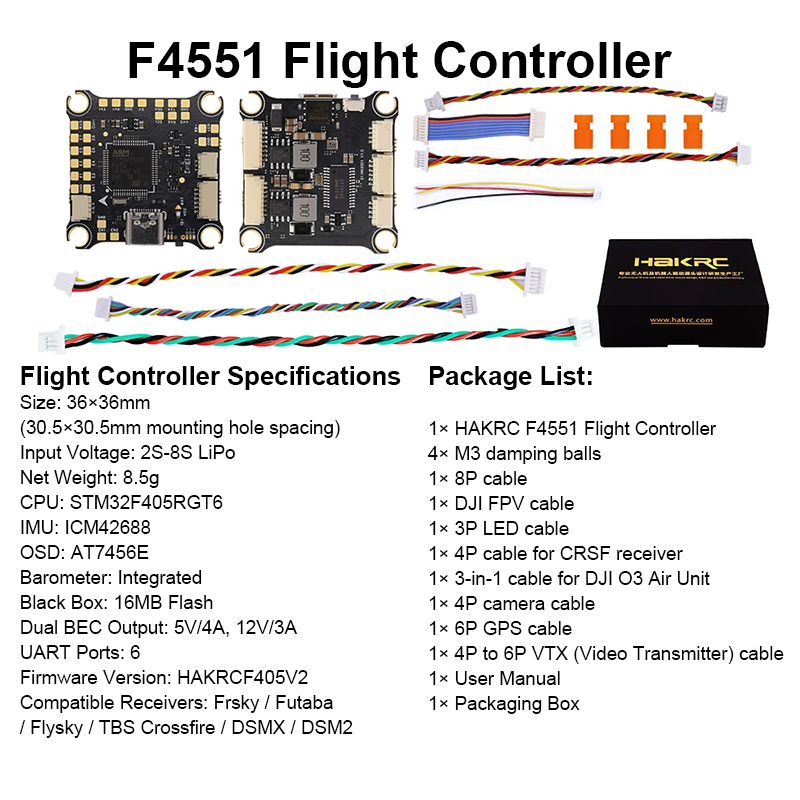

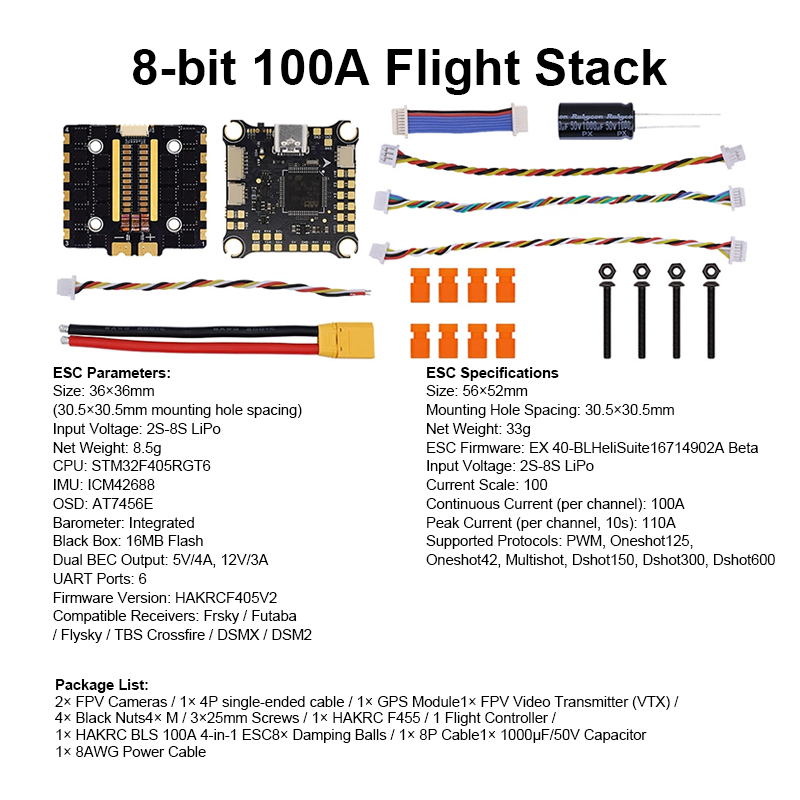

F405 Flight Controller Parameters：
Size: 36*36mm
Mounting Holes: 30.5*30.5mm
Weight: 8.5g
CPU: STM32F405RET6
IMU: ICM42688
OSD: AT7456E
Black Box: 16M
BEC: 5V/4A; 12V/3A
Input Voltage: 2-8S Lipo
F405 Flight Controller Firmware: F405V2

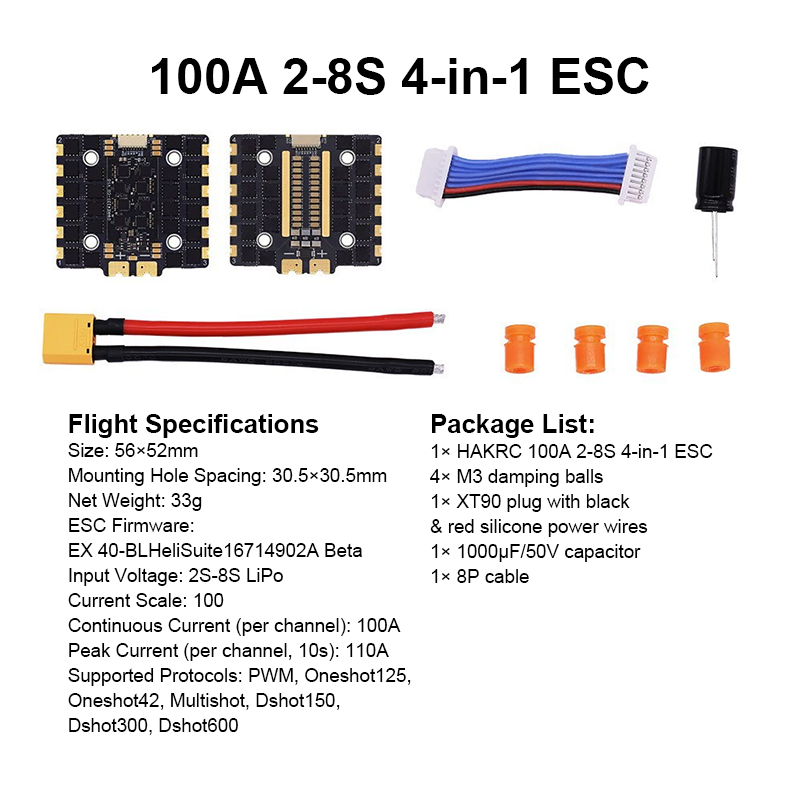

4in1 ESC Parameters：
Size: 56*52mm
Weight: 33g
Input Voltage: 2-8S Lipo
Continuous Current: 100A
Peak Current: 110A
Brushless ESC Firmware: BLHeliSuite16714902A_Beta/AT4G-Rev.32.9-MUIti
